Skip to content | HHC68A series | ||||

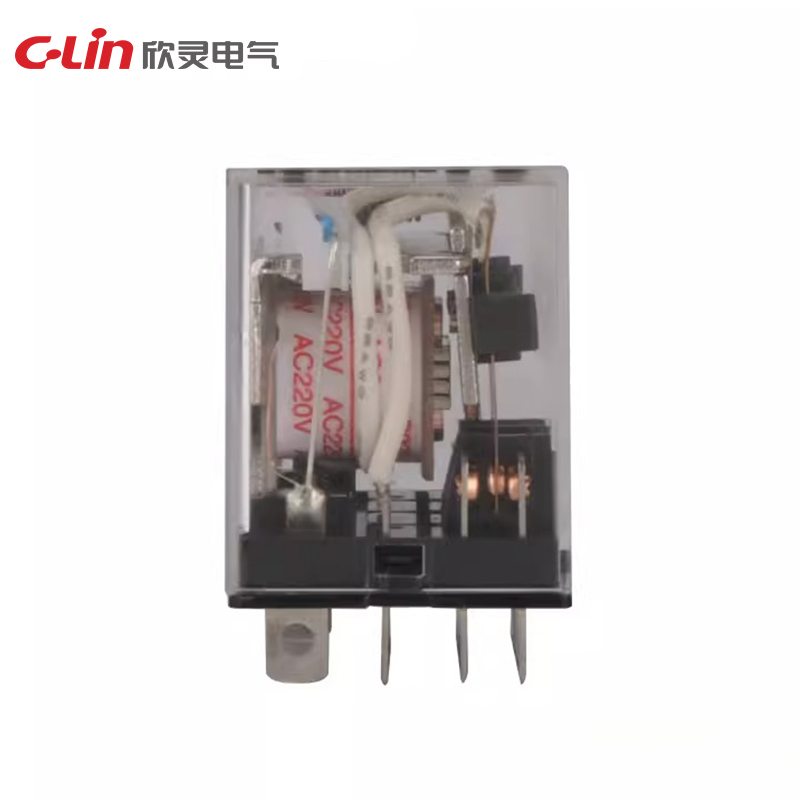

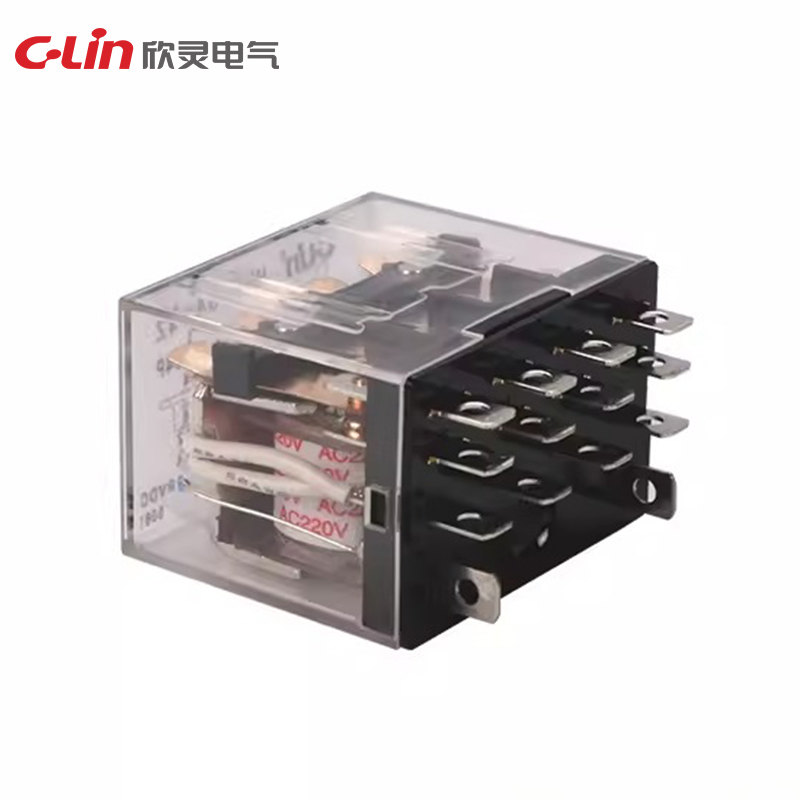

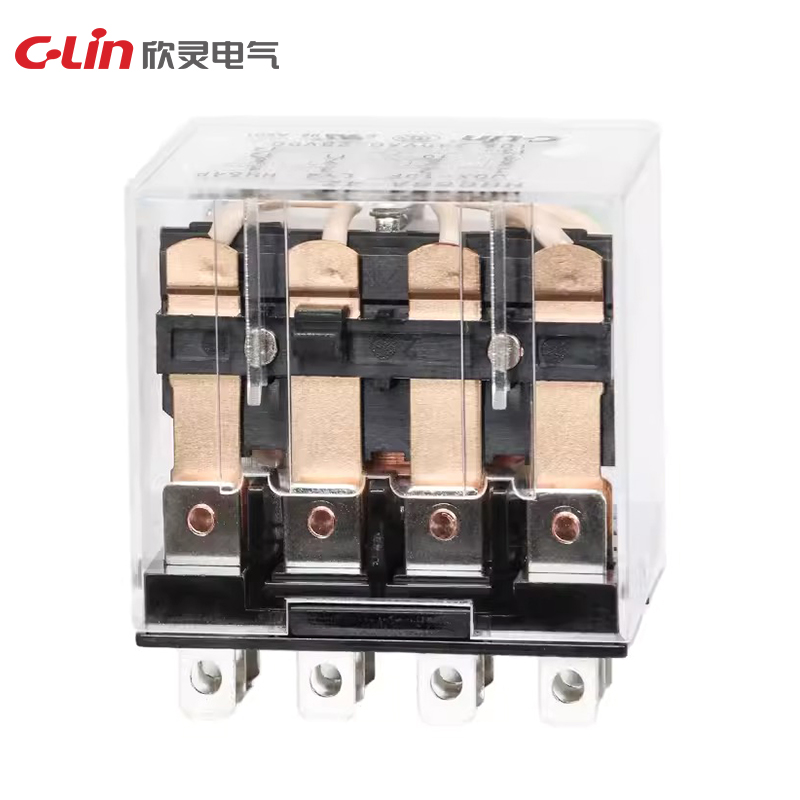

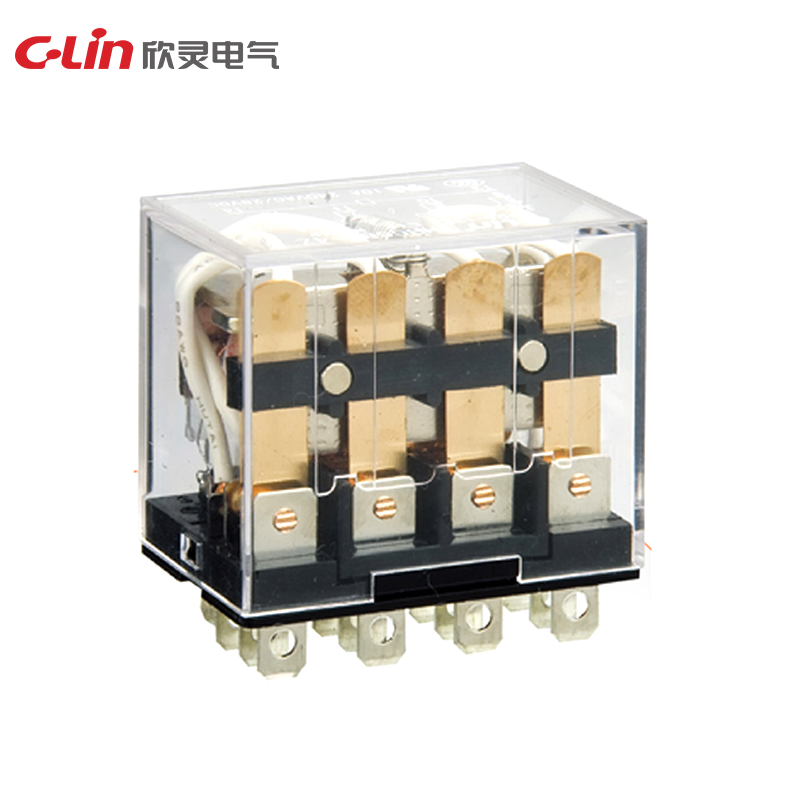

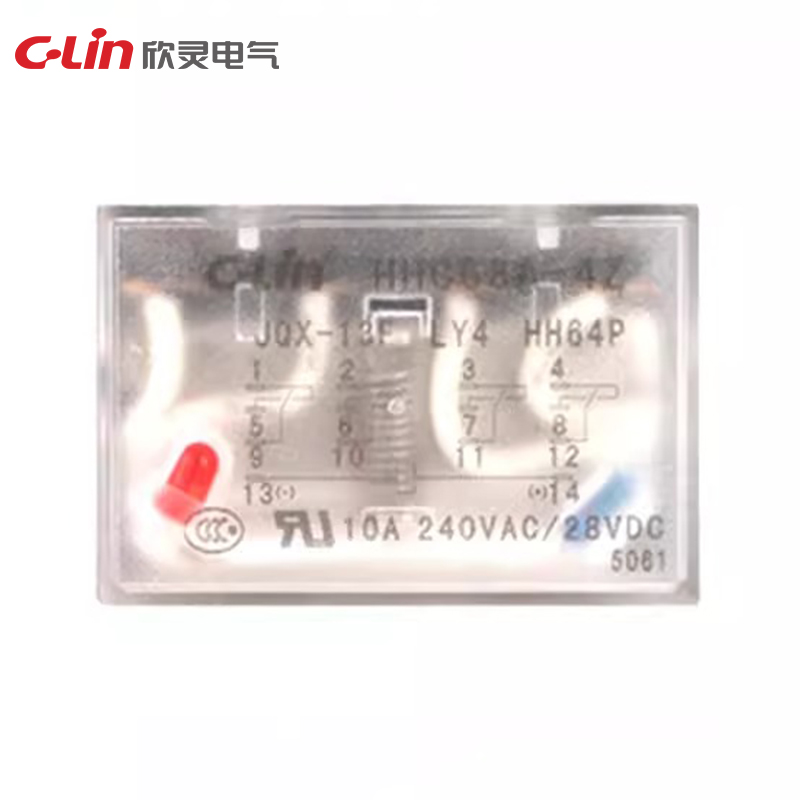

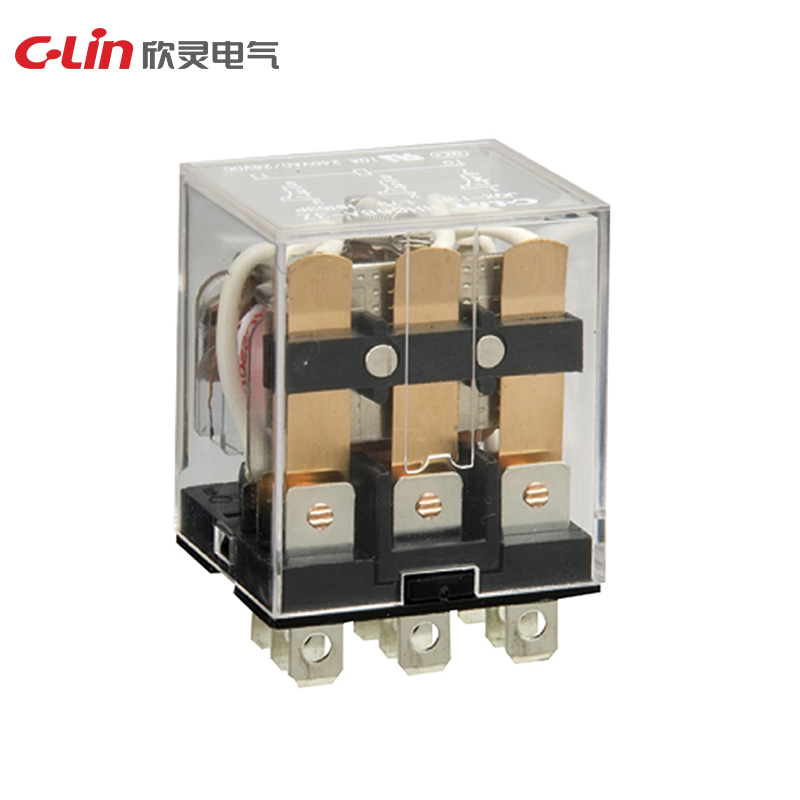

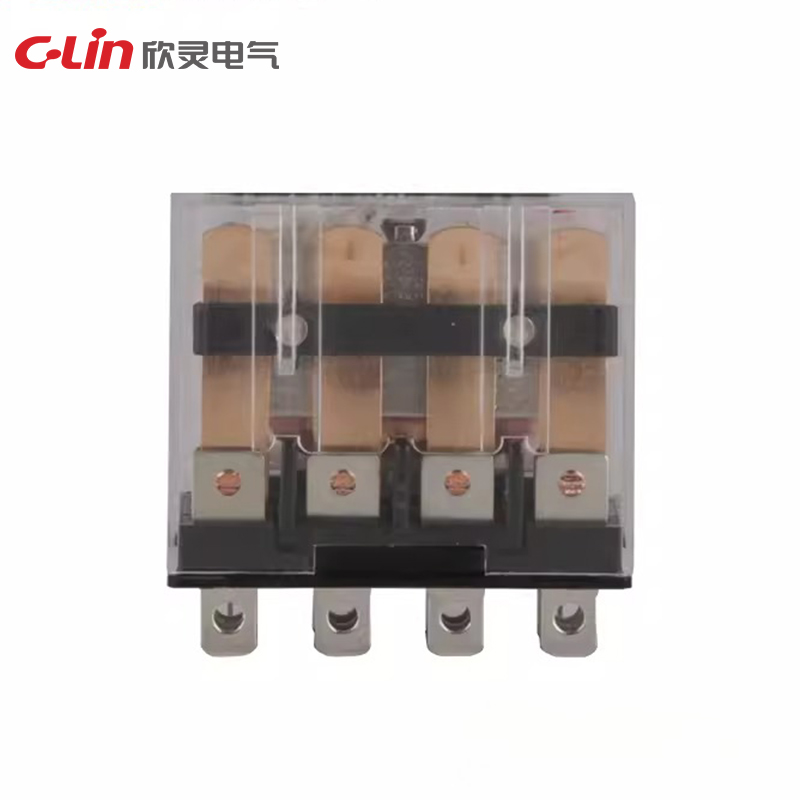

| Model | HHC68A-1Z (JQX-13F/1Z,LY1) | HHC68A-2Z (JQX-13F/2Z,LY2) | HHC68A-3Z (JQX-13F/3Z,LY3) | HHC68A-4Z (JQX-13F/4Z,LY4) |
| Contact load | 15A/240VAC 28VDC | 12A/240VAC 28VDC | ||
| Contact form | 1Z: 1 set NO/NC switching, 2Z: 2 sets NO/NC switching, 3Z: 3 sets NO/NC switching, 4Z: 4 sets NO/NC switching | |||
| Coil voltage | DC6V-220V, AC6V-380V | |||
| Coil power | DC: 0.9W, AC: 1.2VA | |||
| Contact resistance | ≤100mΩ | |||
| Contact material | Silver alloy | |||
| Insulation resistance | ≥100MΩ(500VDC) | |||
| HHC68AUL series | |
| Model | HHC68AUL-2Z |
| Contact load | 12A/240VAC 28VDC |
| Contact form | 2H, 2D, 2Z |
| Coil voltage | DC6V-220V, AC6V-380V |
| Coil power | DC: 0.9W, AC: 1.2VA |
| Contact resistance | ≤100mΩ |
| Contact material | Silver alloy |
| Insulation resistance | ≥100MΩ(500VDC) |
| HHC68AVL series | |
| Model | HHC68AVL-2Z (JQX-13F/2Z) |
| Contact load | 12A/240VAC 28VDC |
| Contact form | 2H, 2D, 2Z |
| Coil voltage | DC6V-220V, AC6V-380V |
| Coil power | DC: 0.9W, AC: 1.2VA |
| Contact resistance | ≤100mΩ |
| Contact material | Silver alloy |
| Insulation resistance | ≥100MΩ(500VDC) |
| HHC68AZL series | ||
| Model | HHC68AZL-2Z (JQX-13FZ/2Z) | HHC68AZL-4Z (JQX-13F/4Z,LY4) |
| Contact load | 12A/240VAC 28VDC | |
| Contact form | 2H, 2D, 2Z | 4H, 4D, 4Z |
| Coil voltage | DC6V-220V, AC6V-380V | |
| Coil power | DC: 0.9W, AC: 1.2VA | DC: 1.5W, AC: 3.0VA |
| Contact resistance | ≤100mΩ | |
| Contact material | Silver alloy | |
| Insulation resistance | ≥100MΩ(500VDC) | |
