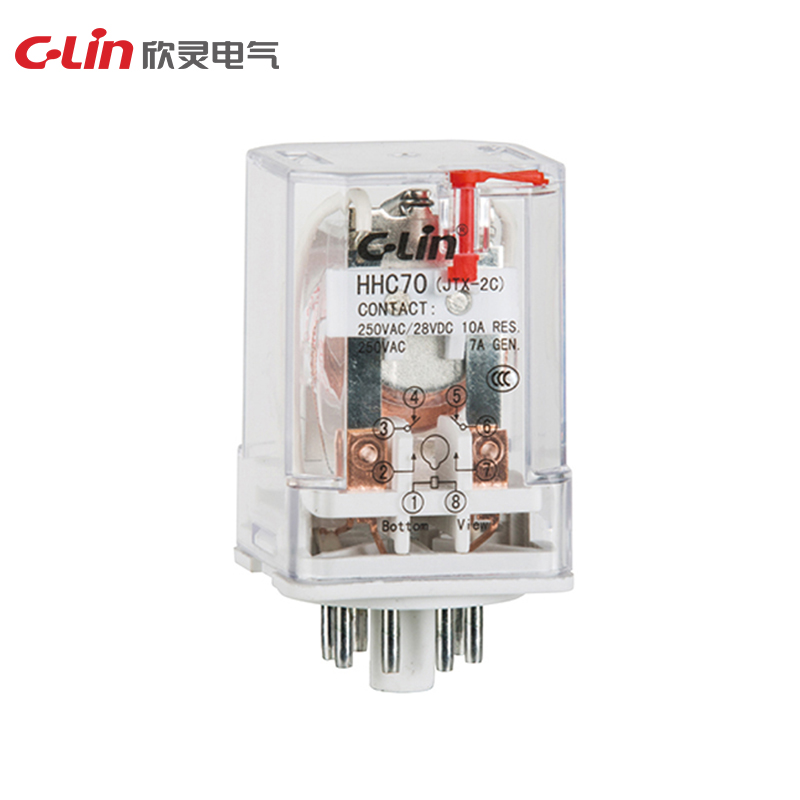

Miniature Electromagnetic Relay HHC70A Series

MOQ : 200

Contact type: 2H, 2D, 2Z
Contact load: 10A/240VAC 28VDC
Coil power: DC: 1.8W; AC: 2.7VA
Coil specifications: DC: 6V-220V; AC: 6V-380V

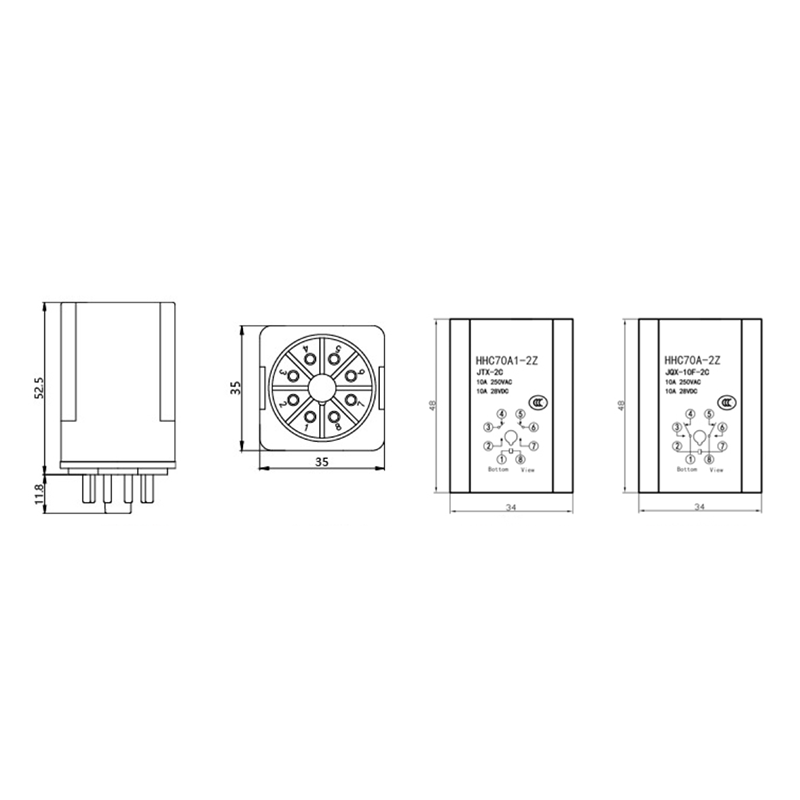

Dimensions: 35×35×53mm

Contact type: 3H, 3D, 3Z
Contact load: 10A/240VAC 28VDC
Coil power: DC: 1.8W; AC: 2.7VA
Coil specifications: DC: 6V-220V; AC: 6V-380V
Dimensions: 35×35×53mm

HHC70A-2Z

Model	HHC70A-2Z(JQX-10F-2Z)
Contact load	10A/240VAC 28VDC
Contact form	2Z: 2 sets NO/NC switching, 3Z: 3 sets NO/NC switching
Coil voltage	DC6V-220V, AC6V-380V
Coil power	DC: 1.8W, AC: 2.7VA
Contact resistance	≤100mΩ (6VDC 1A)
Contact material	Silver alloy
Insulation resistance	≥100MΩ(500VDC)

HHC70A-3Z

Model	HHC70A-3Z(JQX-10F-3Z)
Contact load	10A/240VAC 28VDC
Contact form	2Z: 2 sets NO/NC switching, 3Z: 3 sets NO/NC switching
Coil voltage	DC6V-220V, AC6V-380V
Coil power	DC: 1.8W, AC: 2.7VA
Contact resistance	≤100mΩ (6VDC 1A)
Contact material	Silver alloy
Insulation resistance	≥100MΩ(500VDC)
