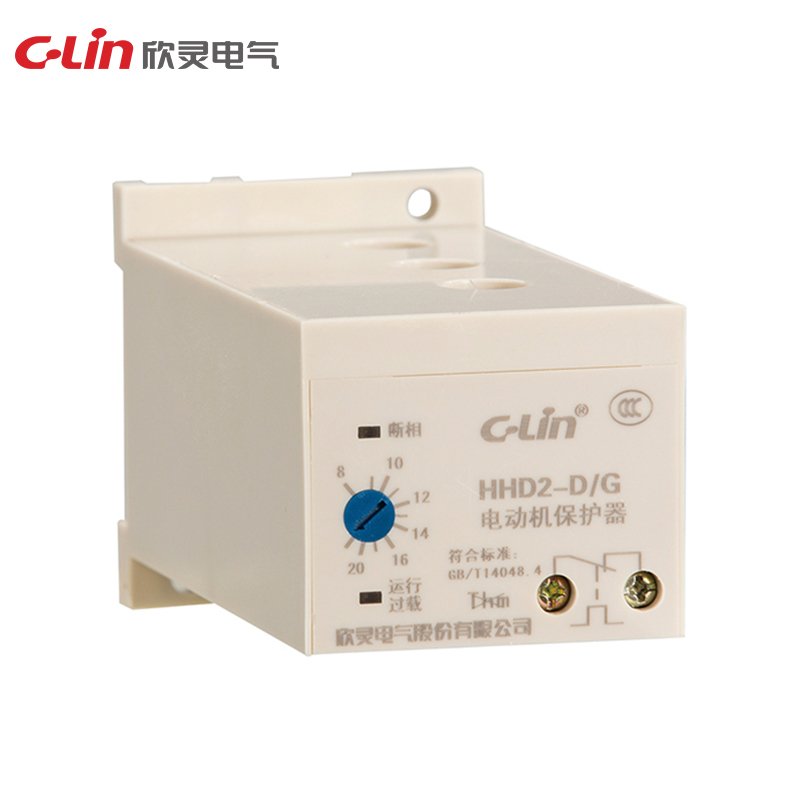

Current range: -A/G: 1~2.5A -B/G: 2~5A -C/G: 4~10A
-D/G: 8~20A -E/G: 16~40A -F/G: 32~80A
Protection function: phase failure, overload
Setting method: static quantitative setting of potentiometer
Display method: LED indicates working status
Contact form: (solid-state switch) normally closed contact
Contact capacity: 1A AC380V (resistive)
Control circuit: working voltage AC220V and AC380V are common
Installation method: compatible with device type and guide rail type

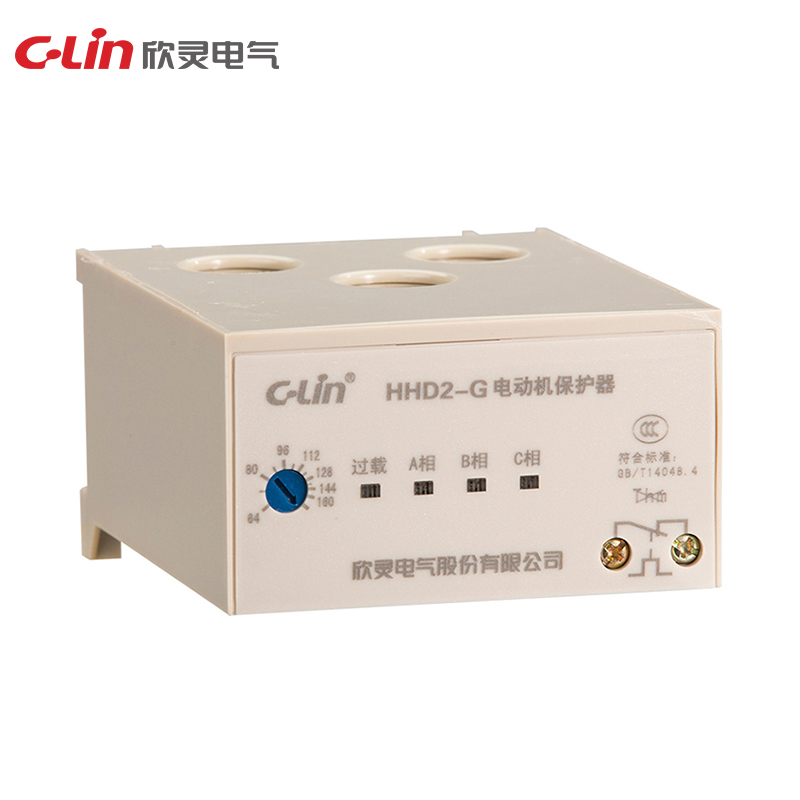

Current range: -T: 32-80A -G: 64~160A
Protection function: phase failure, overload
Setting method: static quantitative setting of potentiometer
Display method: LED indicates working status
Contact form: (solid-state switch) normally closed contact
Contact capacity: 1A AC380V (resistive)
Control circuit working voltage: AC220V and AC380V are common
Dimensions: 84×57.5×100mm
Installation method: compatible with device type and guide rail type
HHD2 series | ||||||||||||||
Model | HHD2-A | HHD2-B | HHD2-C | HHD2-D | HHD2-E | HHD2-F | HHD2-T | HHD2-G | HHD2-A/G | HHD2-B/G | HHD2-C/G | HHD2-D/G | HHD2-E/G | HHD2-F/G |
Current range | 1~2.5A | 2~5A | 4~10A | 8~20A | 16~40A | 32~80A | 32~80A | 64~160A | 1~2.5A | 2~5A | 4~10A | 8~40A | 16~40A | 32~80A |
Protection function | Phase failure, overload | |||||||||||||
Setting mode | Static quantization setting of potentiometer | |||||||||||||
Display mode | LED indicates working status | |||||||||||||
Contact form | (solid-state switch) NC contact | |||||||||||||
Contact capacity | 1A AC380V(resistive) | |||||||||||||
Control circuit operating voltage | AC220V and AC380V are compatible | |||||||||||||
Dimension | 76×43×74mm | 84×57.5×100mm | 53×64×104mm | |||||||||||
Installation method | Screw mounting type | Screw mounting type and DIN rail type compatible |
