Contact type: 1H, 1D, 1Z, 2H, 2D, 2Z
Contact load: 30A/240VAC 28VDC
Coil power: DC: 2.0W; AC: 4.0VA
Coil specifications: DC: 6V-220V; AC: 6V-380V
Dimensions: 53×46×41.3mm
Contact type: 1H, 1D, 1Z, 2H, 2D, 2Z
Contact load: 30A/240VAC 28VDC
Coil power: DC: 2.0W; AC: 4.0VA
Coil specifications: DC: 6V-220V; AC: 6V-380V

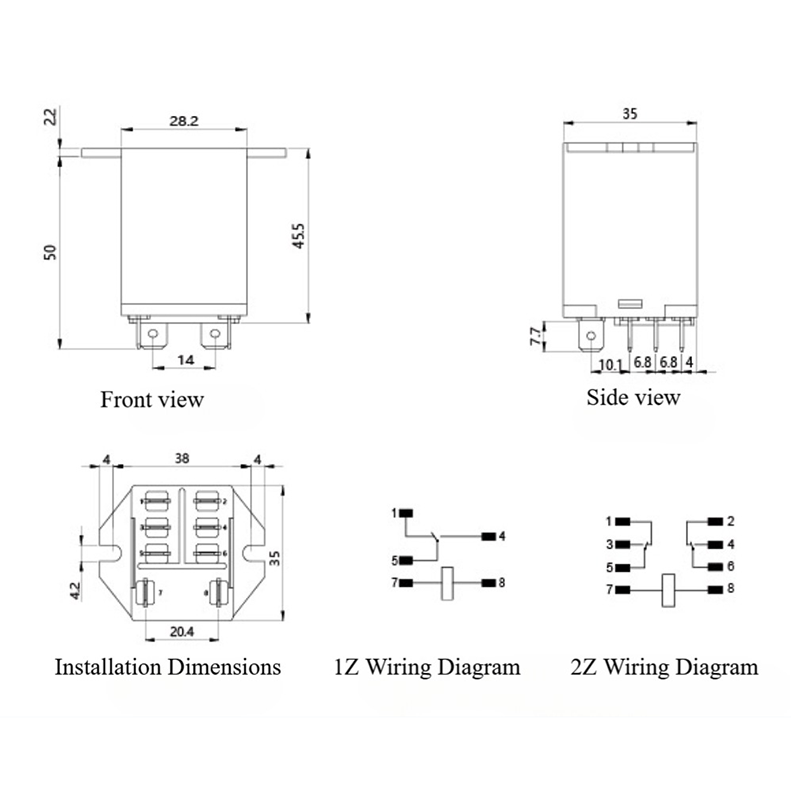

Dimensions: 51.5×35.6×42mm

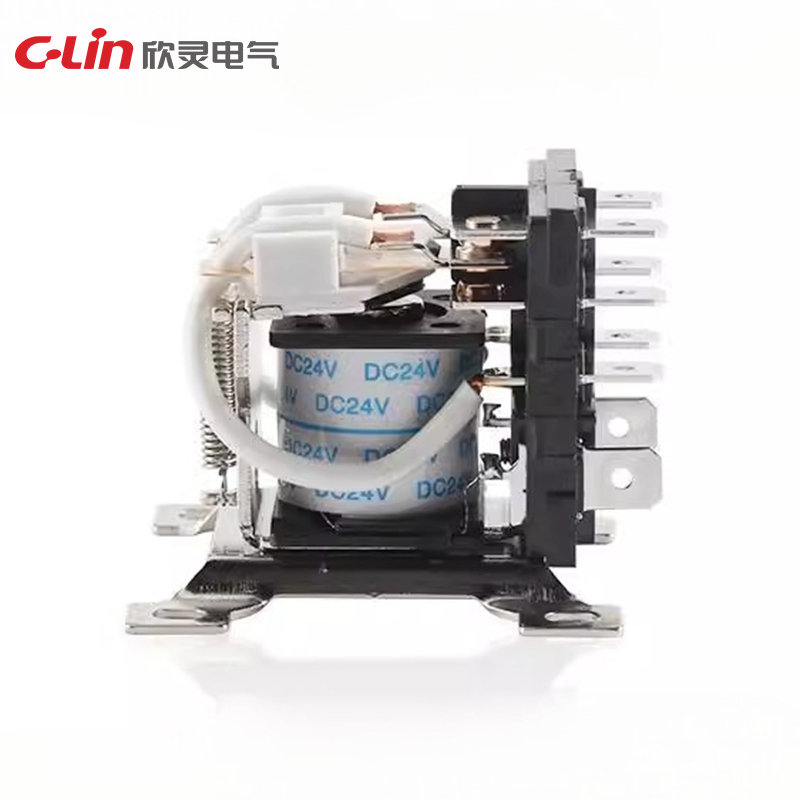

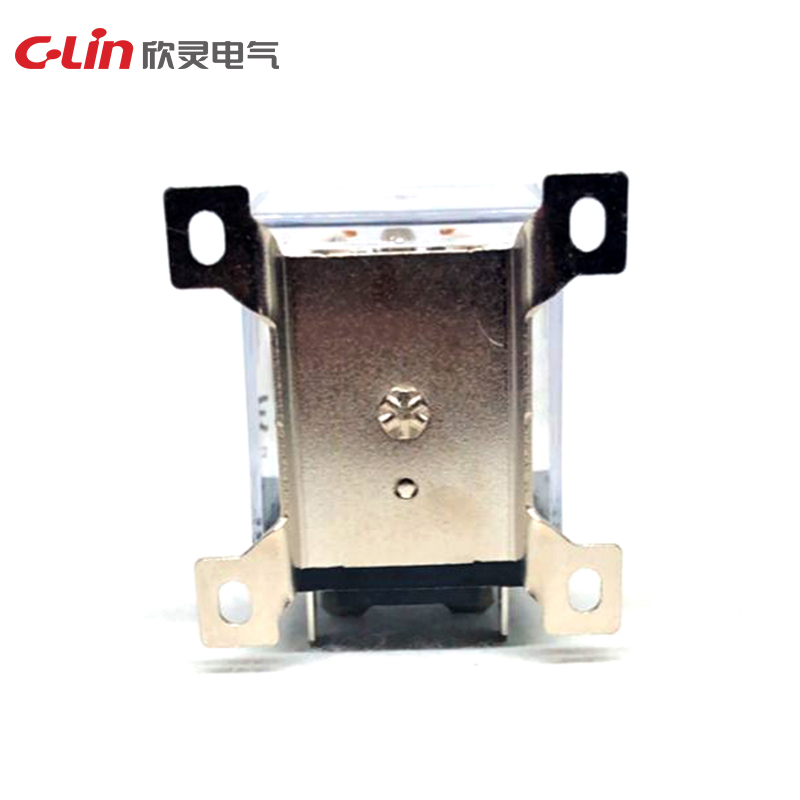

HHC71A series | ||
Model | HHC71A-2Z(JQX-30F-2Z) | HHC71A1-2Z(JQX-30F-2Z) |
Contact load | 30A/240VAC 28VDC | |
Contact form | 2Z: 2 sets NO/NC switching | |
Coil voltage | DC6V-220V, AC6V-380V | |
Coil power | DC: 2W, AC: 4VA | |
Contact resistance | ≤100mΩ (6VDC 1A) | |
Contact material | Silver alloy | |
Insulation resistance | ≥100MΩ(500VDC) |
