Miniature Electromagnetic Relay HHC71F Series

MOQ : 150

HHC71F-1Z

HHC71F-2Z

HHC71FS-1Z

Contact type: 1H, 1D, 1Z
Contact load: 100A/240VAC 28VDC
Coil power: DC: 2.0W; AC: 10.0VA
Coil specifications: DC: 6V-220V; AC: 6V-380V
Dimensions: 67×67×60.5mm

Contact type: 2H, 2D, 2Z
Contact load: 80A/240VAC 28VDC
Coil power: DC: 2.0W; AC: 10.0VA
Coil specifications: DC: 6V-220V; AC: 6V-380V
Dimensions: 85×68×65mm

Contact type: 1H, 1D, 1Z
Contact load: 120A/240VAC 28VDC
Coil power: DC: 2.0W; AC: 10.0VA
Coil specifications: DC: 6V-220V; AC: 6V-380V
Dimensions: 67×67×60.5mm

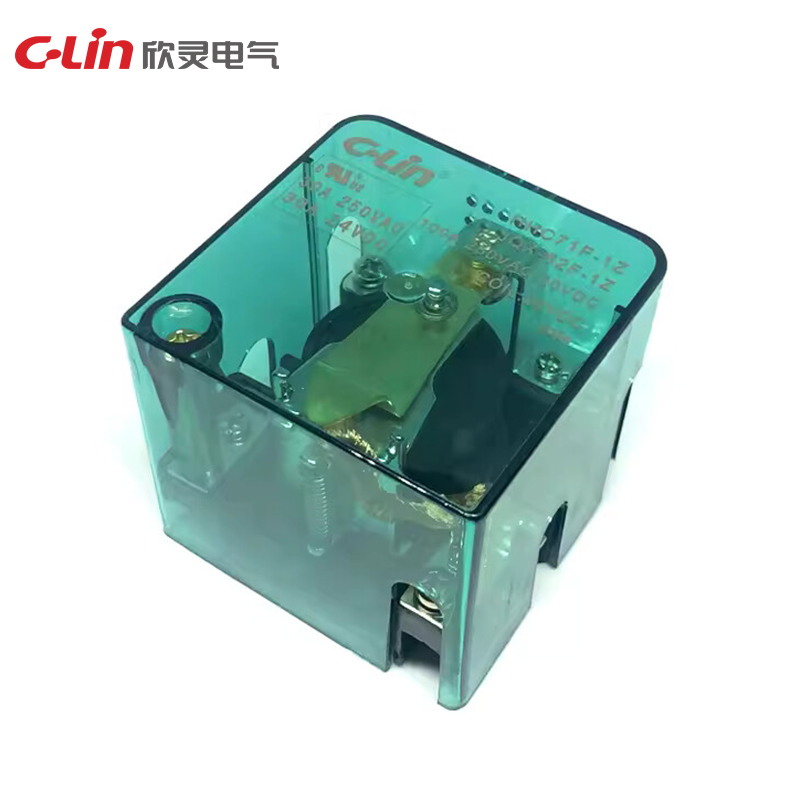

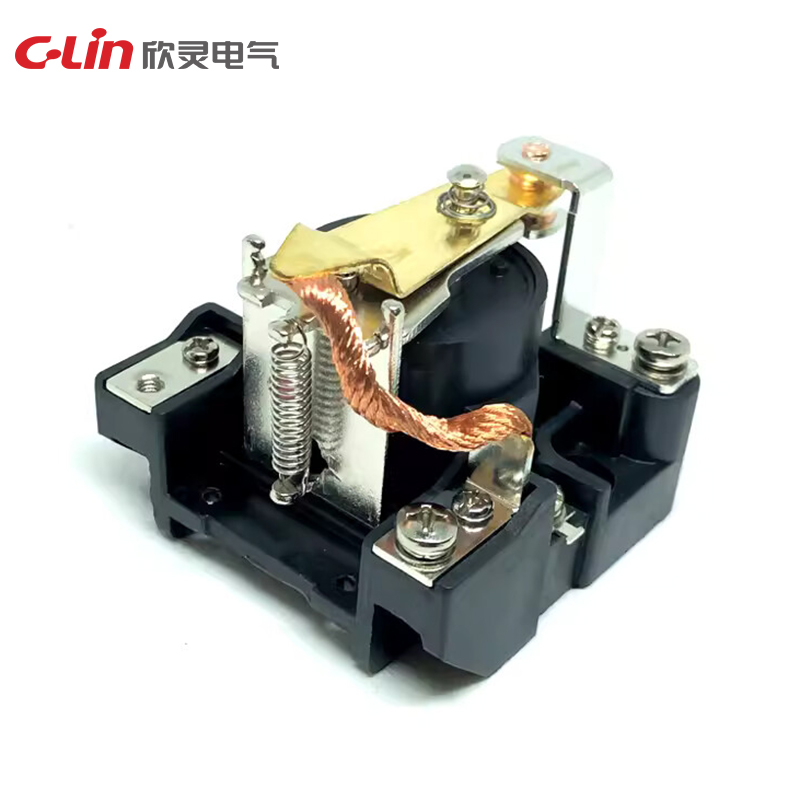

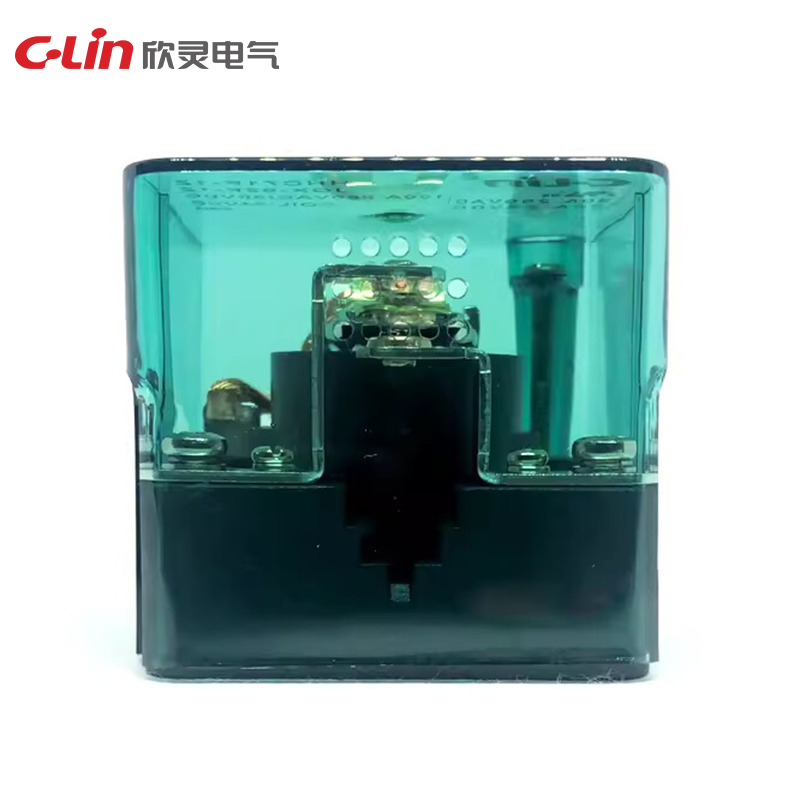

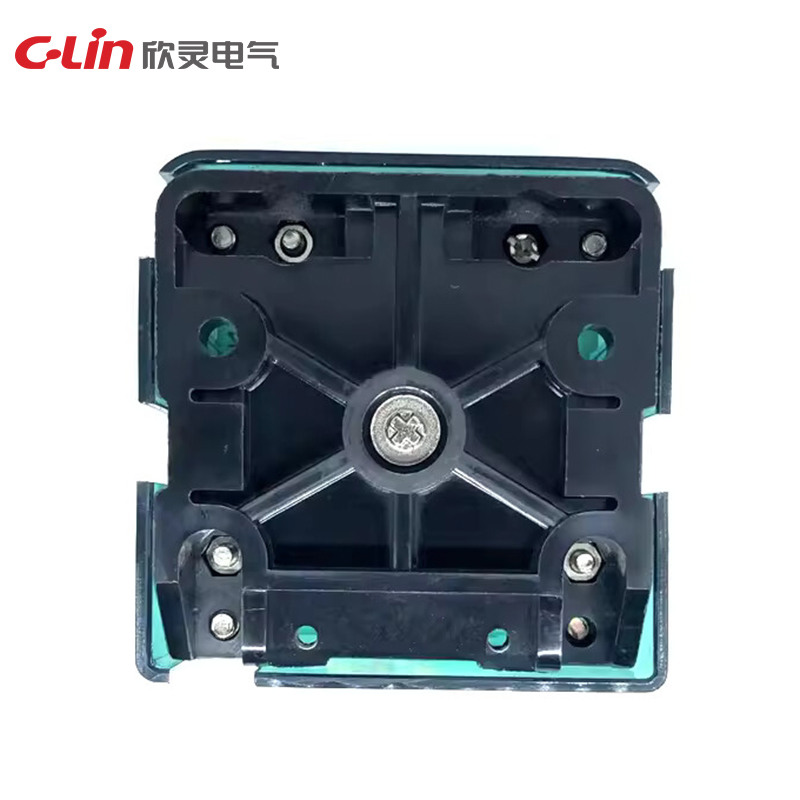

HHC71F-1Z

Model	HHC71F-1Z (JQX-62F-1Z)
Contact load	100A/240VAC 28VDC
Contact form	1Z: 1 set NO/NC switching, 2Z: 2 sets NO/NC switching
Coil voltage	DC6V-220V, AC6V-380V
Coil power	DC: 2.0W, AC: 10.0VA
Contact resistance	≤100mΩ
Contact material	Silver alloy
Insulation resistance	≥200MΩ(500VDC)

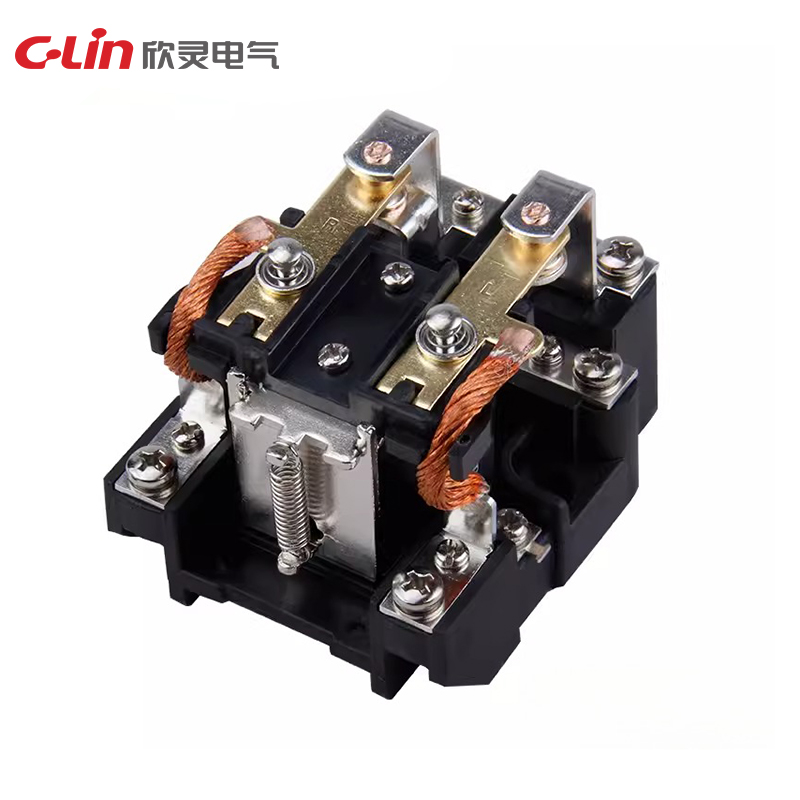

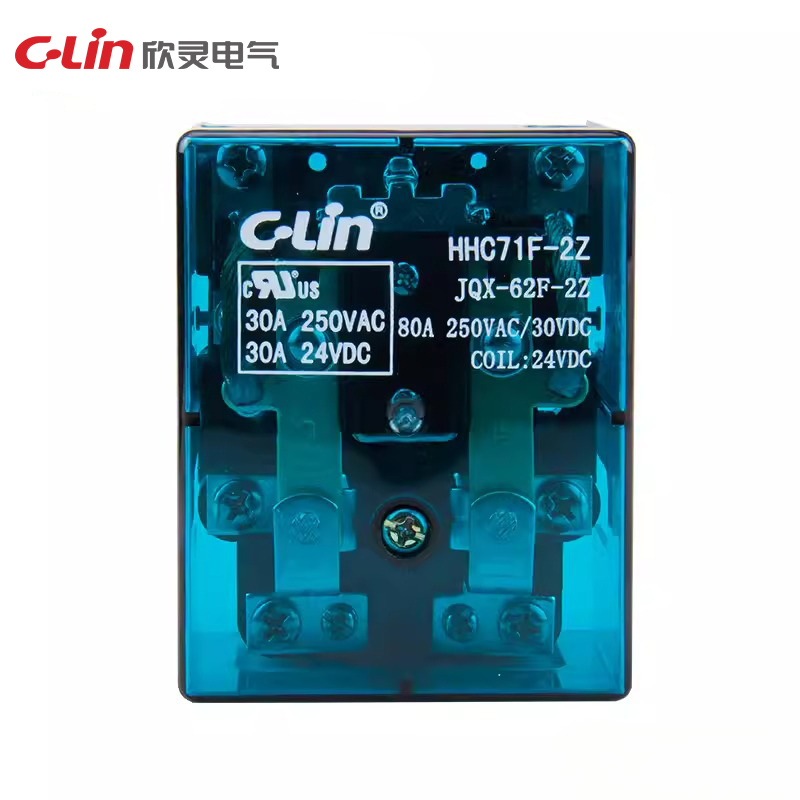

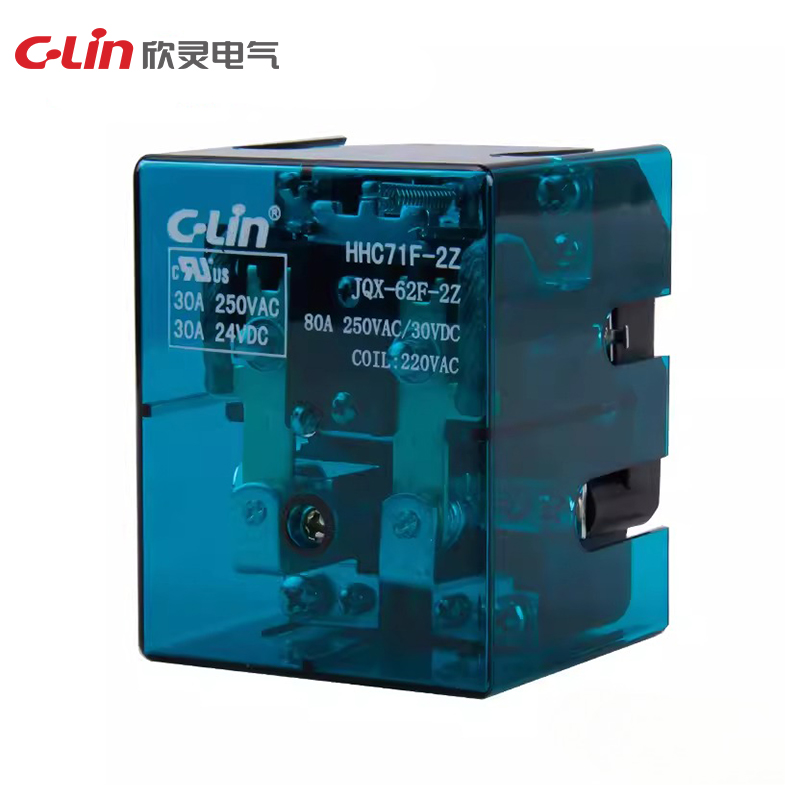

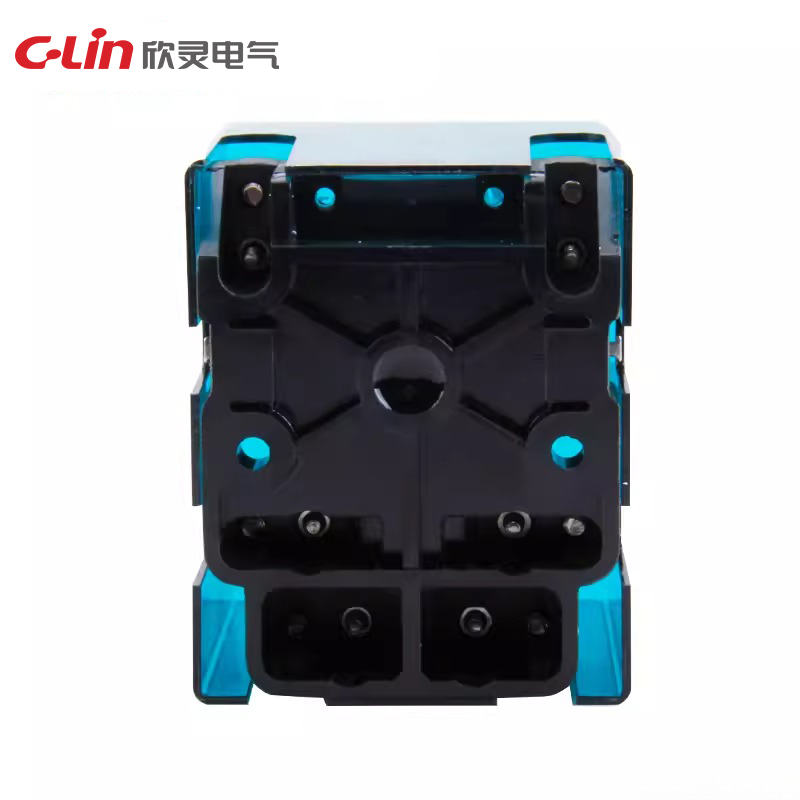

HHC71F-2Z

Model	HHC71F-2Z (JQX-62F-2Z)
Contact load	80A/240VAC 28VDC
Contact form	1Z: 1 set NO/NC switching, 2Z: 2 sets NO/NC switching
Coil voltage	DC6V-220V, AC6V-380V
Coil power	DC: 2.0W, AC: 10.0VA
Contact resistance	≤100mΩ
Contact material	Silver alloy
Insulation resistance	≥200MΩ(500VDC)

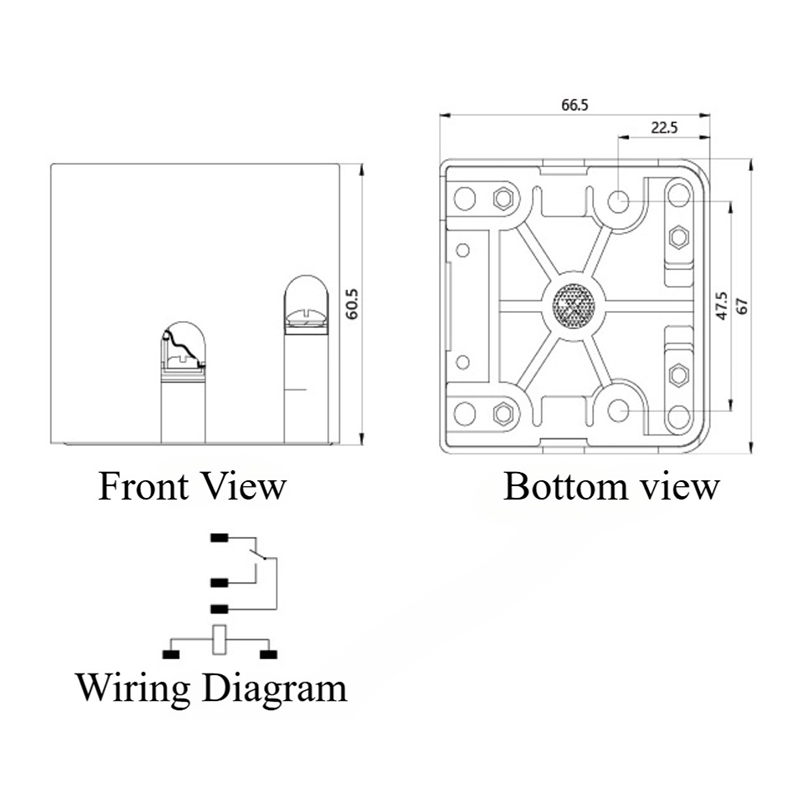

HHC71FS-1Z

Model	HHC71FS-1Z (JQX-62FS-1Z)
Contact load	120A/240VAC 28VDC
Contact form	1Z: 1 set NO/NC switching, 2Z: 2 sets NO/NC switching
Coil voltage	DC6V-220V, AC6V-380V
Coil power	DC: 2.0W, AC: 10.0VA
Contact resistance	≤100mΩ
Contact material	Silver alloy
Insulation resistance	≥200MΩ(500VDC)
