Rated working voltage (Ue): 400V, 690V
Control power supply voltage (Us): AC230V, AC400V
Frame grade rated current (Inm): 45A, 125A
Rated working current (Ie): 1A, 3A, 6A, 12A, 16A, 25A, 32A, 45A, 63A, 80A, 100A, 125A
Ambient temperature: upper limit temperature: +40℃; lower limit temperature: -5℃
Installation environment: altitude not exceeding 2000 meters, no moisture, no corrosive gas.
Number of poles: 3P
Overload protection (delay): power distribution protection, motor protection
Breaking capacity: C: 15kA, Y: 35kA, H: 50kA
Auxiliary contact: 06-3 normally open 2 normally closed +1 fault tripping +1 fault alarm; 09-4 normally open 3 normally closed +1 fault tripping +1 fault alarm
Derived functions: F-fire protection, L-leakage, G-isolation, T-communication
Installation method: 45 type: vertical installation (screw installation, 35mm standard rail) 125 type: vertical installation (screw installation)
Dimensions (mm): 45 type 3P: 205max×145max×77; 125 type 3P: 246max×185max×103.5

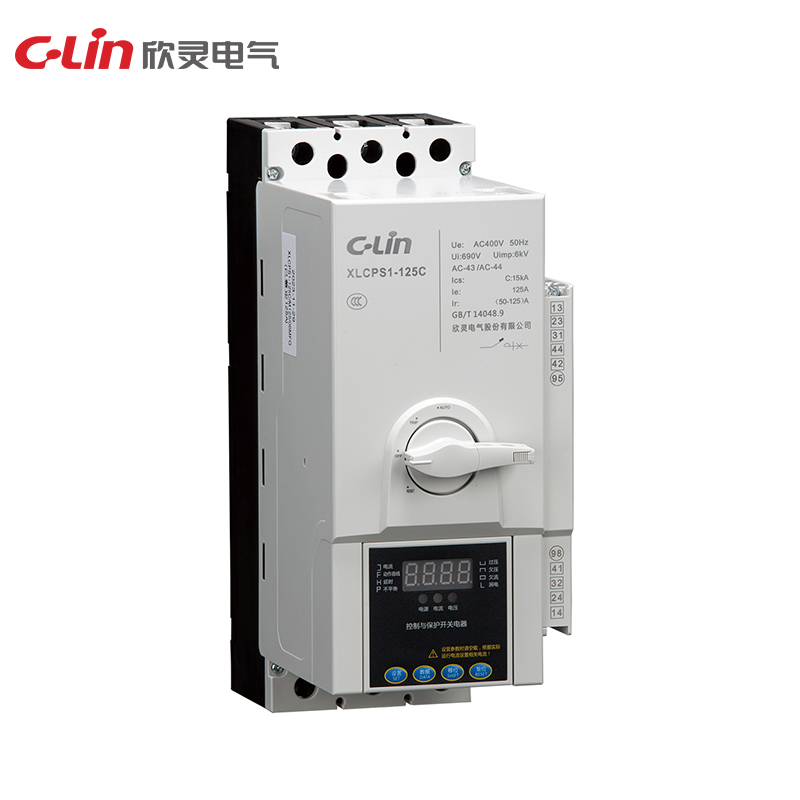

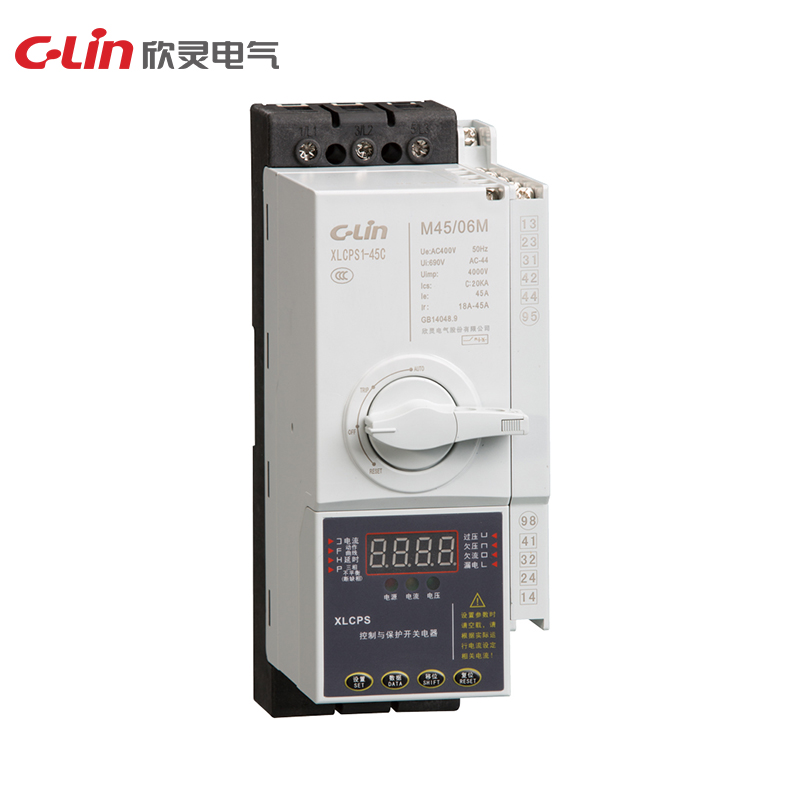

Speicfication | XLCPS1 |
Rated operating current (Ie) | 1A,3A,6A,12A,16A,25A,32A,45A,63A,80A,100A,125A |
Temperature | Upper temperature limit: +40°C; lower temperature limit: -5°C |
Installation environment | Altitude up to 2000 metres above sea level, no humidity, no corrosive gases |
Polarities | 3P |
Overload protection (time delay) | Distribution protection, motor protection |
Breaking capacity | C:15KA,Y:35KA |
Auxiliary Contacts | 06-3NO 2 NC +1 Failure release +1 Failure alarm |
Derived function | F- Fire, L- Leakage, G- Isolation, T- Communication |
