Over Voltage/Under voltage, Phase Failure, Phase Sequence Protection Relay HHD10 Series

Working power supply: three-phase AC380V 50Hz
Protection function: fuse blown monitoring
Display mode: LED indicates working status
Contact form: one normally open contact
Contact capacity: 3A AC250V (resistive)
Installation method: device type or 35mm guide rail type

HHD10

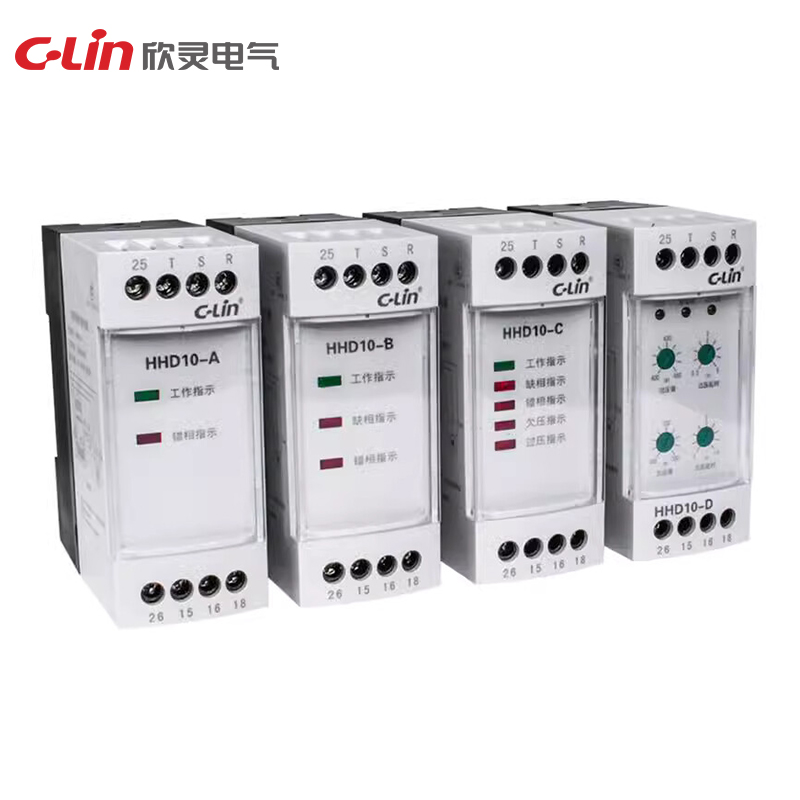

HHD10 Series

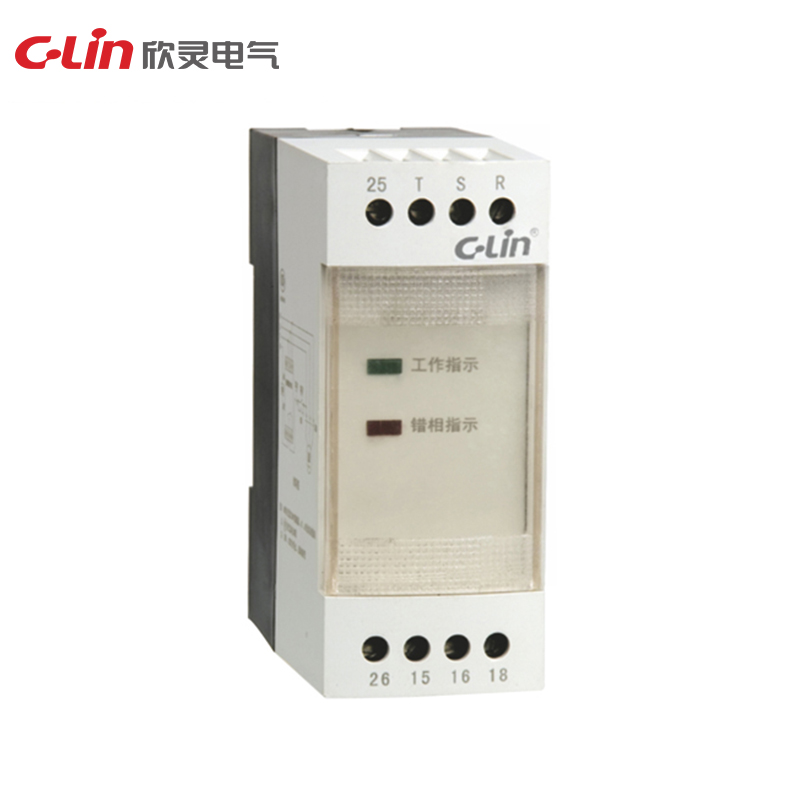

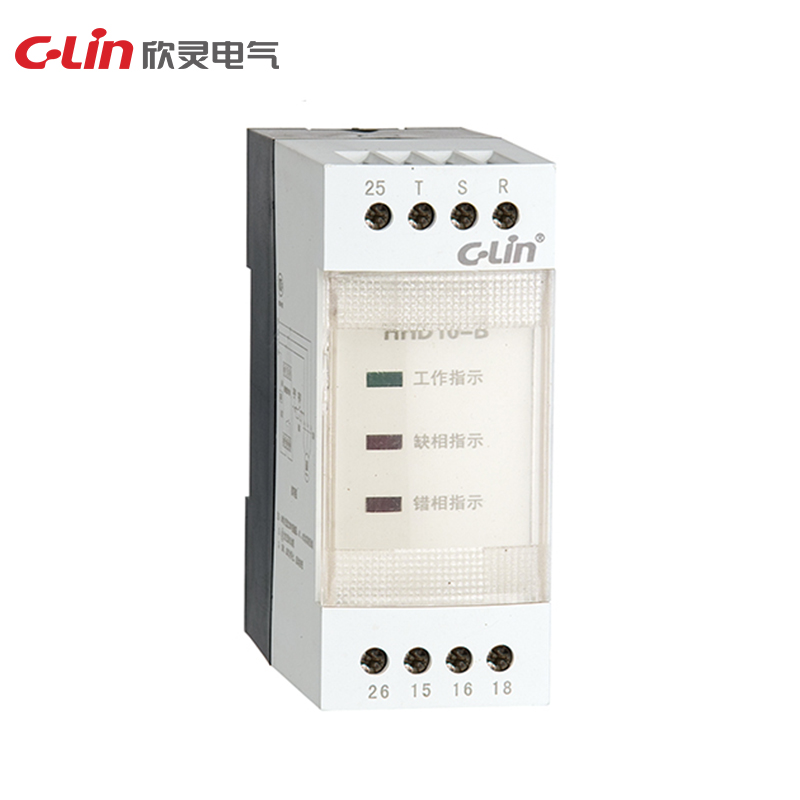

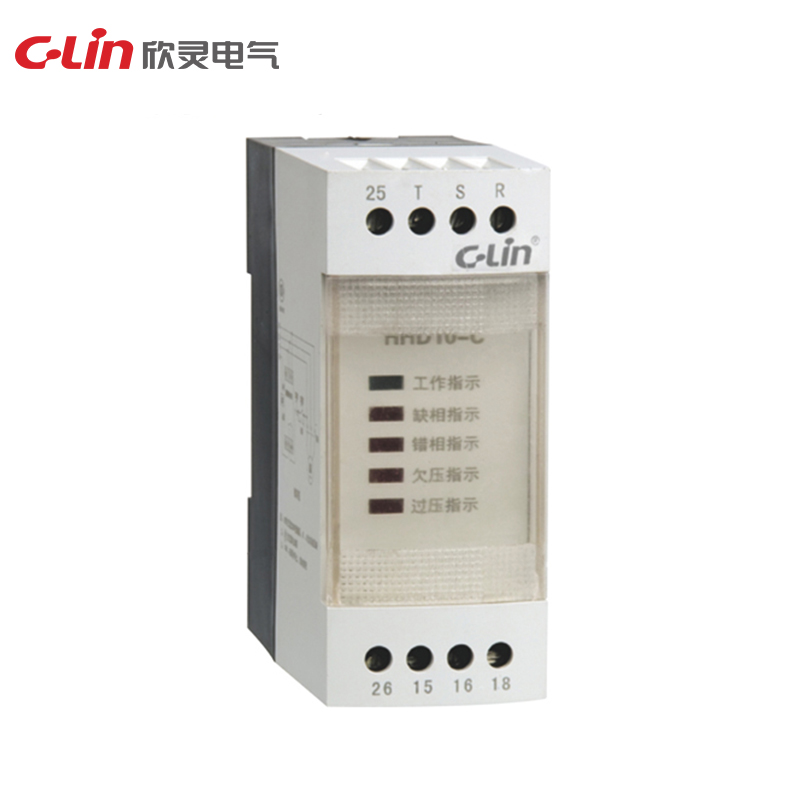

Model	HHD10-A	HHD10-B	HHD10-C	HHD10-D
Supply voltage	Three-phase AC380V 50Hz
Protection function	Phase sequence protection	Phase failure, phase sequence, voltage imbalance	Overvoltage, undervoltage, phase failure, phasesequence, voltage imbalance	Overvoltage (adjustable), undervoltage (adjustable), phase failure, phase sequence, voltage imbalance
Display mode	LED indicates work status
Contact form	1 set of NO and NC contacts
Contact capacity	3A AC250V(resistive)
Dimension	33×78×68.5mm
Installation method	Screw mounting type or 35mm DIN rail type
Replace for	ABJ1-10W	ABJ1-11W	GMR-32B	ABJ1-18; XJ11
