Measuring signal: Standard current: DC4~20mA (optional)
Standard voltage: DC0~10V (optional)
Measurement error: ≤1.0 level
Display mode: 0.56-inch digital display
Range: DC range: 0~9999
Working power supply: AC220V, AC380V
Dimensions: 96×48×90mm
Opening size: 92×44mm
Installation method: Panel type
Typical application: Used in standard signal conversion devices such as frequency converters and transmitters, which can display current, voltage, frequency, speed and pressure, etc.
Measuring signal: Standard current: DC4 ~ 20mA; DC0 ~ 20mA (optional)
Standard voltage: DC0~10V (optional)
Measurement error: ≤1.0 level
Display mode: 0.56-inch digital display
Range: 0~9999
Alarm output: J1, J2 two-way relay
Working power supply: AC220V, AC380V
Dimensions: 96×48×90mm
Opening size: 92×44mm
Installation method: Panel type
Typical application: used for standard signal conversion devices such as frequency converters and transmitters, which can display current, voltage, frequency, speed and pressure, and is used for electrical signal measurement of complete sets of cabinets, distribution cabinets, transformer boxes and other equipment, etc.
Instrument accuracy: 0.5 level
Display range: -19999~31000
Working power supply: default AC220V±10%, 50Hz (other power supplies need to be customized)
Communication function: 1-way RS485 communication
Alarm function: 1-way delay adjustable relay alarm
Signal input: AC/DC signal input, maximum through signal is 2000V
Data lock function: Data lock can be set to avoid accidental operation and modification of settings
Dimensions: 48mm×96mm×87mm
Opening size: 44mm×92mm
Installation method: panel type
Input signal: AC current, voltage DC current, voltage
Measurement error: ≤0.5 level
Display mode: 0.56-inch five-digit digital display
Range: -19999~31000, arbitrarily set
Alarm output: one relay output
Communication interface: RS485
Working power supply: AC220V or AC380V
Dimensions: 48mm×96mm×87mm
Opening size: 44mm×92mm
Installation method: panel type
Typical applications: used for photovoltaic, DC screen, new energy charging pile, energy storage equipment, etc.
Input signal: AC current, voltage DC current, voltage
Measurement error: ≤0.5 level
Display mode: 0.56-inch five-digit digital display
Range: -19999~31000
Working power supply: AC220V or AC380V
Dimensions: 48mm×96mm×87mm
Opening size: 44mm×92mm
Installation method: Panel type
Typical applications: used for photovoltaic, DC screen, new energy charging pile, energy storage equipment, etc.

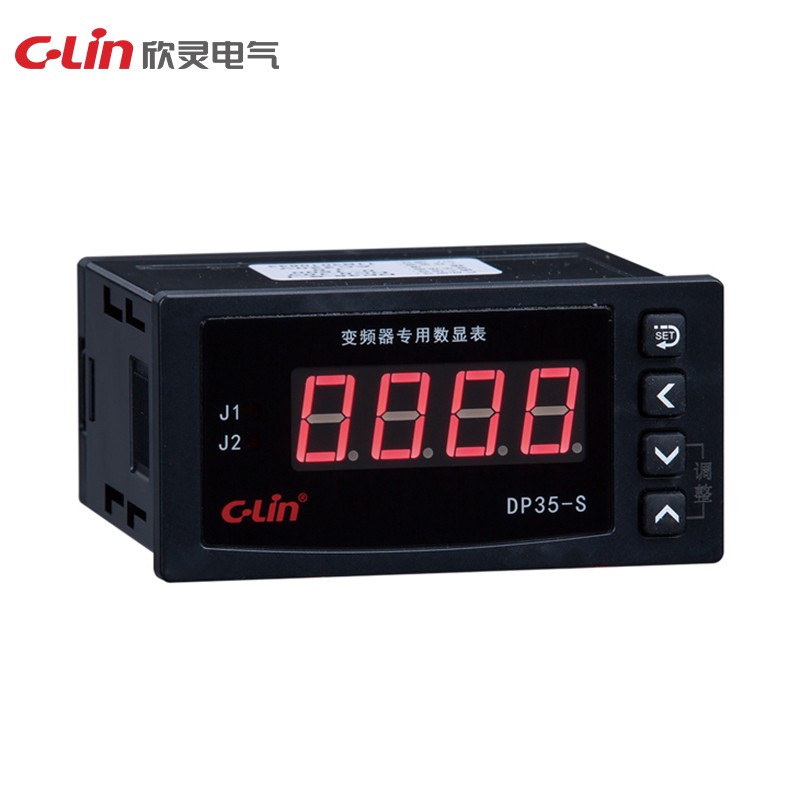

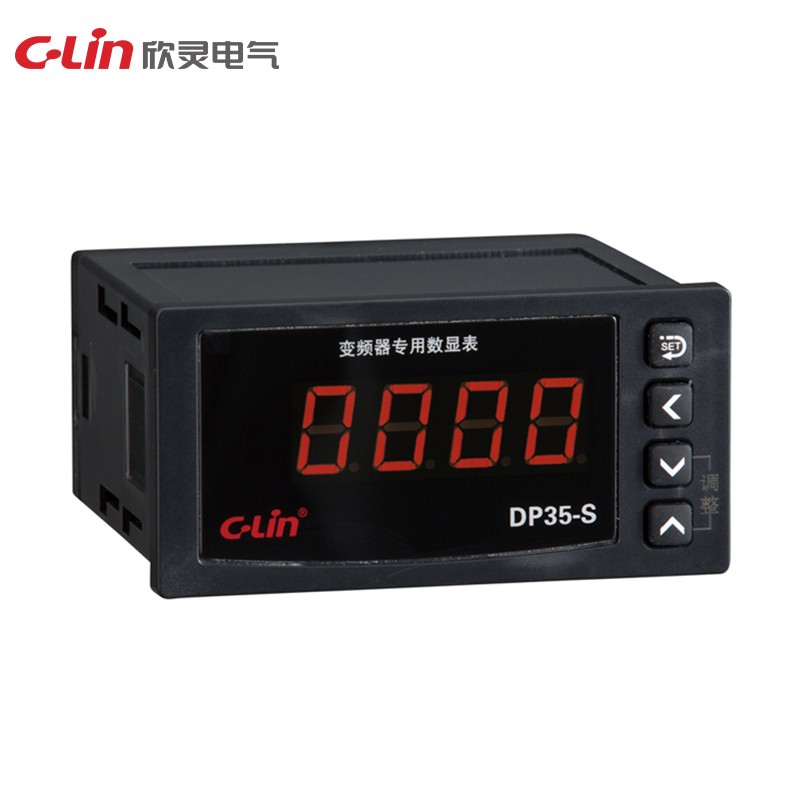

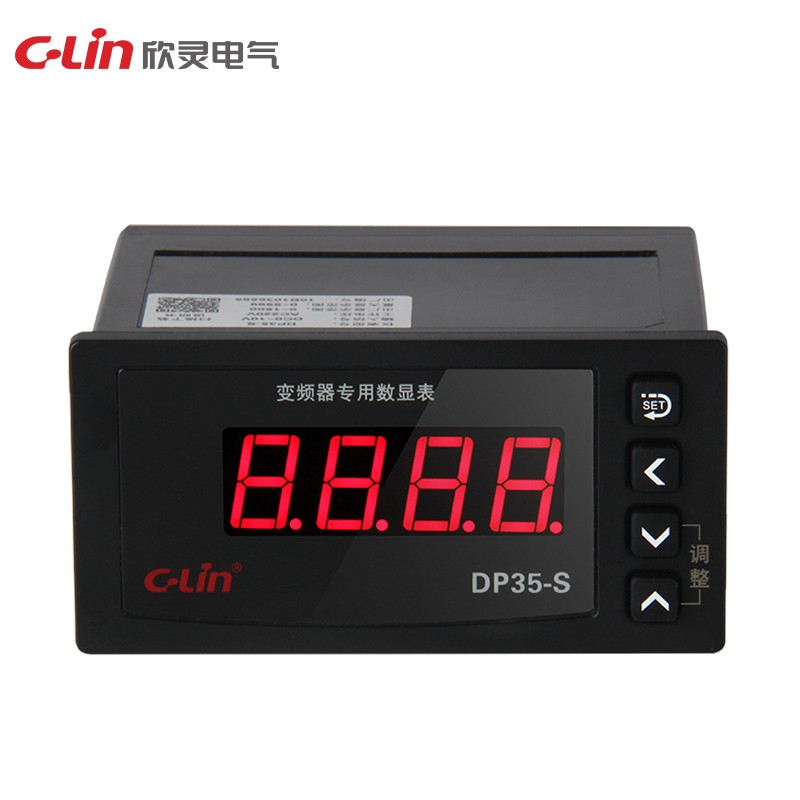

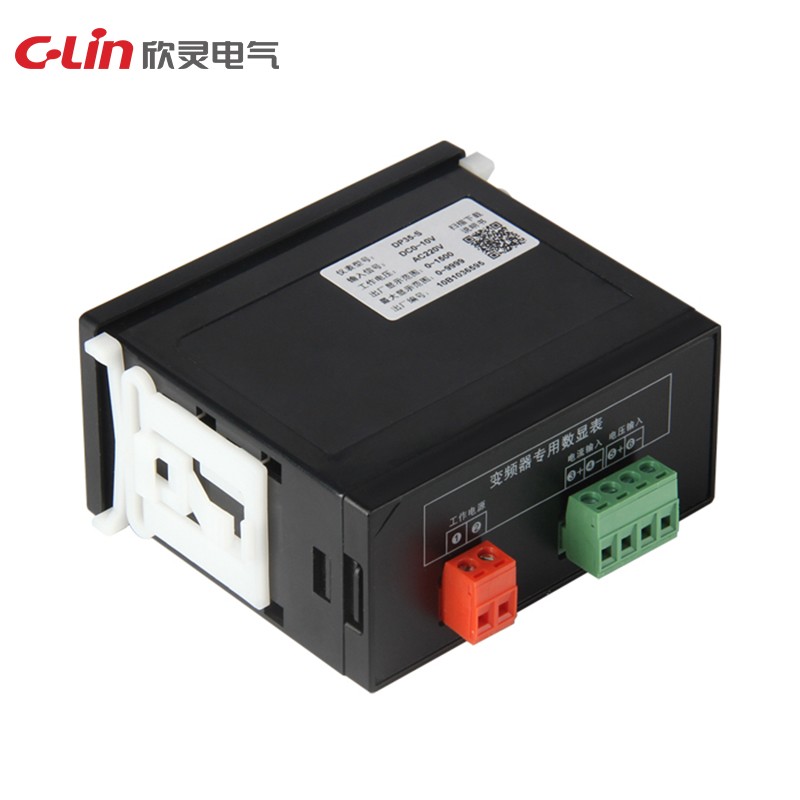

DP35 series | ||
Model | DP35-S | DP35-S-J |
Measurement signal | Standard current: DC4~20mA (optional) Standard voltage: DC0~10V (optional) | Standard current: DC4~20mA DC 0~20mA (optional) Standard voltage signal: DC0~10V (optional) |
Measurement error | ≤ 1.0 class | |
Display mode | 0.56 inch digital display | |
Range | DC range: 0~9999 | |
Alarm output | / | J1 and J2 relays |
Supply voltage | AC220V or AC380V | |
Dimension | 96×48×90mm | |
Hole size | 92×44mm | |
Installation method | Panel type | |
Typical application | Used for standard signal conversion devices such as inverters and transmitters, it can display current, voltage, frequency, rev. speed, and pressure, etc | Used for standard signal conversion devices such as inverters and transmitters, it can display current, voltage, frequency, rev. speed and pressure, used for electrical signal measurement of switchgear assemblies, distribution cabinets, and substations etc. |

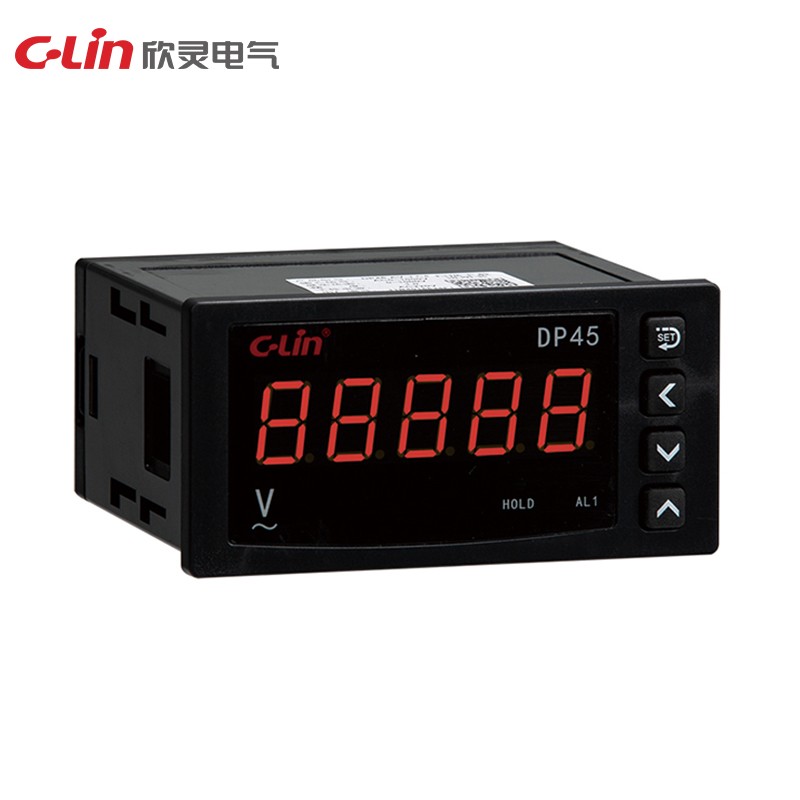

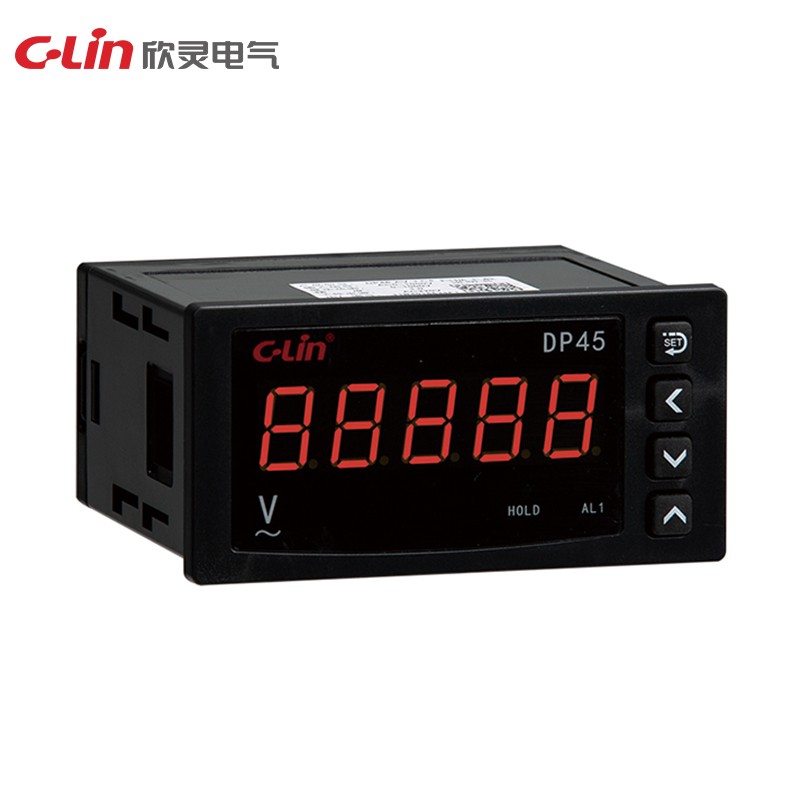

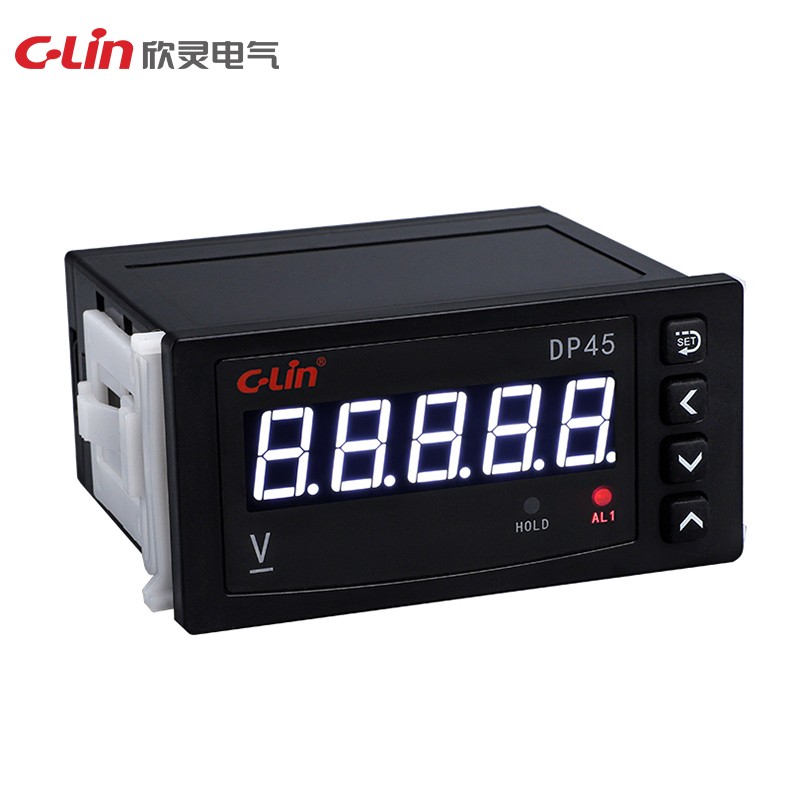

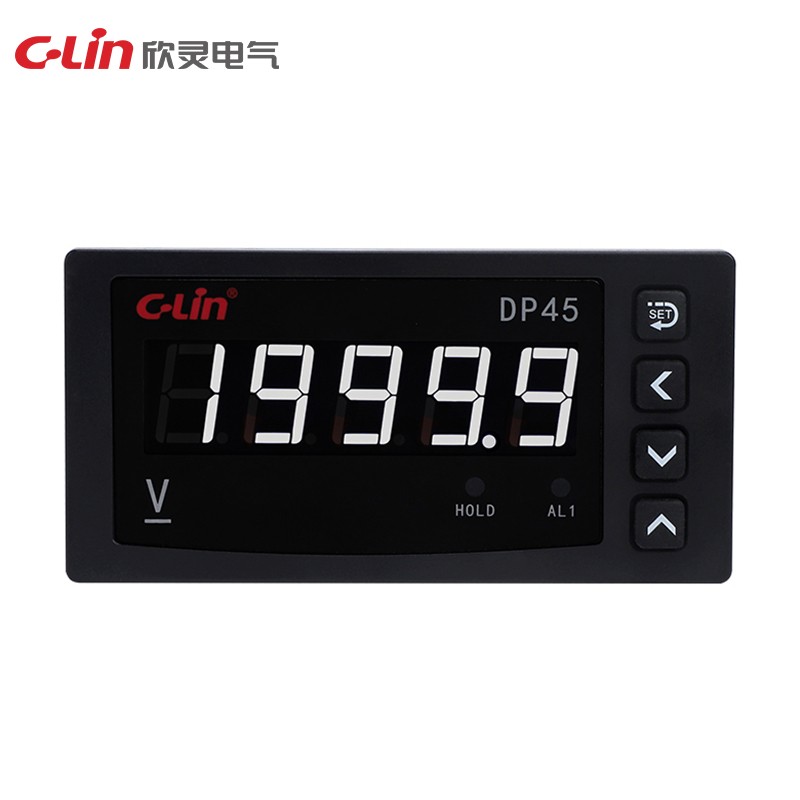

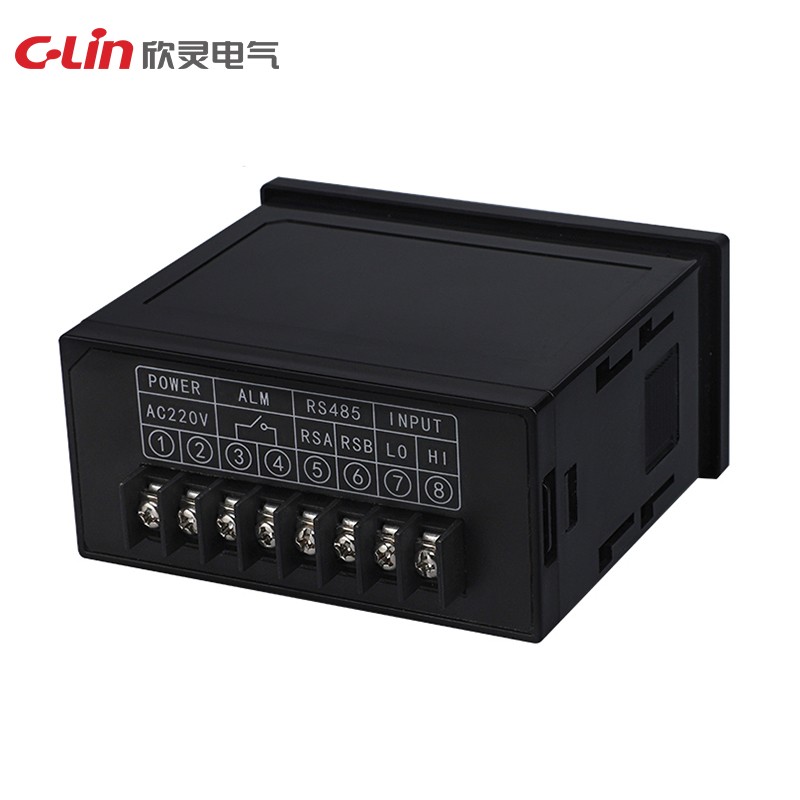

DP45 series | ||||||
Model | DP45-AI(DI) | DP45-AV(DV) | DP45-AI(DI)-J | DP45-AV(DV)-J | DP45-AI(DI)-J/C4 | DP45-AV(DV)-J/C4 |
Input signal | AC current and voltage DC current and voltage | |||||
Measurement error | ≤ 0.5 class | |||||
Display mode | 0.56 inch 5-digit display | |||||
Range | -1999~31000 settable | |||||
Alarm output | NA | One-circuit relay output | ||||
Comm. interface | NA | RS485 | ||||
Supply voltage | AC220V or AC380V | |||||
Dimension | 48mm×96mm×87mm | |||||
Hole size | 44mm×92mm | |||||
Installation method | Panel type | |||||
Typical application | Used for PV, DC panels, new energy charging piles, energy storage devices, etc. |
