Skip to content | HY series | ||||||

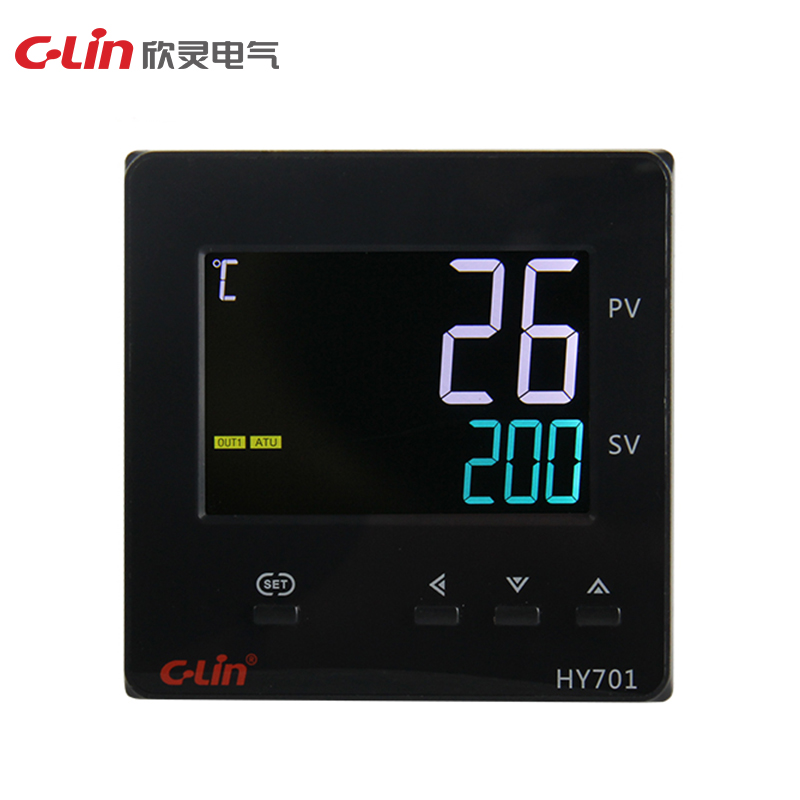

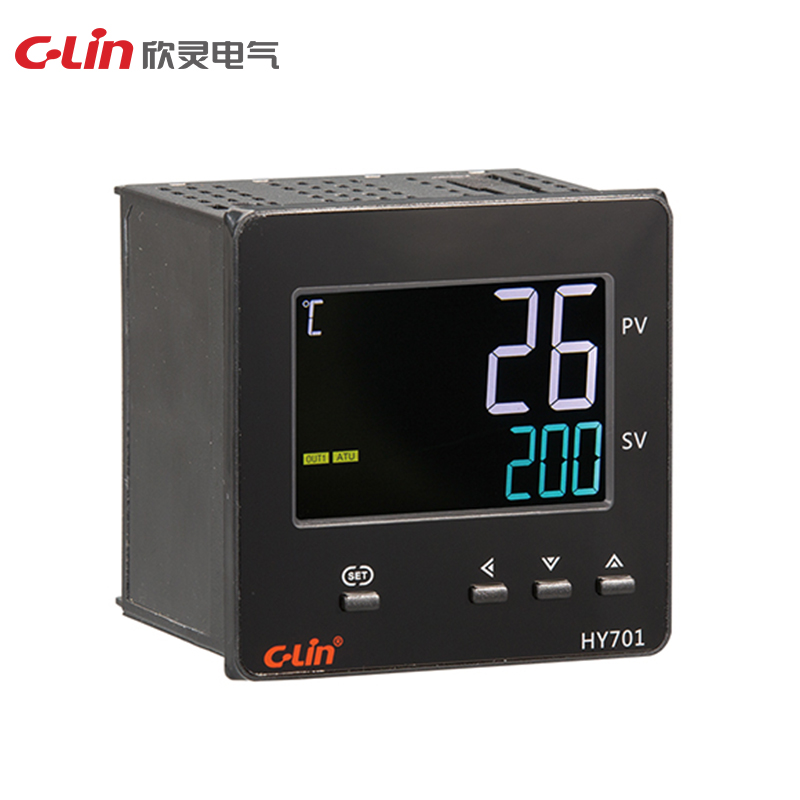

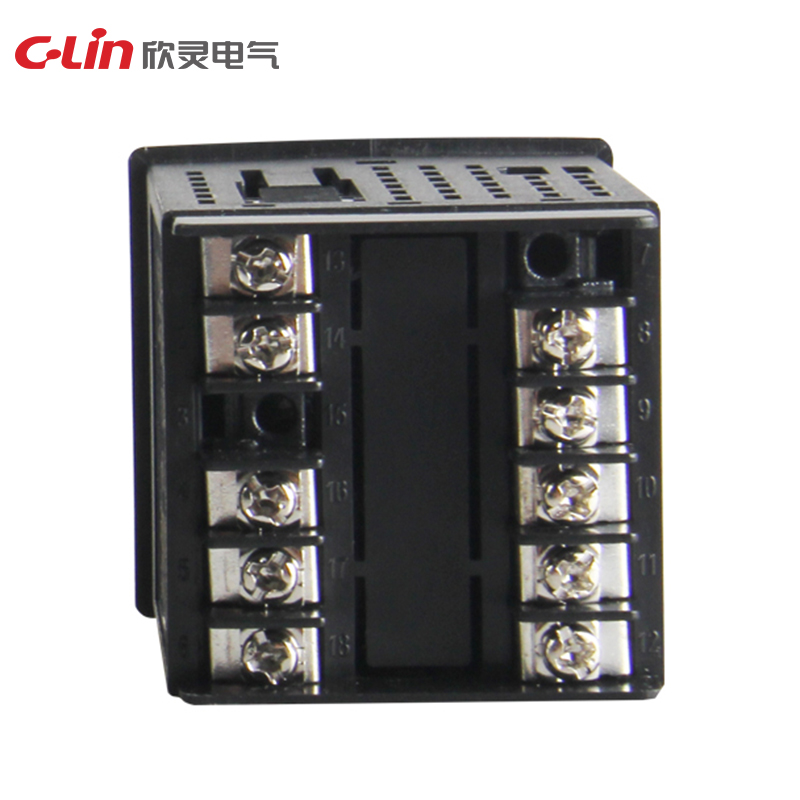

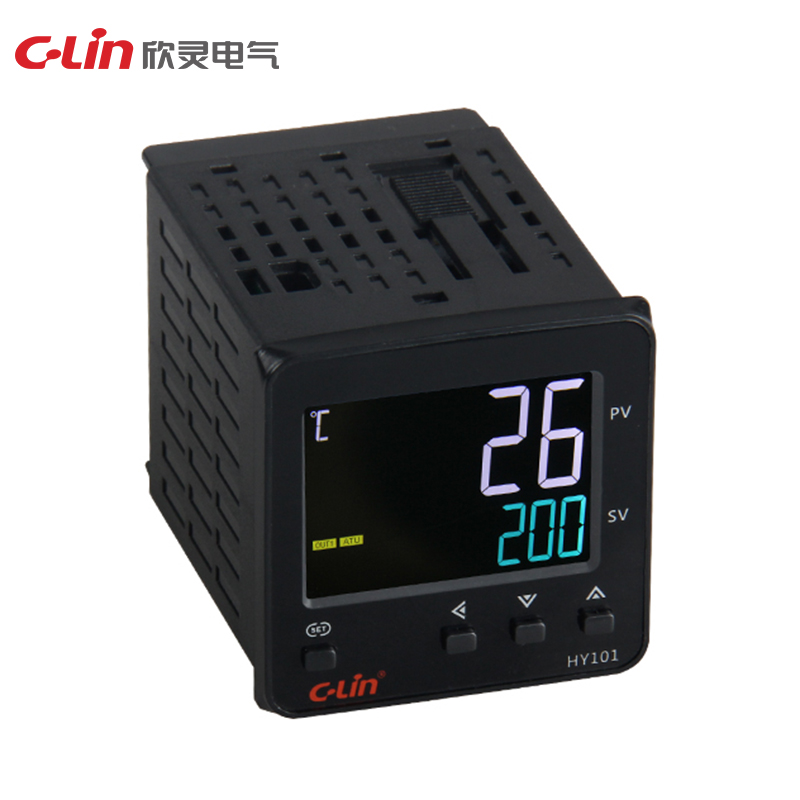

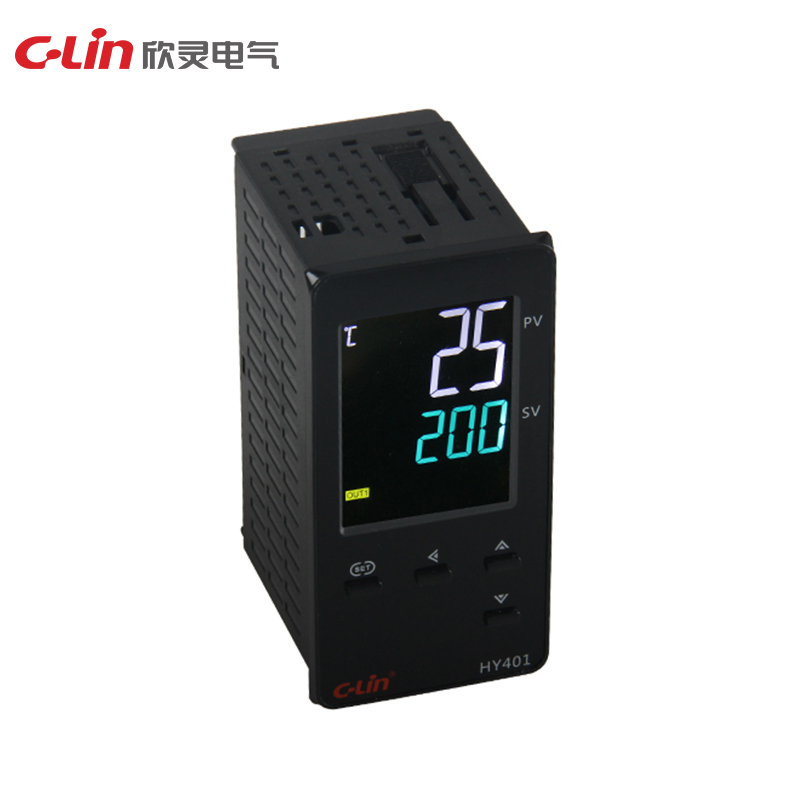

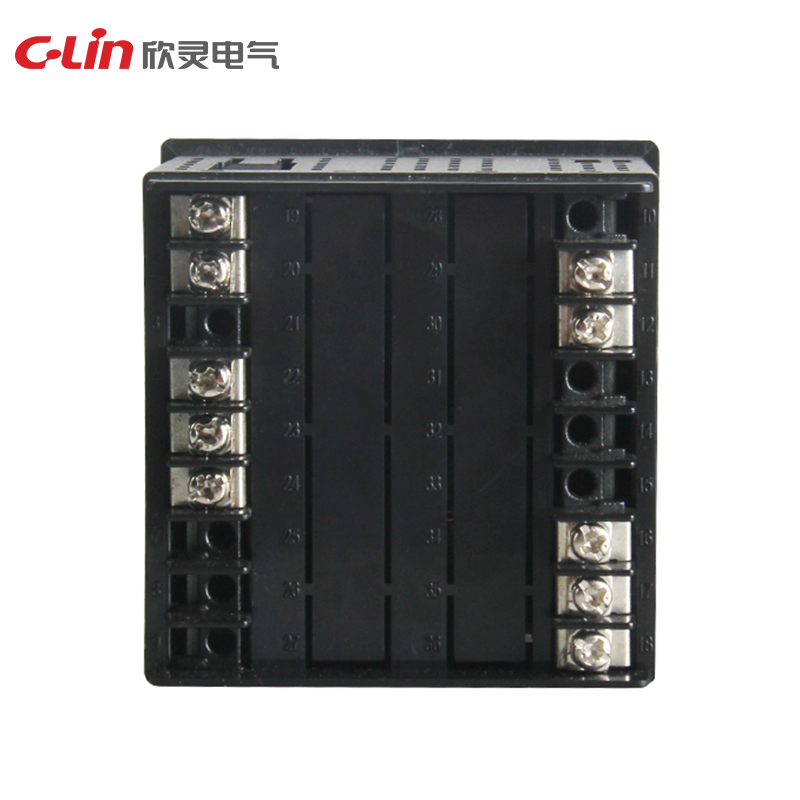

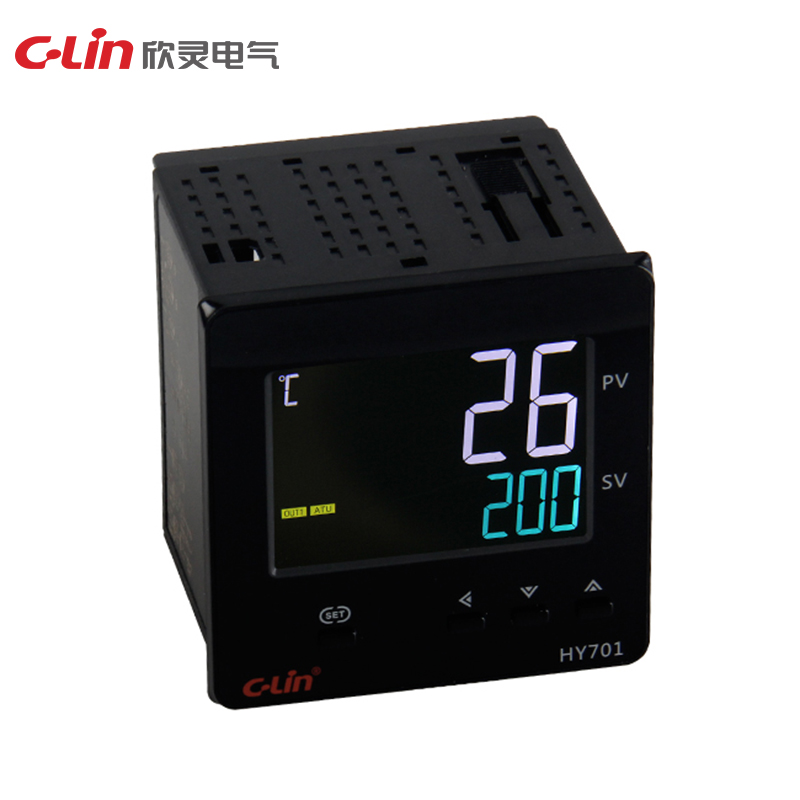

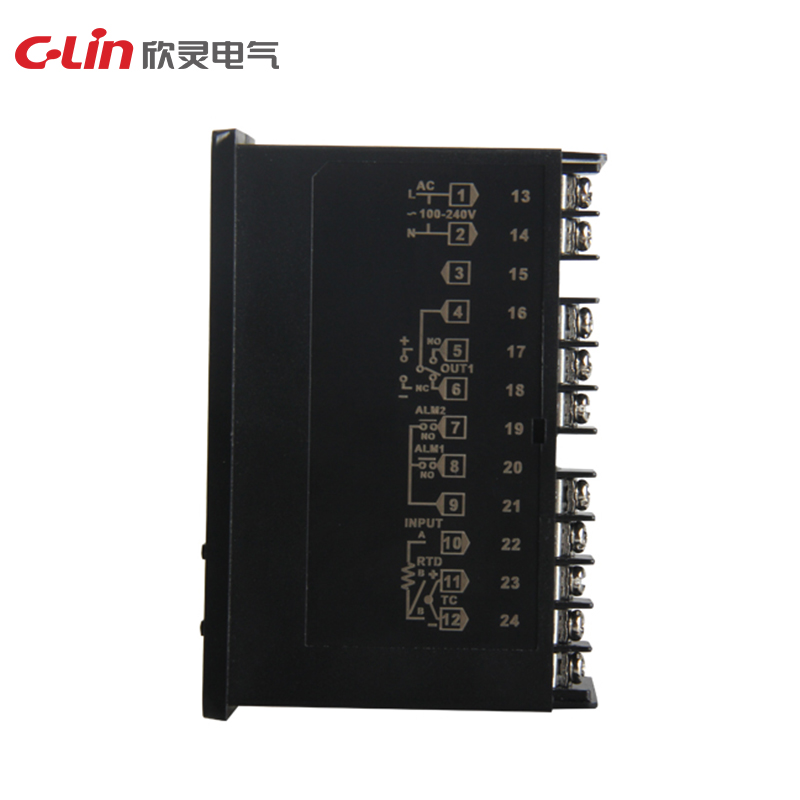

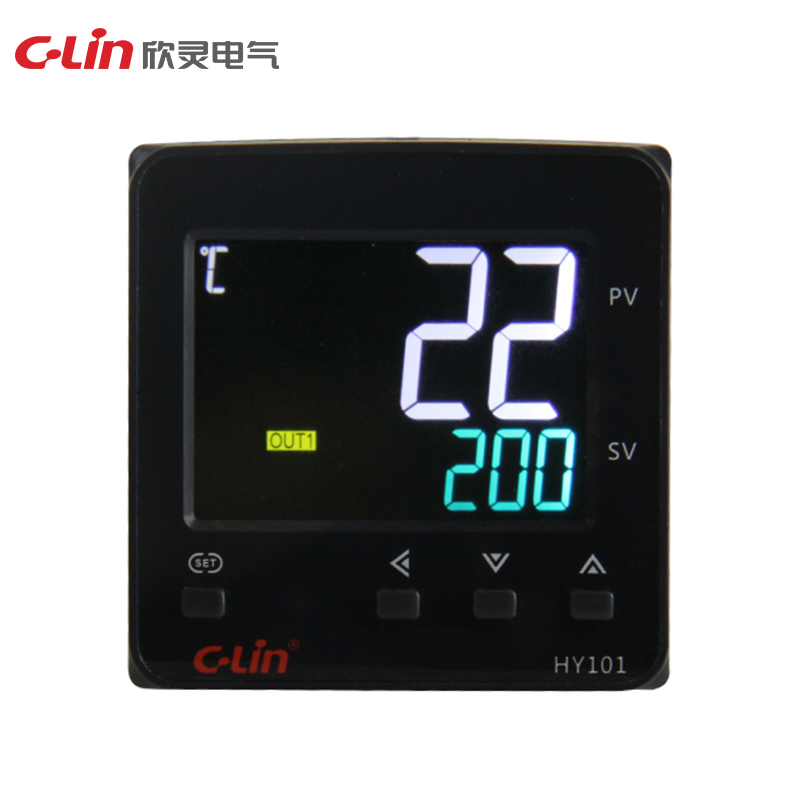

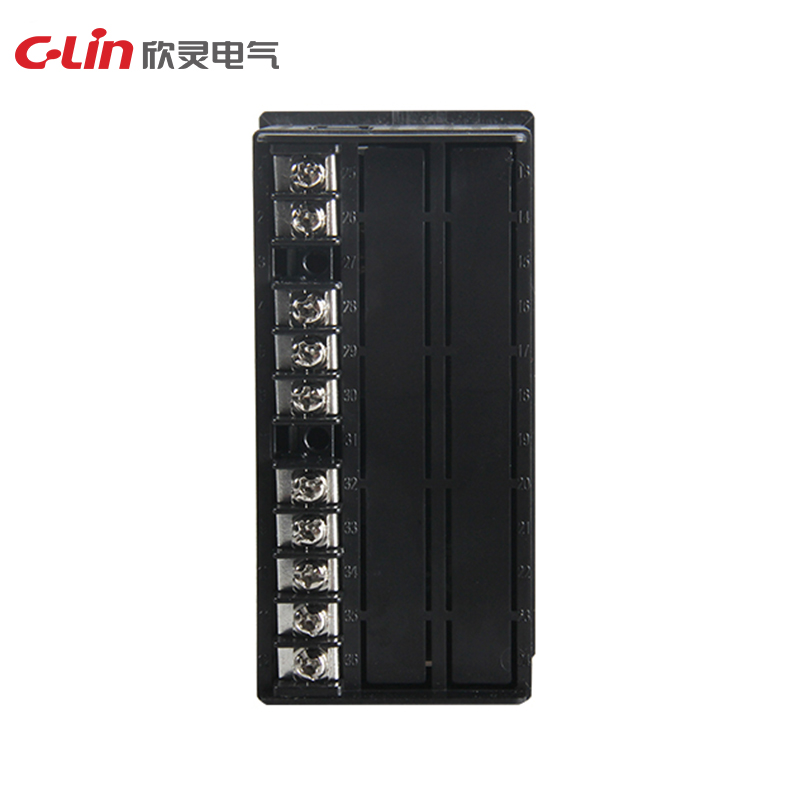

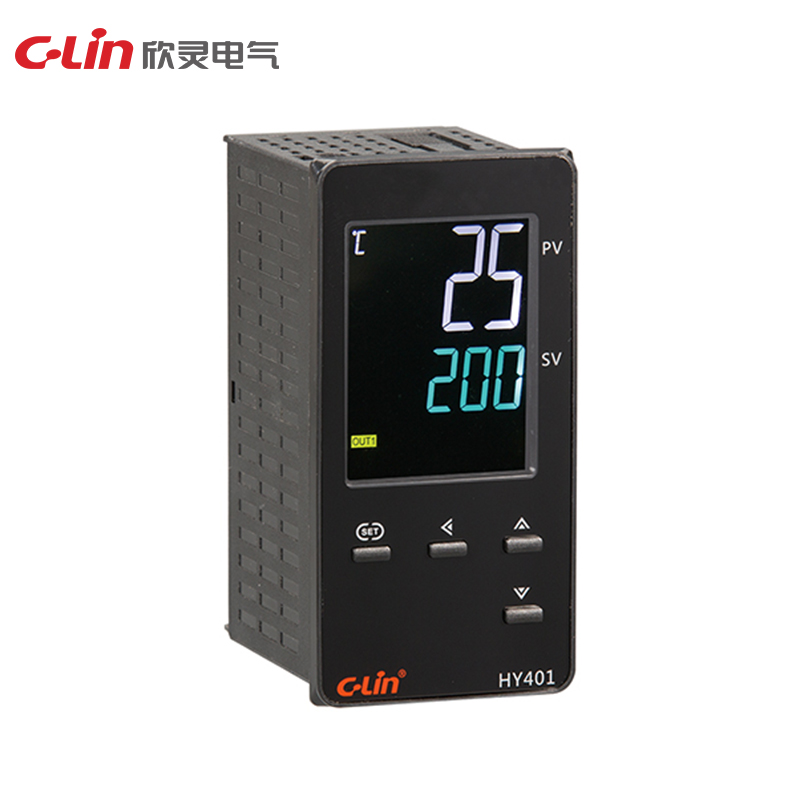

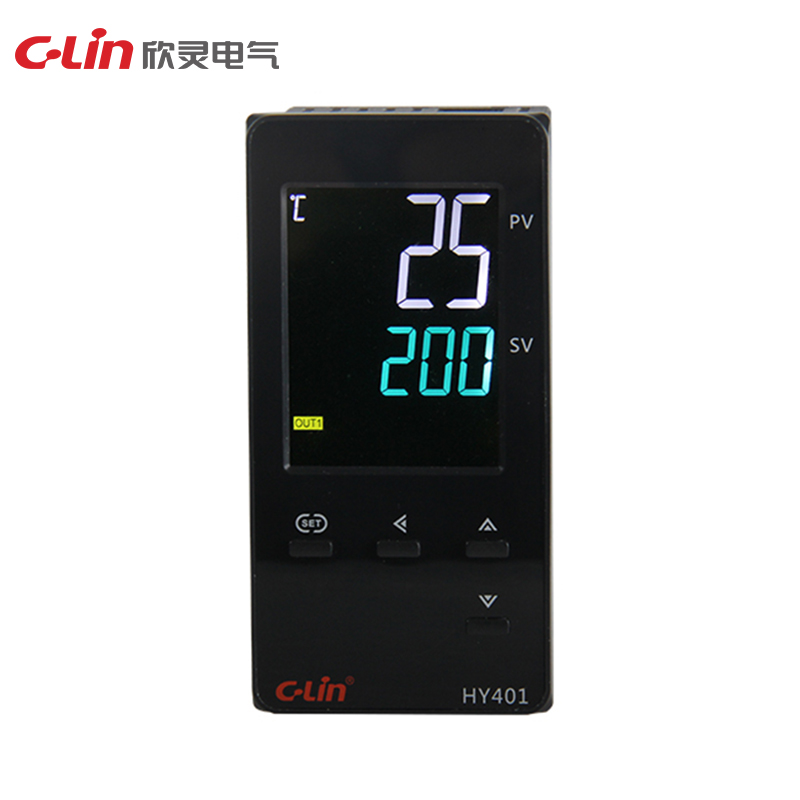

| Series | HY101 series | HY401 series | HY701 series | |||
| Model | HY101-F □ -M*AN | HY101-F □ -V*AN | HY401-F □ -M*AN | HY401-F □ -V*AN | HY701-F □ -M*AN | HY701-F □ -V*AN |

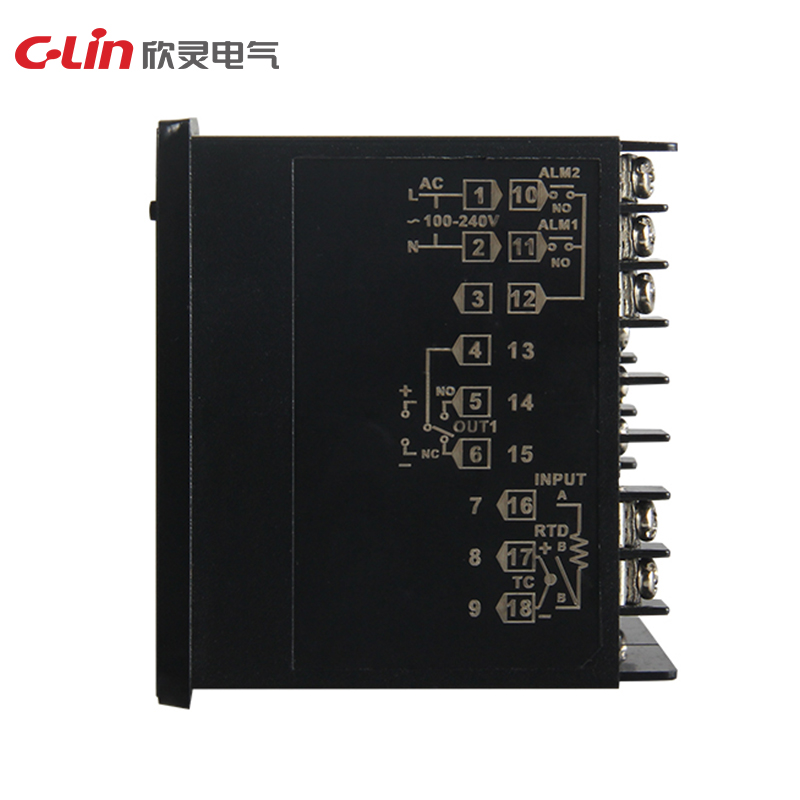

| Input signal | Thermocouple: K, E, J; Thermal resistance: Pt100, Cu50 | |||||
| Control mode | Two-position relay on-off control; PID regulation relay on-off control; PID regulation drive SSR voltage control | |||||
| Alarm mode | 1 set of alarm relay contact outputs | 1 set of alarm relay contact outputs; 2 set of alarm relay contact outputs | ||||
| Supply voltage | AC100~240V | |||||
| Dimension | 48×48×78mm | 48×96×78mm | 72×72×78mm | |||
| Hole size | 45×45mm | 45×92mm | 68×68mm | |||
| Typical application | Used for temperature control applications such as extruders, reflow soldering machines, shoe machines, etc | |||||
