Working power supply: AC220V, AC380V 50Hz
Current range: -1P: 0.2~1A; -2P: 0.4~2A; -ATP: 1~5A; -AP: 2~10A; -BP: 8~40A; -CP: 20~100A
Protection function: phase failure, three-phase imbalance, overload, stall, start avoidance
Display mode: LED indication status
Setting mode: Static quantitative calibration of potentiometer
Start avoidance: 2~60s continuously adjustable
Reset mode: power off reset
Contact form: one normally closed contact
Contact capacity: 3A AC380V (resistive)
Dimensions: 125×66×92mm
Installation method: compatible with device type and guide rail type

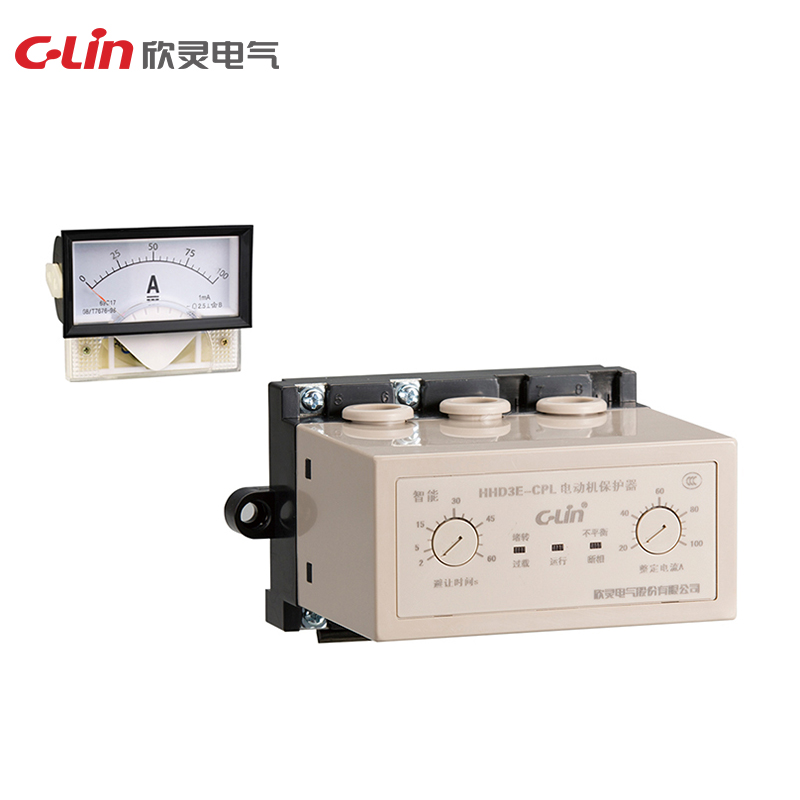

Working power supply: AC220V, AC380V 50Hz
Current range: -ATPL: 1~5A; -APL: 2~10A
-BPL: 8~40A; -CPL: 20~100A
Protection function: phase failure, three-phase imbalance, overload, stall, start avoidance
Display mode: LED indication status
Setting mode: Static quantitative calibration of potentiometer
Start avoidance: 2~60s continuously adjustable
Reset mode: power off reset
Contact form: one normally closed contact, one set of meter drive
Contact capacity: 3A AC380V (resistive)
Dimensions: 125×71×92mm
Installation mode: compatible with device type and guide rail type
DC meter head: purchased separately
Working power supply: AC220V, AC380V 50Hz
Current range: 40~160A
Protection function: phase failure, three-phase imbalance, overload, stall, start avoidance
Display mode: LED indication status
Setting mode: Static quantitative calibration of potentiometer
Start avoidance: 2~60s continuously adjustable
Reset mode: Power off reset
Contact form: a group of normally closed and normally open conversion contacts
Contact capacity: 3A AC380V (resistive)
Dimensions: 155×60×111mm
Installation method: device type

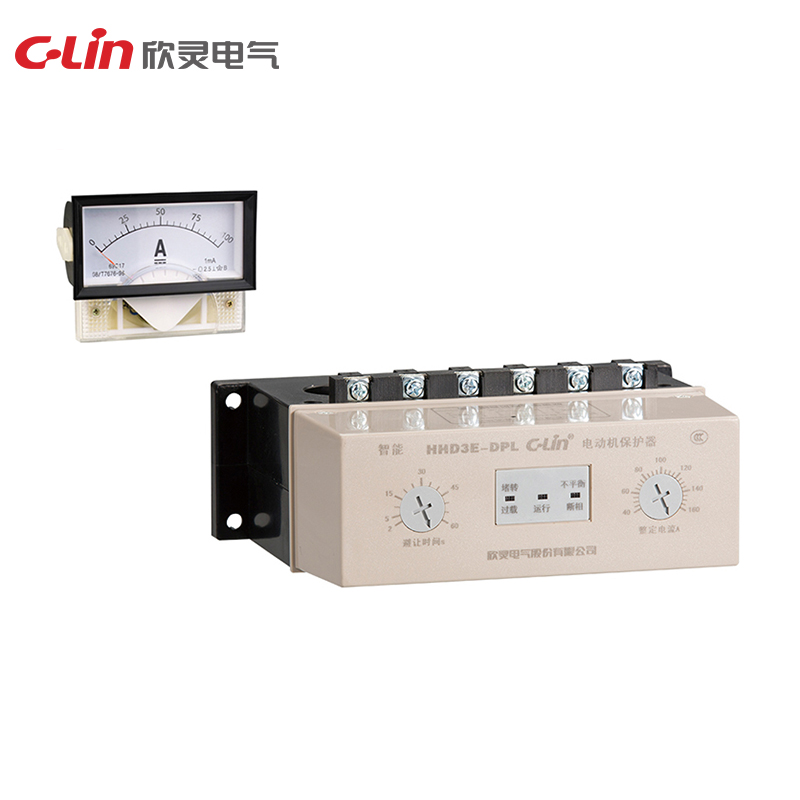

Working power supply: AC220V, AC380V 50Hz
Current range: 40~160A
Protection function: phase failure, three-phase imbalance, overload, stall, start avoidance
Display mode: LED indication status
Setting mode: Static quantitative calibration of potentiometer
Start avoidance: 2~60s continuously adjustable
Reset mode: power off reset
Contact form: one normally closed contact, one set of meter drive
Contact capacity: 3A AC380V (resistive)
Dimensions: 155×60×111mm
Installation method: device type
DC meter: purchased separately

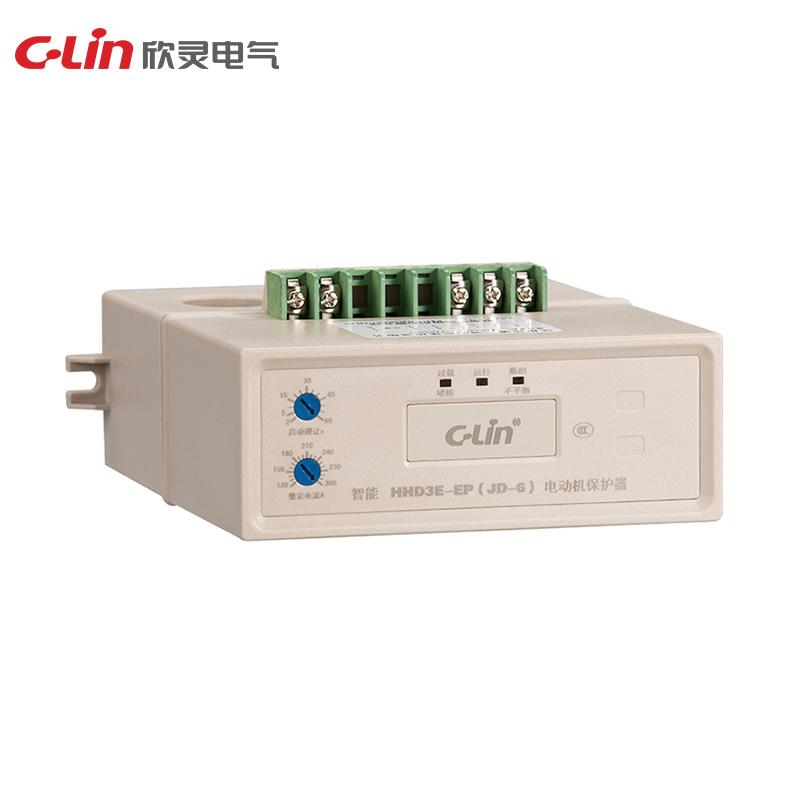

Working power supply: AC220V, AC380V 50Hz
Current range: -EP: 120~300A; -FP: 120~400A
Protection function: phase failure, three-phase imbalance, overload, stall, start avoidance
Display mode: LED indication status
Setting mode: potentiometer static quantitative calibration
Start avoidance: 2~60s continuously adjustable
Reset mode: power off reset
Contact form: a set of normally closed and normally open conversion contacts
Contact capacity: 3A AC380V (resistive)
Dimensions: 154×65×157mm
Installation method: device type
HHD3E-( )P series | |||||||||
Model | HHD3E-1P (JD-5) | HHD3E-2P (JD-5) | HHD3E-ATP (JD-5) | HHD3E-AP (JD-5) | HHD3E-BP (JD-5) | HHD3E-CP (JD-5) | HHD3E-DP (JD-5) | HHD3E-EP (JD-5) | HHD3E-FP (JD-5) |
Supply voltage | AC220V, AC380V 50Hz | ||||||||
Current range | 0.2~1A | 0.4~2A | 1~5A | 2~10A | 8~40A | 20~100A | 40~160A | 120~300A | 120~400A |
Protection function | Phase failure, three-phase imbalance, overload locked rotor, start avoidance | ||||||||
Display mode | LED indicates working status | ||||||||
Setting mode | Static quantization setting of potentiometer | ||||||||
Start avoidance | 2~60s continuously adjustable | ||||||||
Reset mode | Power-off reset | ||||||||
Contact form | 1 NC contact | 1 set of NC and NO transfer contacts | |||||||
Contact capacity | 3A AC380V(resistive) | ||||||||
Dimension | 125×66×92mm | 155×60×111mm | 154×65×157mm | ||||||
Installation method | Compatible with both installation and DIN rail type | Installation type |
HHD3E-( )PL series | |||||
Model | HHD3E-ATPL | HHD3E-APL | HHD3E-BPL | HHD3E-CPL | HHD3E-DPL |
Supply voltage | AC220V, AC380V 50Hz | ||||
Current range | 1~5A | 2~10A | 8~40A | 20~100A | 40~160A |
Protection function | Phase failure, three-phase imbalance, overload locked rotor, start avoidance | ||||
Display mode | LED indicates working status | ||||
Setting mode | Static quantization setting of potentiometer | ||||
Start avoidance | 2~60s continuously adjustable | ||||
Reset mode | Power-off reset | ||||
Contact form | 1 NC contact, 1 set of meter head drive | ||||
Contact capacity | 3A AC380V(resistive) | ||||
Dimension | 125×71×92mm | 155×60×111mm | |||
Installation method | Compatible with both installation and DIN rail type | Installation type | |||
DC meter head | Purchase separately |
