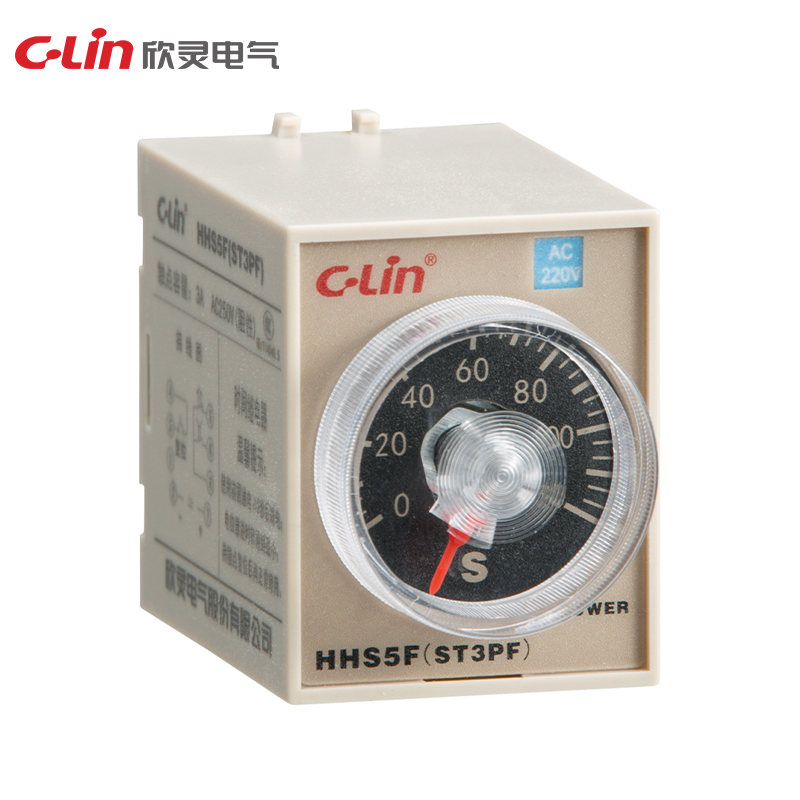

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 1s, 5s, 10s, 30s, 60s, 120s, 180s
Repeat error: ≤5%
Working mode: power-off delay
Contact form: HHS5F: one set of delay contacts with reset
HHS5F1: two sets of delay contacts
HHS5F2: one set of delay contacts and one set of instantaneous contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 40.5×54×84mm
Installation method: with different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail
Alternative product: JSZ3F

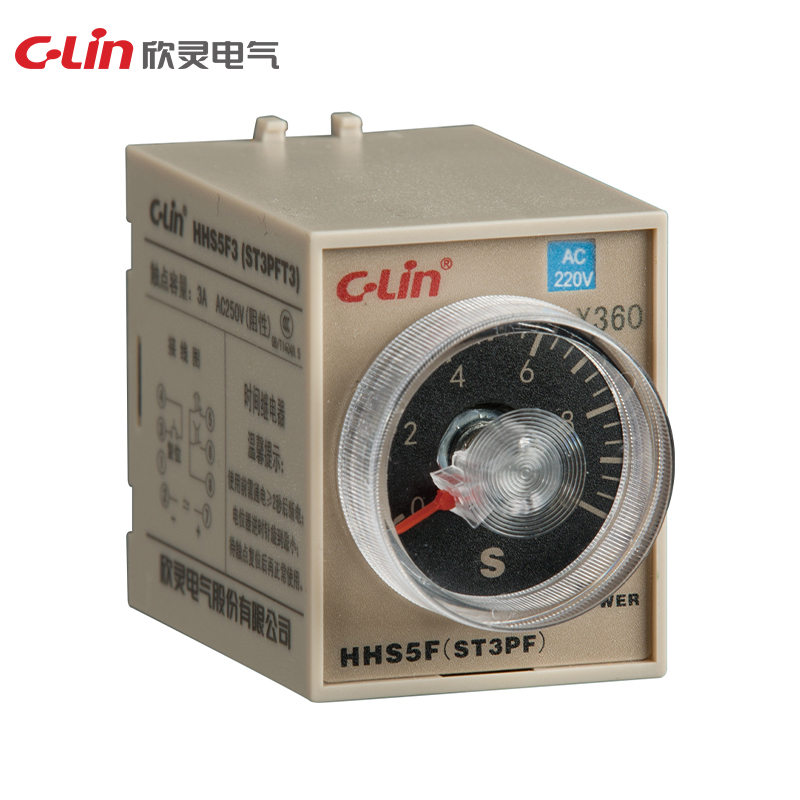

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 180s, 300s, 600s, 1800s, 3600s
Repeat error: ≤5%
Working mode: power-off delay
Contact form: a set of delay contacts with reset
Contact capacity: 3A AC250V (resistive)
Dimensions: 40.5×54×84mm
Installation method: with different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail

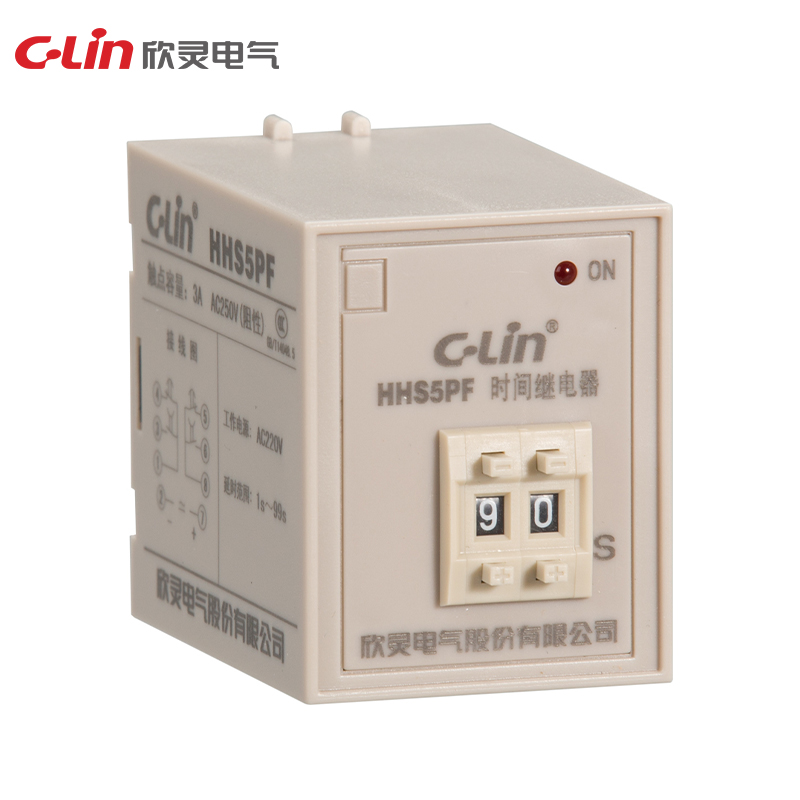

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.01s~0.99s, 0.01s~9.99s, 0.1s~9.9s, 0.1s~99.9s, 1s~99s, 1s~999s, 0.1m~9.9m 0.1m~9.9m, 1m~99m……
Repeat error: ≤ 1%
Working mode: Power-on delay
Contact form: Two sets of delay contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 40.5×54×75.5mm
Installation method: With different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail

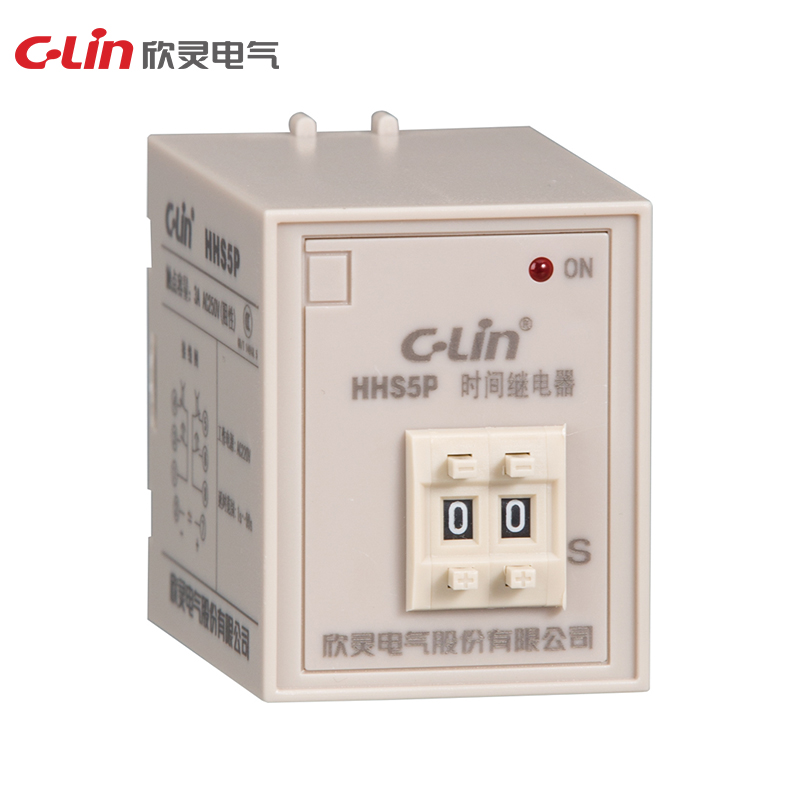

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.1s-99h, 6 adjustable time bases
Repeat error: ≤ 1%
Working mode: Power-on delay
Contact form: A: two groups of delay contacts; B: one group of delay and one group of instantaneous
Contact capacity: 3A AC250V (resistive)
Dimensions: 40.5×54×75.5mm
Installation method: With different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail
Alternative products: ST3PA, ST3PC
Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.1s~9.9s, 1s~99s, 0.1s~99.9s, 1s~199s
Repeat error: ≤5%
Working mode: power-off delay
Contact form: two sets of delay contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 40.5×54×75.5mm
Installation method: with different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail

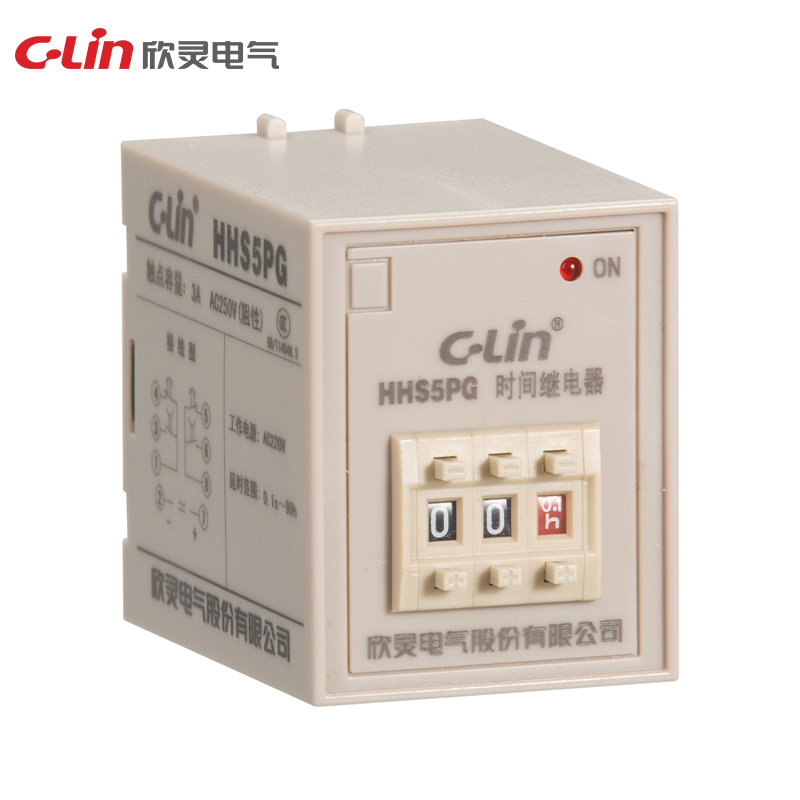

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.1s~99h, 6 adjustable time bases
Repeat error: ≤1%
Working mode: Release delay
Contact form: Two groups of delay
Contact capacity: 3A AC250V (resistive)
Dimensions: 40.5×54×75.5mm
Installation method: With different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail

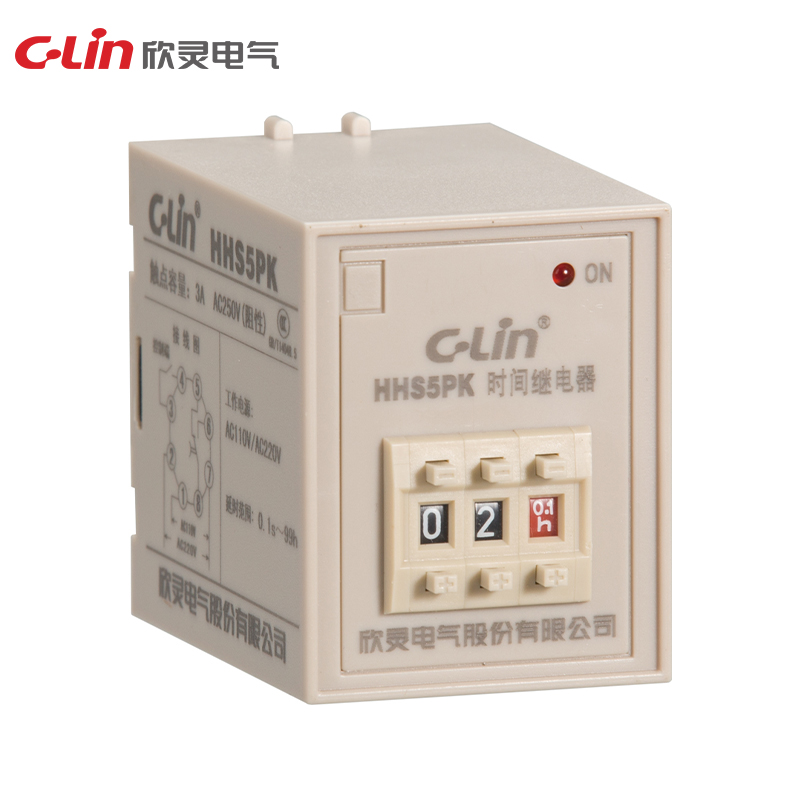

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.1s-99h, 6 adjustable time bases
Repeat error: ≤1%
Working mode: HHS5PK: disconnection delay
HHS5PY: star-delta start delay
Contact form: HHS5PK: a set of delay contacts
HHS5PY: a set of star-delta conversion contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 41×55×76mm
Installation method: with different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail
Alternative products: ST3PK, ST3PY
Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.1s-99h, 6 adjustable time bases
Repeat error: ≤1%
Working mode: cyclic delay
Contact form: a set of delay contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 40.5×54×75.5mm
Installation method: with different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail
Alternative product: ST3PR

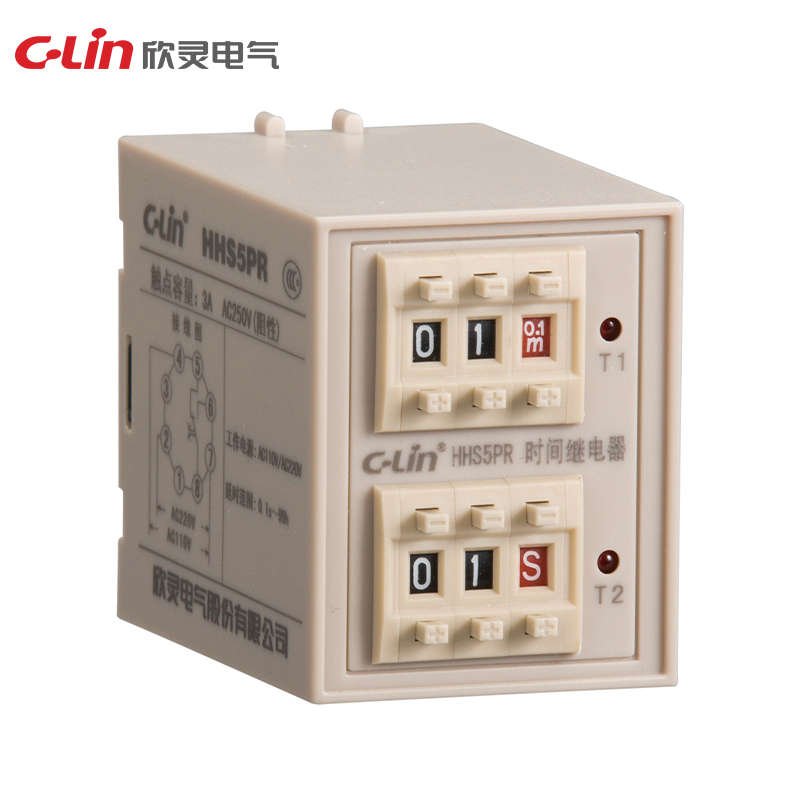

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 6s/60s, 10s/10min, 30s/30min, 60s/60min
Repeat error: ≤1%
Working mode: cyclic delay
Contact form: a set of delay contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 40.5×54×86mm
Installation method: with different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail
Alternative product: JSZ3R
Specification | HHS5 | HHS5G | HHS5C | HHS5F | HHS5F1 | HHS5F2 | HHS5F3 | HHS5R |
Movement Forms | Power-on delay | Release delay | Power-on delay with momentary contact | Power failure delay | Cyclic delay | |||
Delay Range | A:0.05s~0.5s/5s/30s/3m B:0.1s-1s/10s/60s/6m C:0.5s-5 /50s/5m/30m D:1s-10s/100s/10m/60m E:5s-60s/10m/60m/6h F:0.25m~2m/20m/2h/12h G:0.5m~4m/40m/4h/24h | 0.1s-1s;0.2s-2s 0.5s-5s;1s-10s;2.5s-30s;5s-60s;10s-120s;15s-180s | 60s-600s 180s-1800s 360s-3600s | 0.5s~6s/60s1s~10s/10m2.5s~30s/30m5s~60s/60m | ||||
Setting method | Potentiometer | |||||||
Repetition error | Er<1% when the delay range is greater than 1s; Dr<50ms when the delay range is less than 1s. | Er<5% when the delay range is greater than 1s; Dr<100ms when the delay range is less than 1s. | Er<1% when the delay range is greater than 1s; Dr<50ms when the delay range is less than 1s. | |||||
Number of contacts | Delay 2 conversion | Delay 1 conversion Momentary 1-conversion | Delay 1conversion | Delay 2 conversion | Delay 1 conversion Momentary 1-conversion | Delay 1conversion | ||
Contact capacity | 3A AC250V (resistive) | |||||||
Operating power | AC380V,AC220V,AC110V,AC36V,AC24V, 50Hz;DC24V,DC110V,DC220V | AC110V,AC220V 5Hz;DC24V,(85%-110%)Ue | ||||||
Temperature range | -5°-40°C | |||||||
Altitude | ≤2000m | |||||||
Humidity | The relative humidity of the air is <50% at a maximum temperature of 40°C at the installation site, higher relative humidity may be permitted at lower temperatures, e.g. up to 90% at 20°C. Special measures should be taken for occasional condensation due to temperature changes. | |||||||
Installation | Unit, panel and 35m rail mounting with different sockets and accessories. | |||||||
Conventional heating current Ith | 5A | |||||||
Rated insulation voltage Ui | 400V | |||||||
Rated impulse withstand voltage Uimp | 2.5KV | |||||||
Ue/Ie | Rated Working Voltage Ue/Rated Working Current Ie:AC-15 Ue:AC250V,Ie:3A in each category of use. |
HHS5F
HHS5 series time relays are suitable for use as time-delay elements in control circuits with AC 50Hz, operating voltages of 380V and below, or DC operating voltages of 24V, to connect or break circuits at preset times.
This series of relays has the advantages of small size, light weight, high precision, wide delay range, good performance and so on, which is widely used in automation control circuits for delay control.
This product meets the relevant requirements of GB/T 14048.5.
Wiring Diagram
Specification-HHS5F
Rated Supply Voltage | AC24V、AC36V、ACI10V、AC220V、 AC380V50Hz:DC24V、DCI10V、 DC220V:Allowable voltage fluctuation range (85%~110%)Ue |
Time Delay range | 1s、5s、10s、30s、60s、120s、180s |
Repetition error | ≤5% |
Contact | One set of delay contacts with reset |
Rated Load of the Contact | 3A AC250V(Resistive) |
Dimensions | 40.5×54×84mm |
Installation | Panel and 35mm rail mounting with different sockets and accessories. |
Temperature | -5℃ to 40℃ |
Operating mode | Power off delay |
HHS5F1
HHS5 series time relays are suitable for use as time-delay elements in control circuits with AC 50Hz, operating voltages of 380V and below, or DC operating voltages of 24V, to connect or break circuits at preset times.
This series of relays has the advantages of small size, light weight, high precision, wide delay range, good performance and so on, which is widely used in automation control circuits for delay control.
This product meets the relevant requirements of GB/T 14048.5.
Wiring Diagram
Specification-HHS5F1
Rated Supply Voltage | AC24V、AC36V、ACl10V、AC220V、 AC380V50Hz:DC24V、DCI10V、 DC220V:Allowable voltage fluctuation range (85%~110%)Ue |
Time Delay Range | 1s、5s、10s、30s、60s、120s、180s |
Repetition Error | ≤5% |
Contact | 2C time delay |
Rated Load of the Contact | 3A AC250V(Resistive) |
Dimensions | 40.5×54×84mm |
Installation | Panel and 35mm rail mounting with different sockets and accessories. |
Temperature | -5℃ to 40℃ |
Operating Mode | Power off delay |
HHS5PA
HHS5 series time relays are suitable for use as time-delay elements in control circuits with AC 50Hz, operating voltages of 380V and below, or DC operating voltages of 24V, to connect or break circuits at preset times.
This series of relays has the advantages of small size, light weight, high precision, wide delay range, good performance and so on, which is widely used in automation control circuits for delay control.
This product meets the relevant requirements of GB/T 14048.5.
Specification-HHS5PA
Rated Supply Voltage | AC24V、AC36V、ACl10V、AC220V、 AC380V50Hz:DC24V、DCI10V、 DC220V:Allowable voltage fluctuation range (85%~110%)Ue |
Time Delay range | 0.1s-9.9s、1s-99s、0.1m-9.9m、1m-99m、 0.1h-9.9h、1h-99h |
Repetition error | Er<1%when the delay range is greater than 1s;Dr<50ms when the delay range is less than 1s |
Contact | A.Delay 2 convert B.Delay 1 convert,instantaneous 1 convert |
Rated Load of the Contact | 3A AC250V(Resistive) |
Dimensions | 40.5×54×75.5mm |
Installation | Panel and 35mm rail mounting with different sockets and accessories. |
Temperature | -5℃ to 40℃ |
Operating mode | Power off delay |
