Multi-circuit Time Controller HHQ8 Series

Working power supply: AC220V 50Hz
Time control range: 1 minute ~ 168 hours
Timing error: ≤ ± 1 second / day
Programmable number: HHQ8-1 is 40 groups of switch programming
HHQ8-2 is 40 groups of switch programming
Output: HHQ8-1 is 1 output; HHQ8-2 is 2 outputs
Contact capacity: HHQ8-1 is 16A AC250V (resistive)
HHQ8-2 is 3A AC250V (resistive)
Battery: built-in high-energy lithium battery
Dimensions: 49.5×100×74mm
Installation method: 35mm rail type

Working power supply: AC220V 50Hz
Time control range: 1 minute ~ 168 hours
Timing error: ≤ ± 1 second / day
Programmable number: 40 groups in total

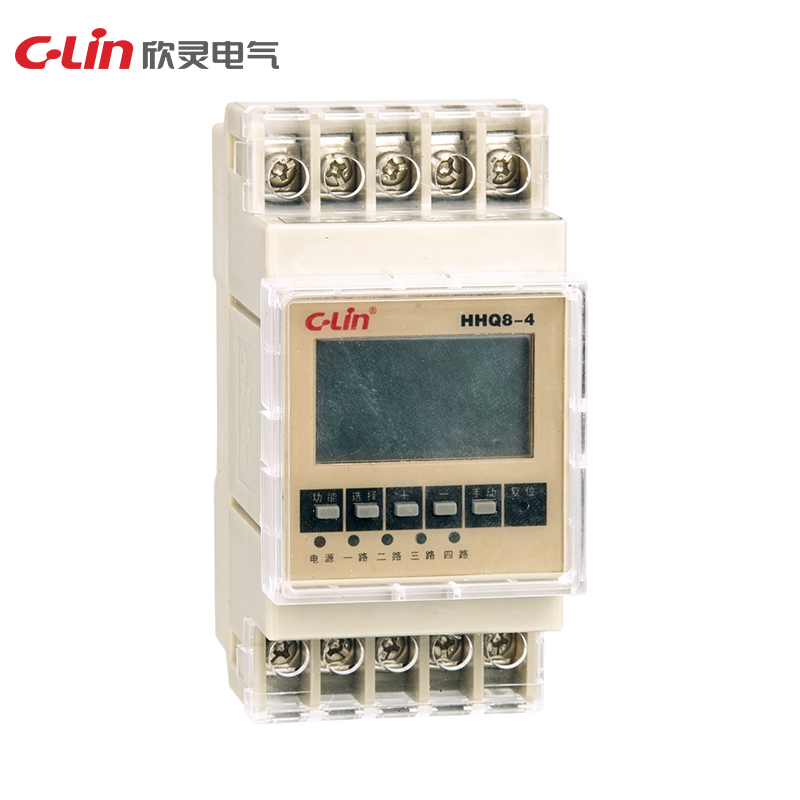

Output: HHQ8-4 is 4-way output; HHQ8-6 is 6-way output
Contact capacity: single channel ≤ 500W
Battery: built-in high-energy lithium battery
Dimensions: 49.5 × 100 × 74mm
Installation method: 35mm rail type

HHQ8-1

Speicification	HHQ8-1/HHQ8-2	HHQ8-4/HHQ8-6
Working Power	AC220V 50Hz	AC220V 50Hz
Duration of bell ringing	1m to 168h	1m to 168h
Timing error	≤±1 s/day	≤±1 s/day
Contact Form	HHQ8-1 for 16A AC250V (resistive)	Single ≤ 500W
Contact Form	HHQ8-2 for 3A AC250V (resistive)	Single ≤ 500W
Programmable number	Programmed for 40 groups of switches	Programmed for 40 groups of switches
Installation	35mm rail mounted	35mm rail mounted
Diemnsions	49.5×100×74mm	49.5×100×74mm
