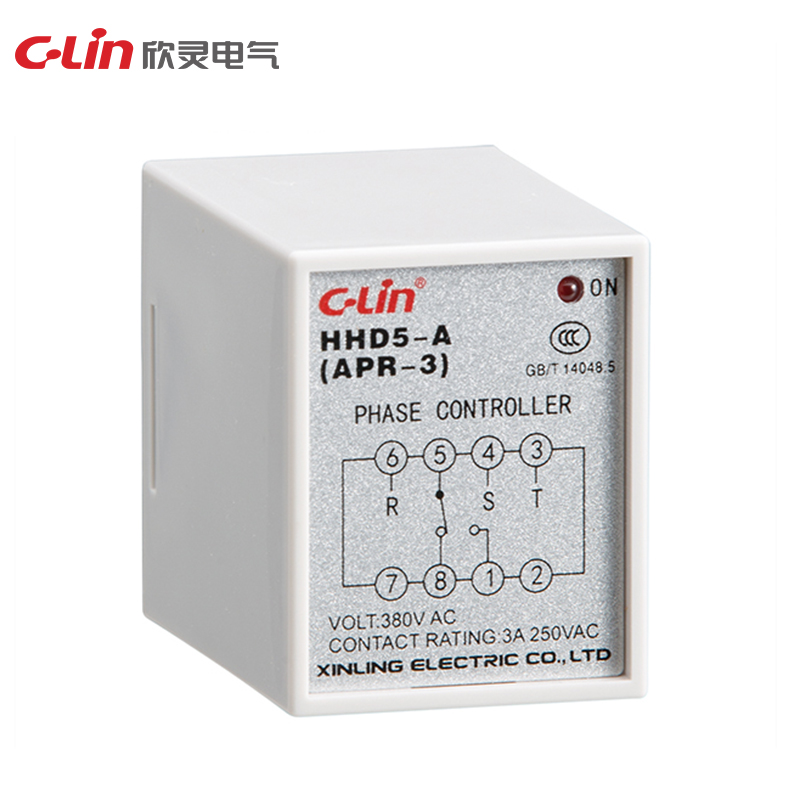

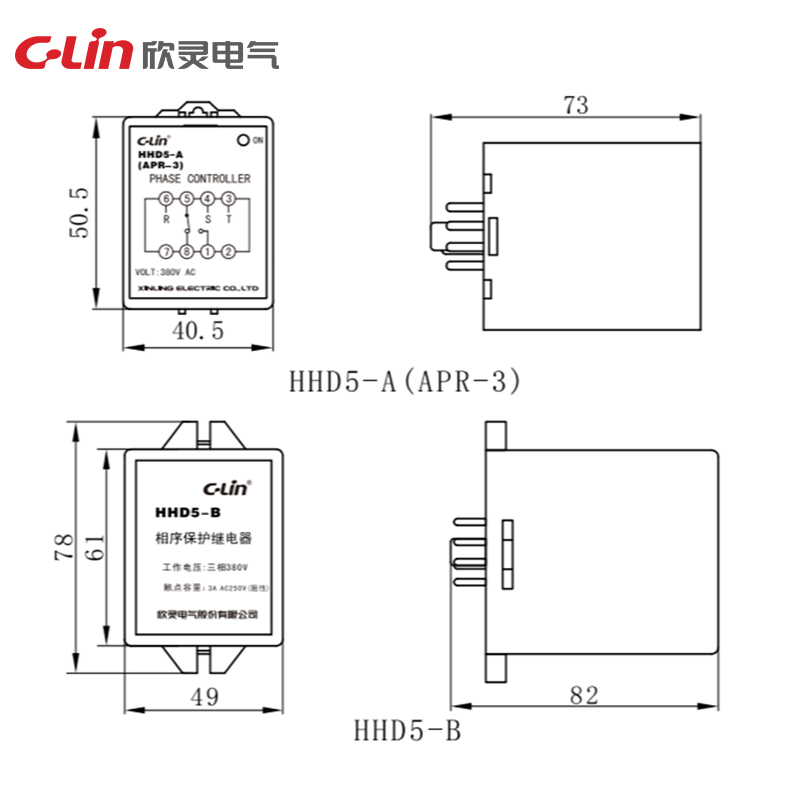

Working power supply: three-phase AC380V 50Hz
Protection function: phase sequence protection
Contact form: one normally open contact
Contact capacity: 3A AC250V (resistive)
Dimensions: 40.5×50.5×73mm
Installation method: with different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail

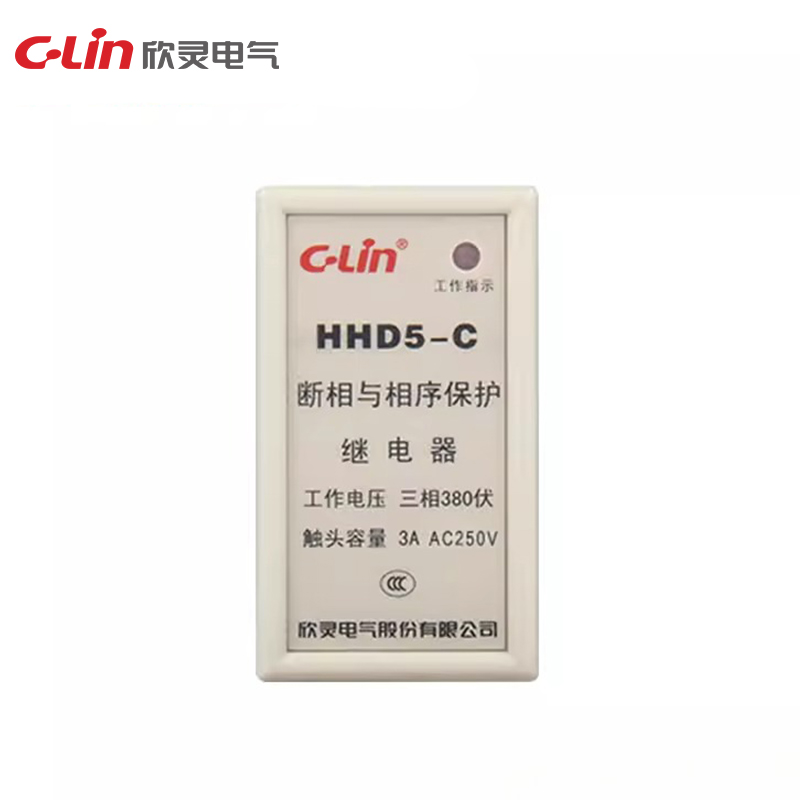

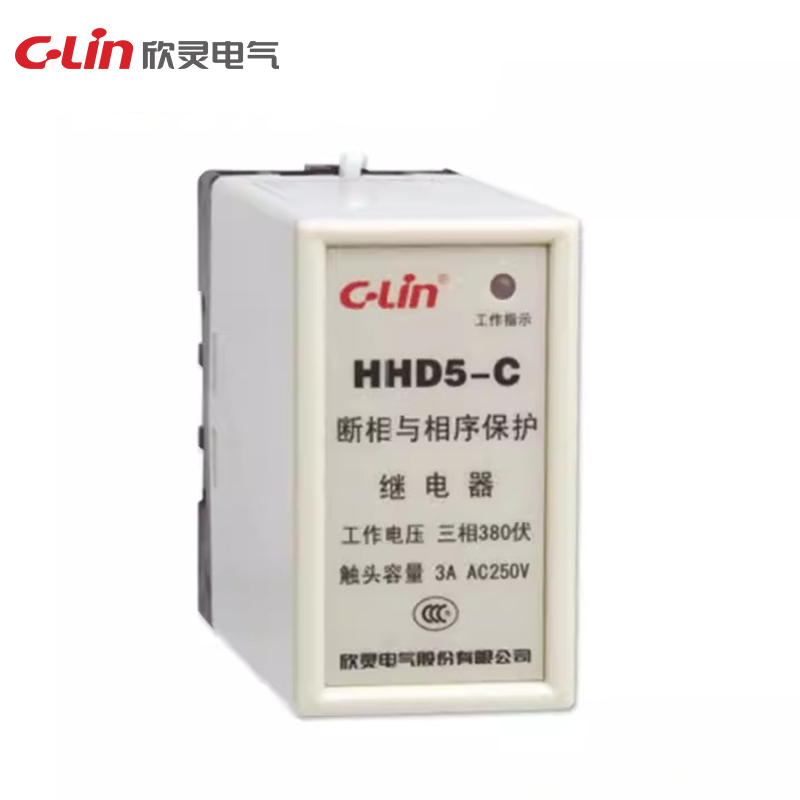

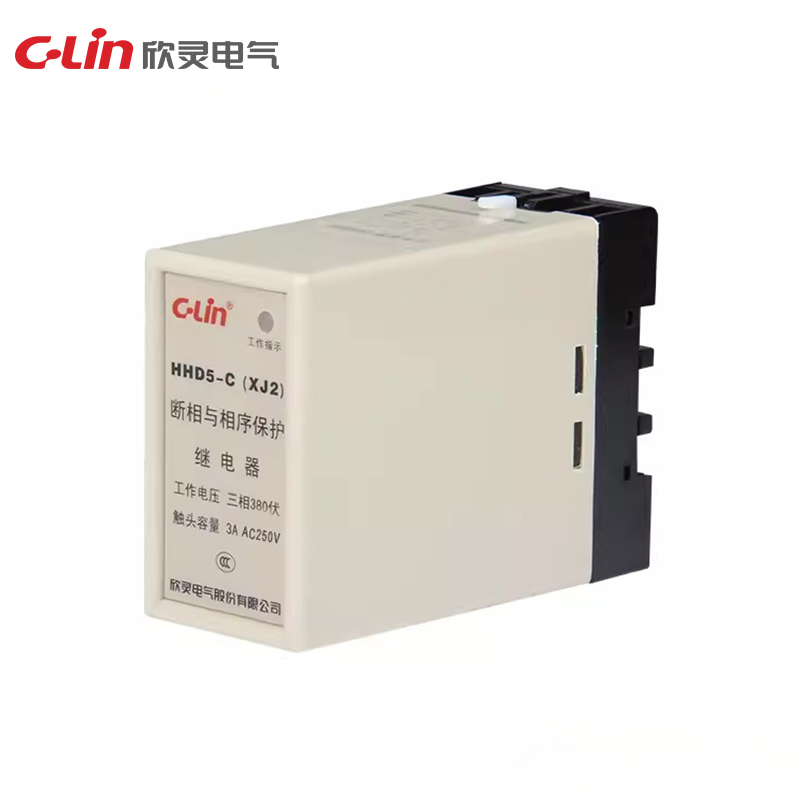

Working power supply: three-phase AC380V 50Hz
Protection function: -C: phase failure, phase sequence
-E: phase failure, phase sequence, voltage imbalance
Contact form: one normally open, one normally closed contact
Contact capacity: 3A AC250V (resistive)
Dimensions: 45×82×106mm

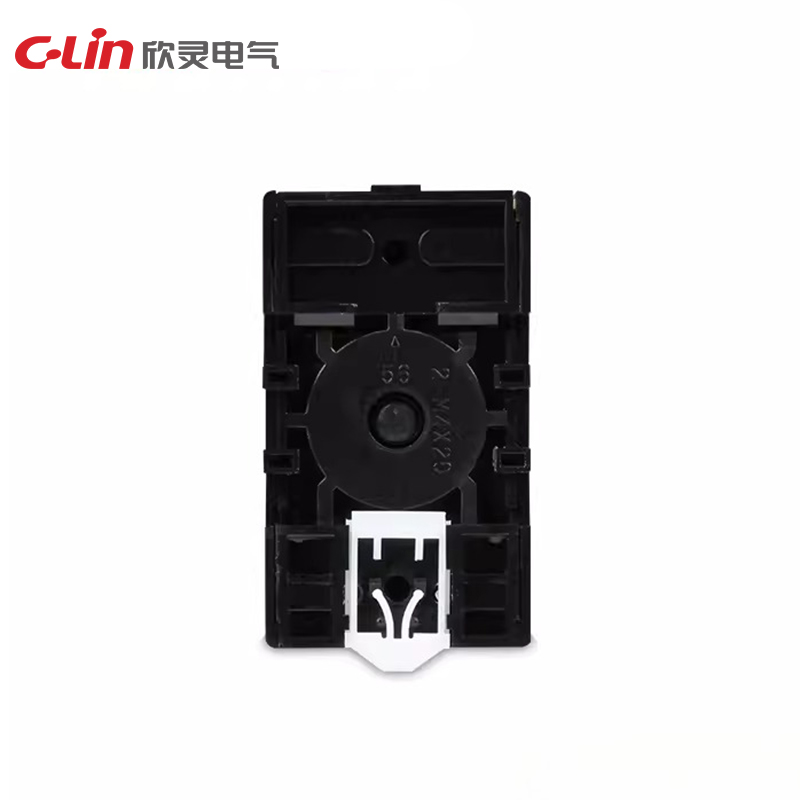

Installation method: device type or 35mm guide rail type
Alternative products: XJ2, XJ3-G, XJ5

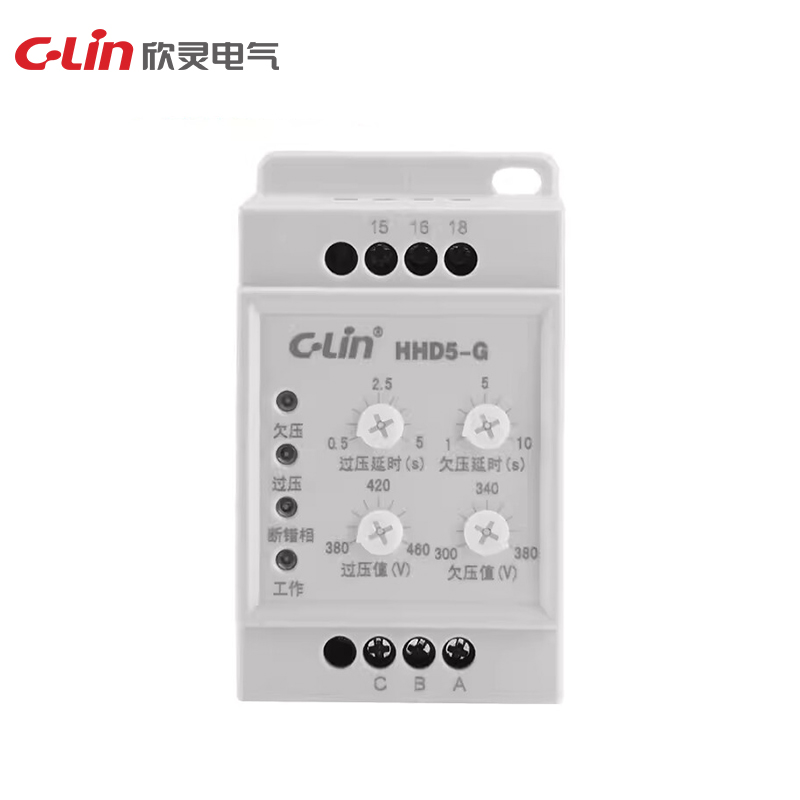

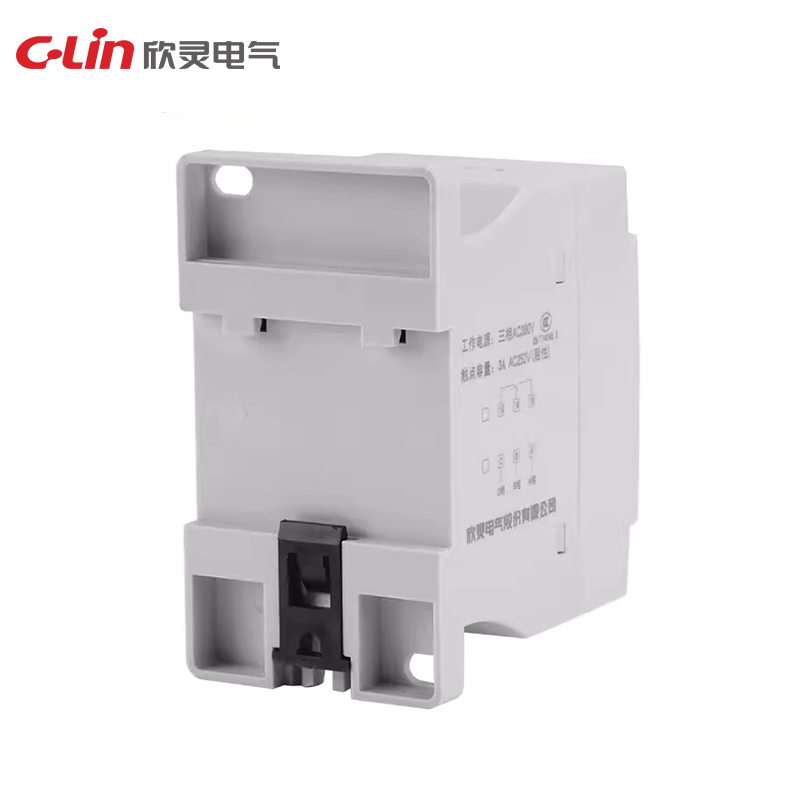

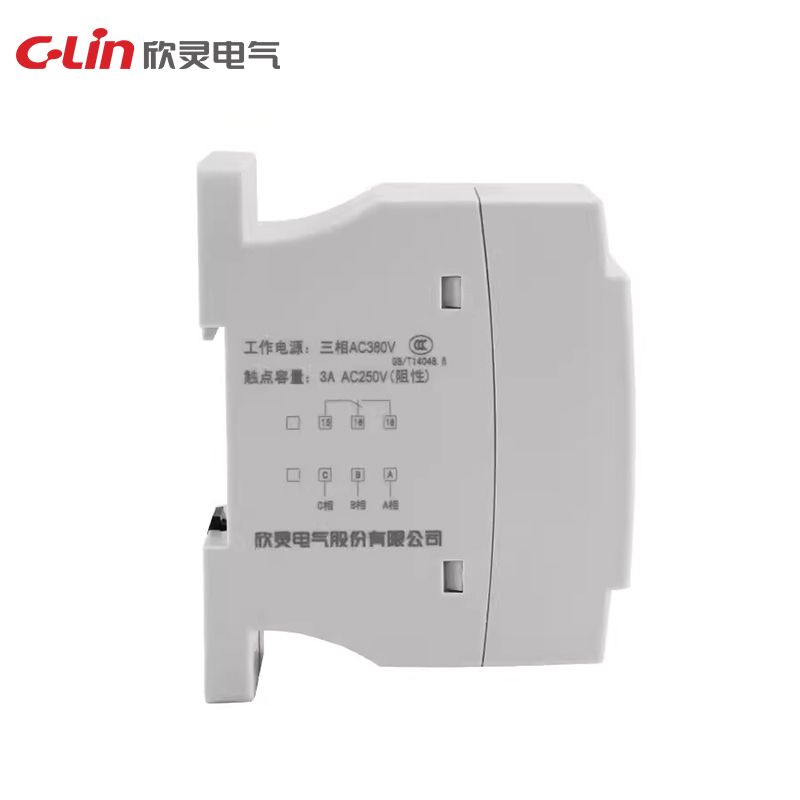

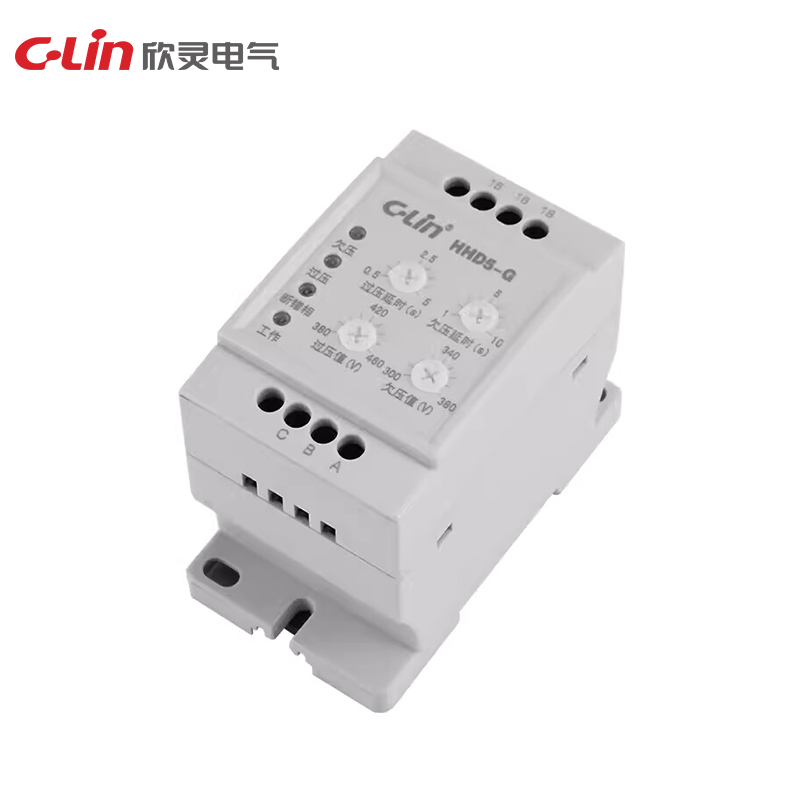

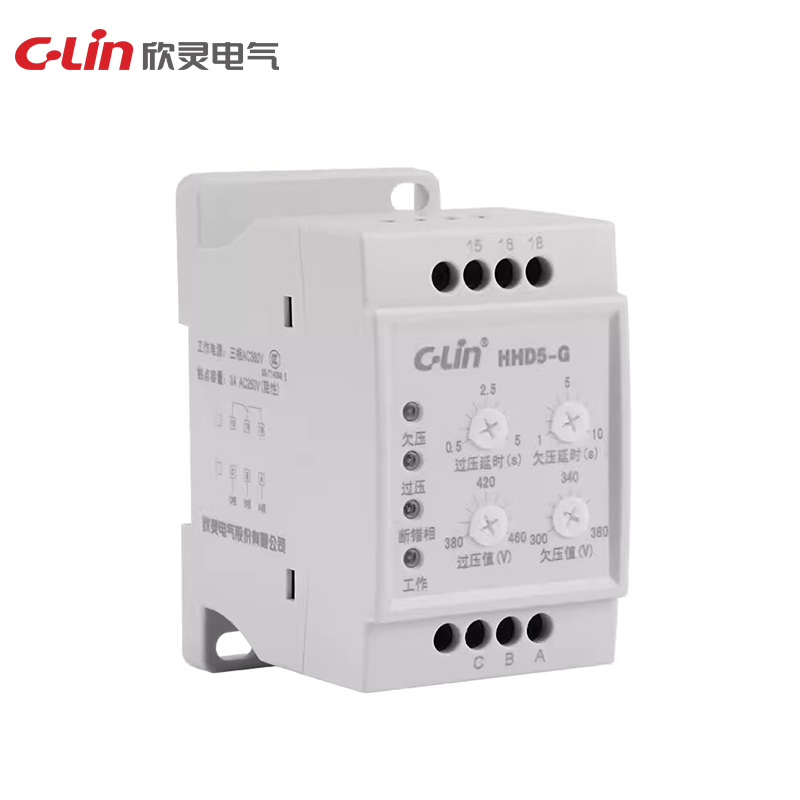

Working power supply: three-phase AC380V 50Hz
Protection function: overvoltage, undervoltage, phase failure, phase sequence, voltage imbalance
Display mode: LED indicates working status
Contact form: a set of normally open and normally closed contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 50×88×70mm
Installation method: device type or 35mm rail type
Alternative products: XJ11, ABJ1-18

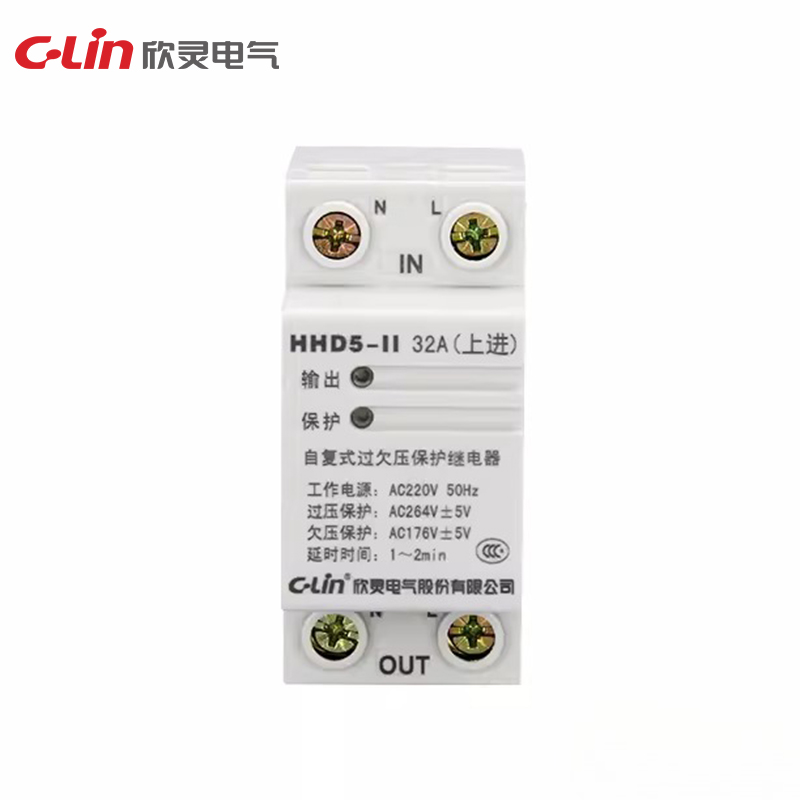

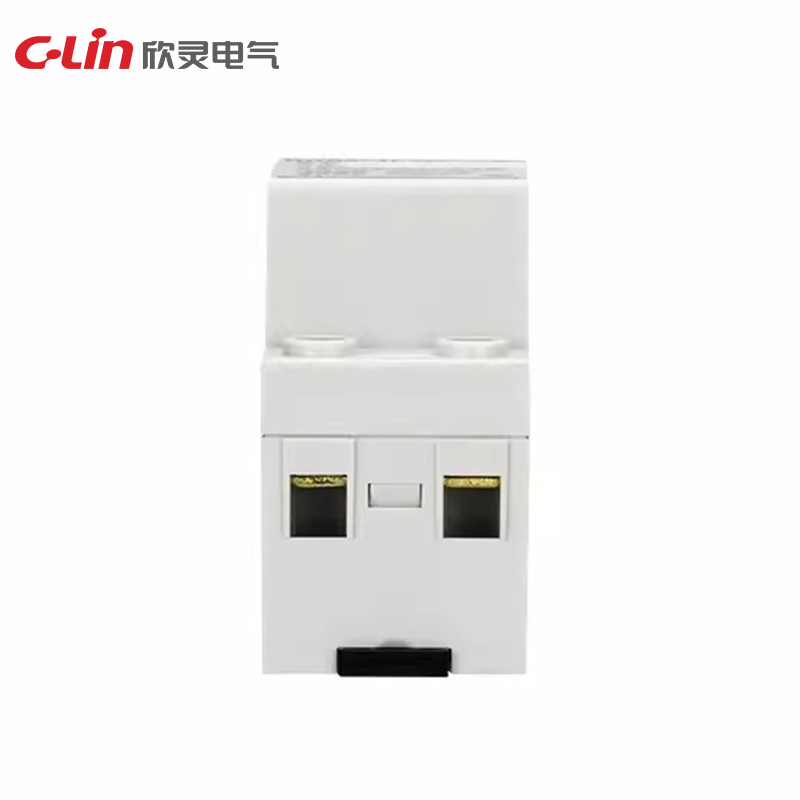

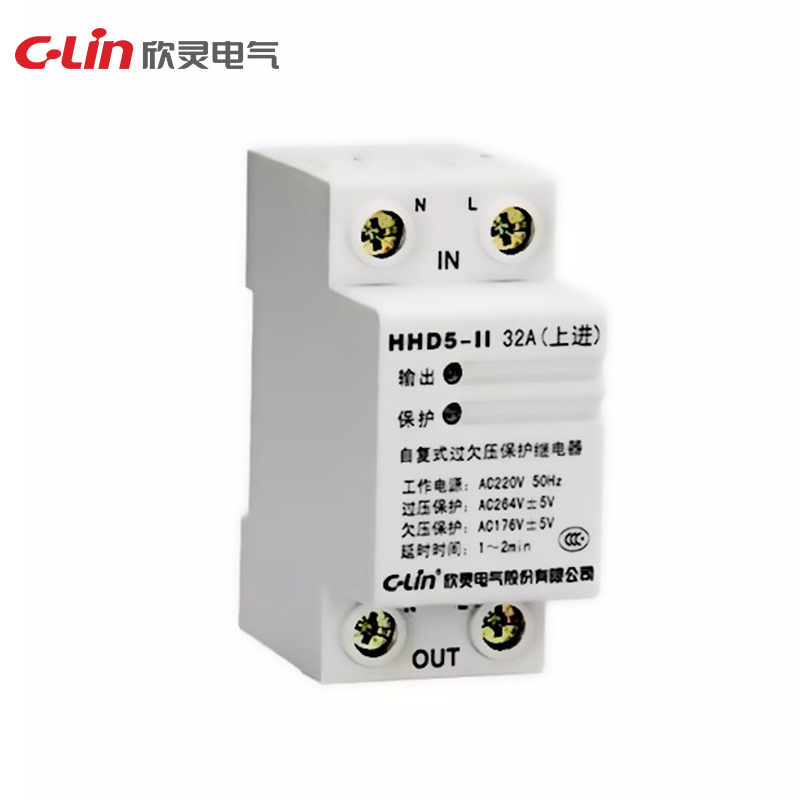

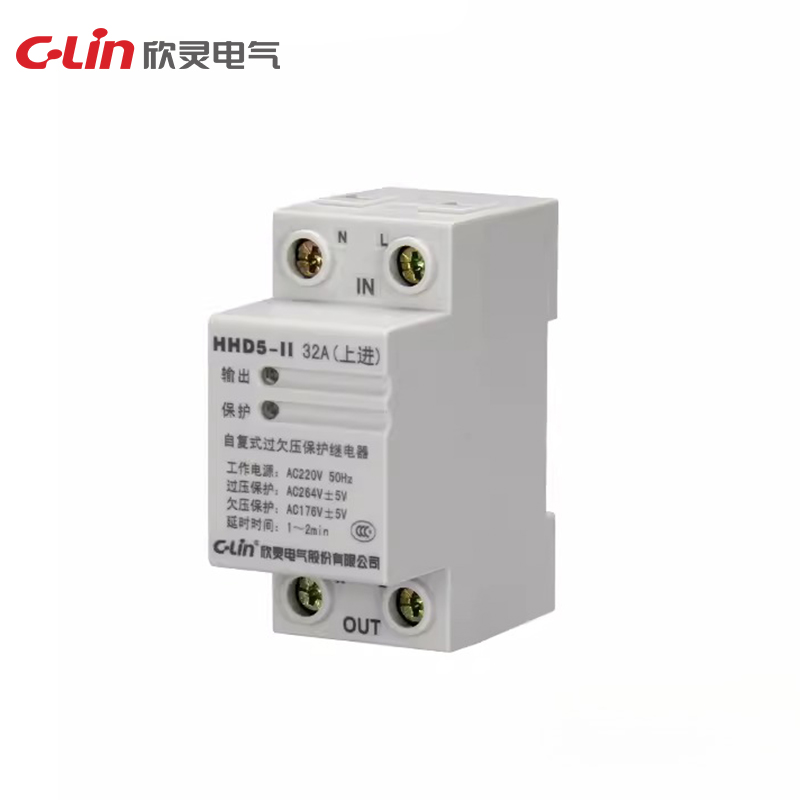

Working power supply: AC220V 50Hz
Protection function: overvoltage, undervoltage protection
Display mode: LED indicates working status
Wiring mode: top in and bottom out, bottom in and top out (to be specified)
Contact form: voltage output
Contact capacity: 32A, 40A, 60A three specifications
Dimensions: 36×80×65.5mm

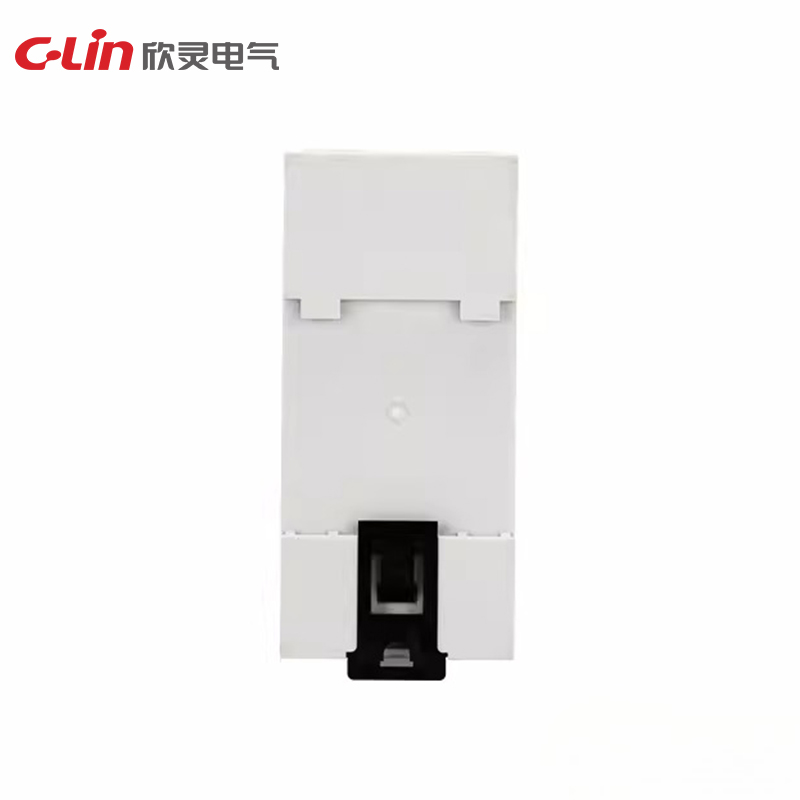

Installation method: 35mm rail type

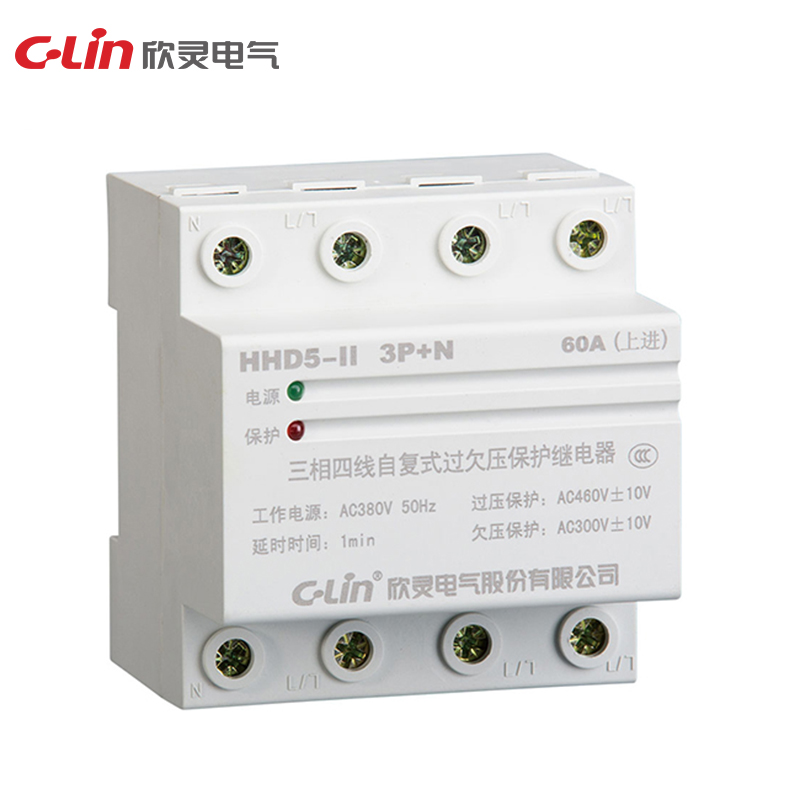

Working power supply: three-phase four-wire AC380V 50Hz
Protection function: overvoltage, undervoltage protection
Display mode: LED displays working status
Wiring mode: top in and bottom out, bottom in and top out (to be specified)
Contact form: voltage output
Contact capacity: 60A, 80A, 100A
Dimensions: 73×91.5×66mm
Installation method: 35mm rail type
HHD5-ACEG series | ||||
Model | HHD5-A (APR-3) | HHD5-C (XJ2) | HHD5-E (XJ4, XJ5, XJ6) | HHD5-G (XJ11) |
Supply voltage | Three-phase AC380V 50Hz | |||
Protection function | Phase sequence protection | Phase failure, phase sequence | Phase failure, phase sequence, voltage imbalance | Overvoltage, undervoltage, phase failure, phasesequence, voltage imbalance |
Contact form | 1 set of NO and NC contacts | 1 NO and 1 NC contact | 1 set of NO and NC contacts | |
Contact capacity | 3A AC250V(resistive) | |||
Dimension | 40.5×50.5×73mm | 45×82×106mm | 50×87.5×70mm | |
Installation method | Screw mounting type or 35mm DIN rail type |
HHD5-II series | |||||
Model | HHD5-II 40A | HHD5-II 60A | HHD5-II 3P+N 60A | HHD5-II 3P+N 80A | HHD5-II 3P+N 100A |
Supply voltage | AC220V 50Hz | 3-phase 4-wire AC380V 50Hz | |||
Protection function | Overvoltage and undervoltage protection | ||||
Display mode | LED indicates work status | ||||
Wiring method | Upper inlet lower outlet, lower inlet upper outlet (please specify) | ||||
Contact form | Voltage output | ||||
Contact capacity | 40A | 60A | 60A | 80A | 100A |
Dimension | 36×80×65.5mm | 73×91.5×66mm | |||
Installation method | 35mm DIN rail type |
