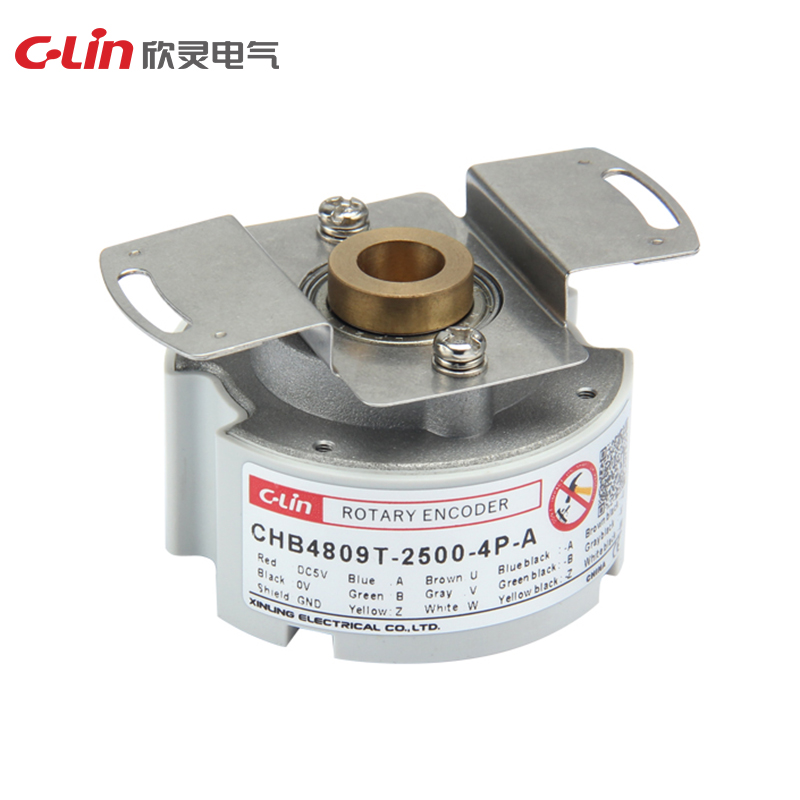

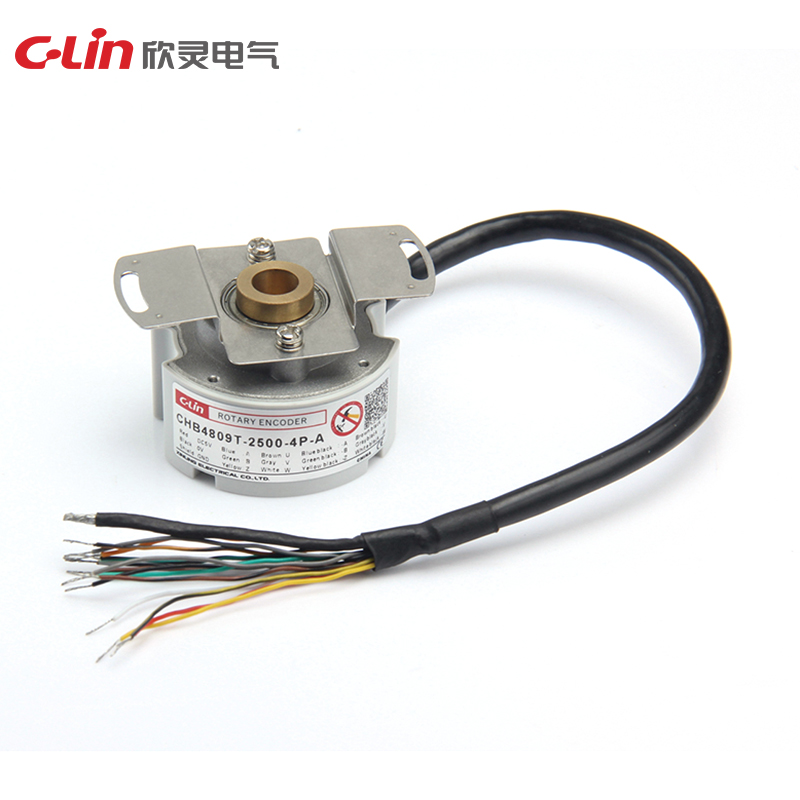

Specification model: CHB4809T-2500-4P-A
Main dimensions: outer diameter Ф48mm; cone hole Ф9mm
Working power supply: DC5V±10%
Number of magnetic pole pairs: 2P, 3P, 4P, 5P
Number of pulses: 500, 1000, 2000, 2500, 5000
Output phase: A B Z U V W
-A -B -Z -U -V -W
Outlet mode: G: Line side outlet
Application industry: Mainly used in servo motor industry, robot and other automation and semi-automation industries
CHB48T series | |
Main size | External diameter:φ48mm; Shaft diameter:φ9mm |
Working power | DC5V±10% |
Supply Voltage | 5±0.25V |
Output Method (AM26C31I) | Drive output |
Current consumption | ≤ 60mA |
VH Output Voltage | > 3.4 |
VL Output Voltage | < 3.4 |
Output phase | A,B,Z,U,V,W / -A,-B,-Z,-U,-V,-W |
Termination mode | G:Side entry cable |
Response frequency | 0-300KHz |
