In industrial automation and daily life, time relays are very important. This article will introduce the functions of several different time relays in detail so that you can choose the right time relay when you need it.
Why are Timer Relays important?
The core function of the time relay is to precisely control the electrical circuit according to the input time, realize the orderly on and off of the circuit through the preset delay, and thus coordinate the operation of the equipment, ensure the safety of the system, and improve the efficiency of operation.
Main Types of Timer Relays
Different types of timer relays depend on their timing mechanism, structural characteristics, and whether or not an electronic system is used. Therefore, we will discuss the following types of devices: on/off-delay timer relay, one shot timer relay, recycle timer relay, flasher timer relay, multifunction timer relay, mechanical timer relay, electronic timer relay, WiFi timer relay.
Timer Relays by Function
According to different functions, we divide relays into the following types:
| Type | Function | Typical Applications |
|---|---|---|
| On-Delay Timer Relay | Turns ON after preset delay once triggered | Motor startup surge protection, industrial oven preheating |
| Off-Delay Timer Relay | Stays ON for a set time after trigger signal disappears | Cooling fans after shutdown, delayed car/elevator lighting |
| One Shot Timer Relay | Outputs a single ON pulse for preset time | Automatic packaging machine single sealing action |
| Recycle Timer Relay | Cycles ON/OFF repeatedly per set period | Greenhouse irrigation, intermittent equipment operation |
| Flasher Timer Relay | Alternates ON and OFF to create flashing effect | Warning lights, fault alarms, traffic lights |
| Multifunction Timer Relay | Supports multiple modes (on-delay, off-delay, monostable, etc.) | Flexible use in automated production line process switching |

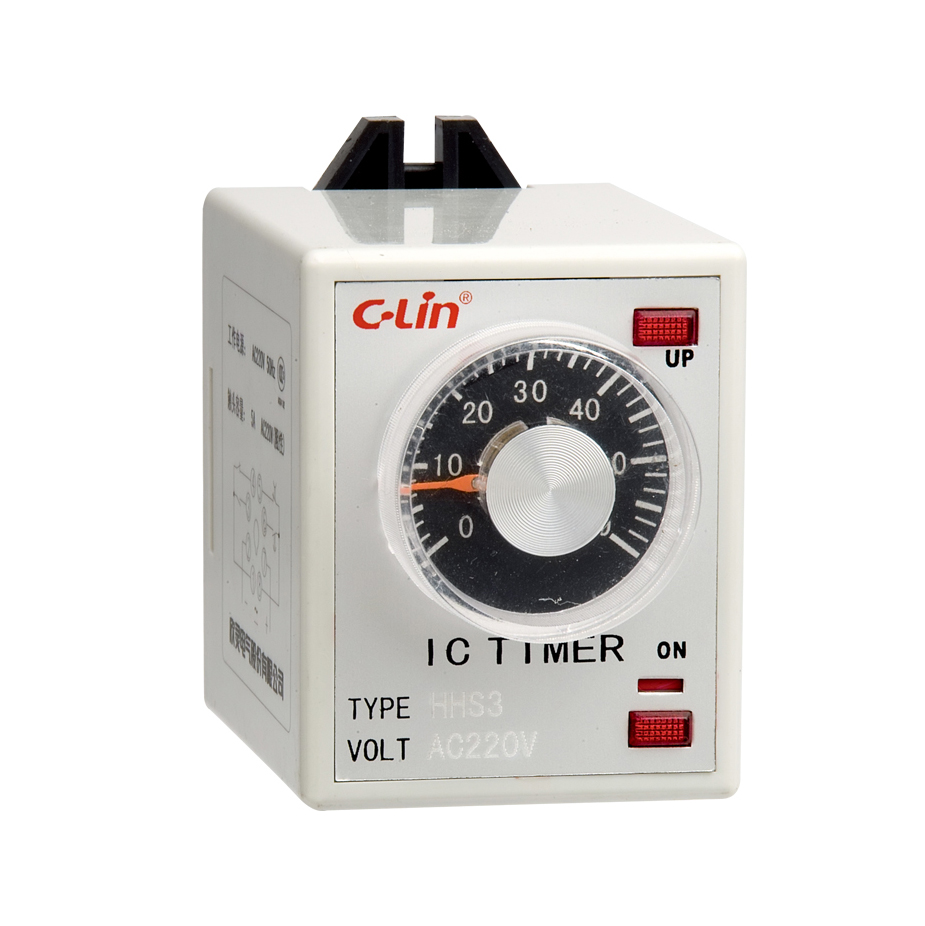

1 On-Delay Timer Relay
After the trigger signal is input, the circuit is turned on after a delay time is set, which is often used to prevent instant surge current during motor startup, and is also often used in equipment preheating and coordinated startup (such as industrial oven preheating).
2 Off-Delay Timer Relay
After the trigger signal disappears, keep the circuit on for a period of time before turning it off, which is suitable for scenarios where equipment needs to continue running after shutdown, such as delaying the shutdown of the heat dissipation fan after the oven is turned off, or delaying the shutdown of the car lighting after the elevator is stopped.
3 One Shot Timer Relay
After receiving the trigger signal, the circuit is turned on and a single pulse is output within the preset time, which is mainly used to trigger a one-time action, such as the single sealing operation of an automatic packaging machine.
4 Recycle Timer Relay
Works in a cycle according to the set “on-off” period, which can realize the intermittent operation of the equipment, such as watering the greenhouse irrigation system at a set time.
5 Flasher Timer Relay
Switches the circuit between ON and OFF states, producing a periodic flashing effect, commonly used in warning lights (such as warning lights for engineering vehicles, fault alarm lights) and the alternating on and off of traffic lights.
6 Multifunction Timer Relay
Can realize various functions such as power-on delay, power-off delay, and monostable through mode switching, can flexibly adapt to different scenarios, and are suitable for devices that need to frequently adjust their working modes, such as process switching in small-scale automated production lines.
Timer Relays by Structure
According to the structure, we list a few relays below:
| Type | Features | Applications |
|---|---|---|
| Mechanical Timer Relay | Mechanical timing, strong anti-interference, low precision | Old washing machine program timers, simple low-precision control |
| Electronic Timer Relay | High-precision electronic timing | Precision machine tools, strict machining steps |
| WiFi Timer Relay | Wireless remote control via APP, programmable | Smart home: curtain timers, water heater control |
1 Mechanical Timer Relay
Relies on mechanical structure to time, has strong anti-interference ability but lower precision, suitable for simple scenes with low precision requirements, such as the washing program timer of an old washing machine.

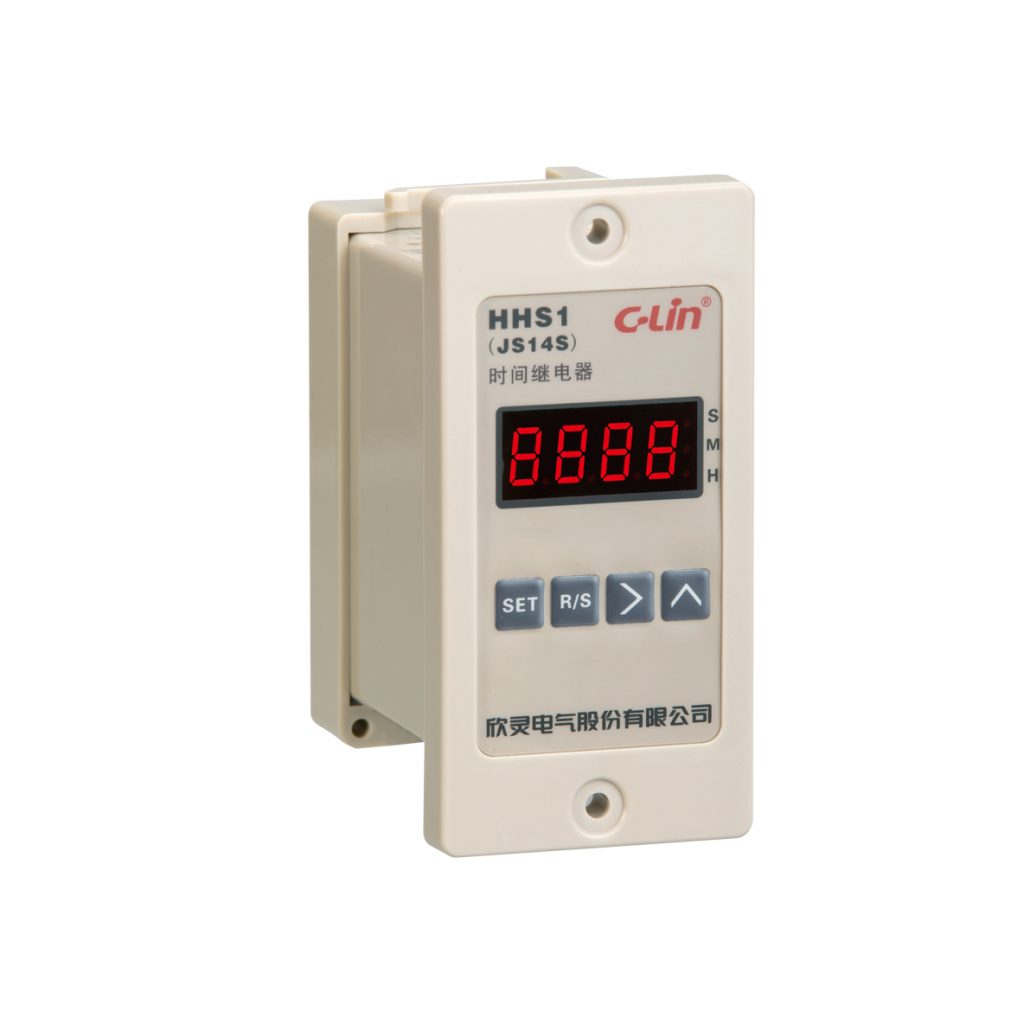

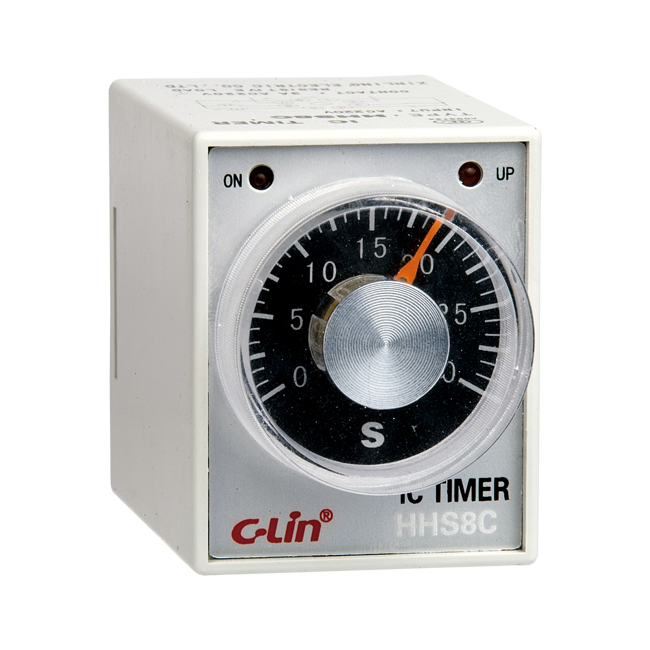

2 Electronic Timer Relay
Achieves high-precision timing through electronic components, suitable for occasions with strict time control requirements, such as the timing of machining steps in precision machine tools.
3 WiFi Timer Relay
Supports wireless remote control and programming, can set time through mobile phone APP, widely used in smart home (such as timer switch curtains, remote control water heater start and stop).
How to Choose the Right Timer Relay for Your Application
Load capacity: Ensure that the output contacts of the relay can withstand the current and power of the connected electrical appliances, such as motors and lamps. Check the maximum switching current and voltage rating to prevent contact damage.
Environmental adaptability: assess the working environment, including temperature, humidity range, dust and vibration levels. Choose a relay with the appropriate level of protection.
Conclusion
In summary, time relays can be divided into many types according to their functions and structures, each with its own applicable scenarios. They are indispensable in industrial automation and daily life. Choosing the right time relay can ensure the safety of circuit systems and improve the efficiency of work operations. With C-Lin’s reliable and innovative time relay solutions, you can achieve smarter and safer control.
