In the field of industrial automation and electrical control systems, time relays play a key role in achieving precise timing, sequential operation, and efficient circuit control. This article will explore time relays in depth, analyzing their definitions, working principles, application scenarios, and how to choose suitable products for specific needs.
What is a Timer Relay?
A timer relay is a device that controls the time of an electrical event and opens or closes a contact at a predetermined time delay. Unlike ordinary relays that respond immediately to the trigger signal, timer relays will operate the electrical system precisely according to the input command.
The Working Principle of a Time Relay
The working principle of a time relay is to receive an input signal (such as a voltage or current pulse) and, after a preset time delay, trigger its output contact to operate, thereby controlling the on-off of the circuit it is connected to.
Understanding the Time Relay Diagram

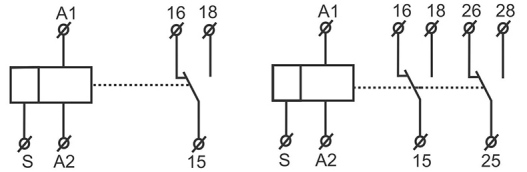

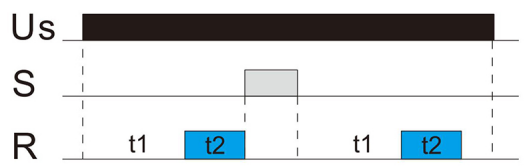

When the relay (A1-A2 ) is energized, the delay starts, After the delay t1, the relay moves (15-18 on), and the delay t2 starts. The relay is disconnected (15-16 off) when the next relay is disconnected. S is the reset terminal. If A1-S is connected, the relay can be reset, and if A1-S is disconnected, the relay starts to delay again.
What is the purpose of a timing relay?
The main purpose of the time relay is to input a specific time during the operation of the circuit, so as to realize the coordinated, sequential or periodic function of the circuit.
Common Applications of Time Relays
Because time relays can control the timing of electrical circuits, they are used in many fields:
Manufacturing: synchronizing conveyor belts, controlling machine cycles, and managing the sequence of production lines.
Smart home: Automate lighting systems, adjust air conditioning operation time, and control household appliances.
Power system: regulate power distribution, precisely control the start-up of power sources, and protect circuits from overload.
Packaging and textile industry: control the time of sealing, cutting and feeding process.
Railway and military fields: Ensure the precise operation of signal systems, equipment start-up, and safety protocols.
Choosing the Right Time Relay for Your Application
Several factors need to be considered when choosing a suitable time relay:
Timing range: Determine the required delay interval (milliseconds to hours) based on the application.
Voltage compatibility: Ensure that the relay matches the input and load voltage (AC or DC) of the system.
Accuracy: For critical applications, choose high-accuracy relays.
Environmental factors: considering temperature, humidity, and vibration resistance, especially in industrial environments.
Output type: Choose according to the switching requirements of the circuit.
FAQs
How to test a timing relay?
To test the time relay, you can connect it to a power source that matches its voltage rating, And connect the indicator (such as the light bulb) to its output contact, then input the experimental signal, measure the time required for the output switch using a stopwatch, and finally compare the measured delay with the preset time to verify the accuracy.
What is the difference between a relay and a timer?
The primary difference between a standard relay and a timer relay is that a standard relay operates immediately upon receiving an electrical signal, whereas a timer relay introduces a delay before activating or deactivating its contacts.
How to set a time delay relay?
The method of setting the delay relay varies depending on the type and brand, and there are several common ways to set the time:

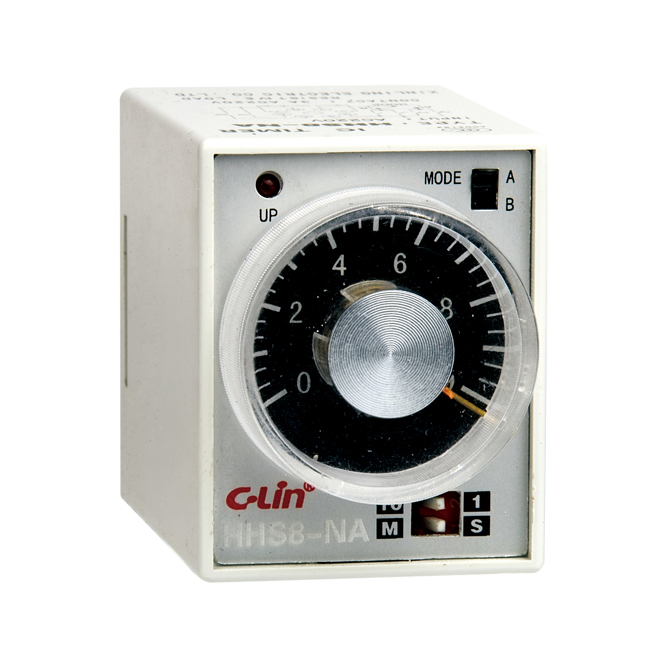

Knob-adjustable: There will be one or more knobs on the outer casing of the relay. Each knob corresponds to a different time range, and users can choose the appropriate knob according to the desired delay time, and then adjust the time precisely by rotating the knob.

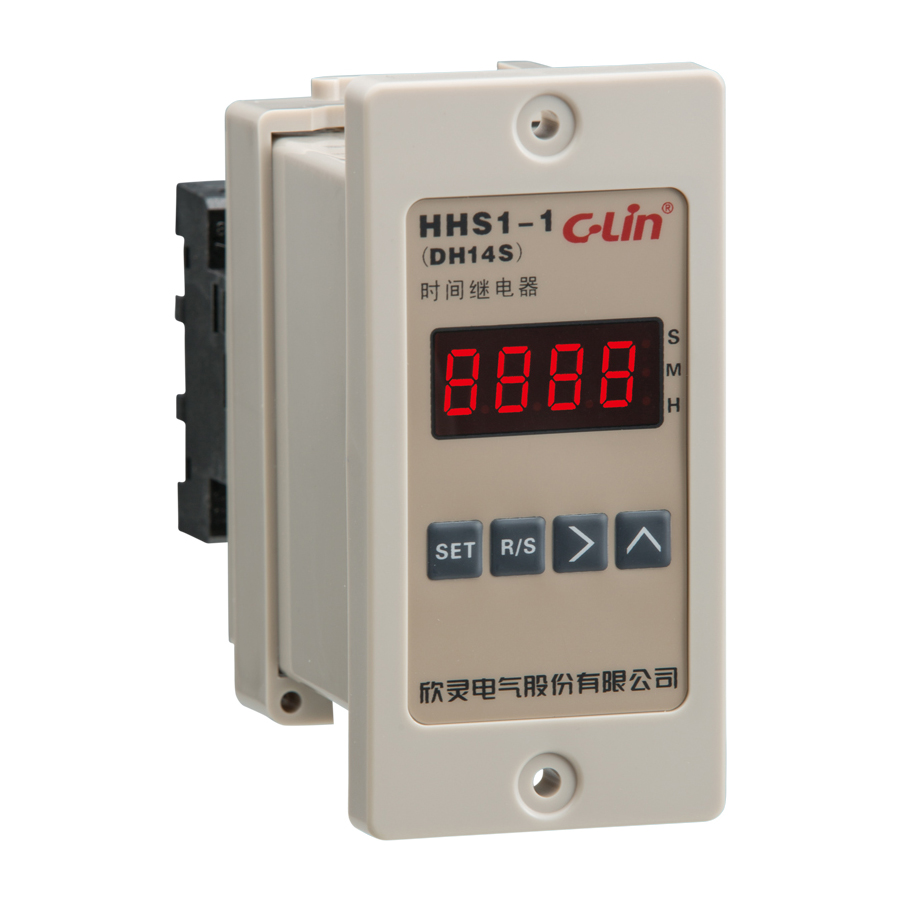

Digital keypad input: The relay is equipped with digital keys and a display. The user presses the corresponding number key, enters the desired delay time on the display screen, and then presses the confirmation key to complete the setting.
What is the symbol for a time delay relay?
The symbol of a delay relay usually includes a standard relay symbol (a rectangle with contacts) with an internal diagonal line or a “T” to indicate the timing function. Different types of delay have different variants (e.g., arrow-headed lines for power-on delay).
How do I troubleshoot a time relay that isn’t working?
First, check the power supply to ensure it matches the voltage rating of the relay (e.g., 240V for time delay relay 240v). If there is no problem with the power supply, check whether the wiring connection is loose or damaged, and confirm whether the input signal reaches the relay. If the relay still does not work properly, you can test the continuity of the output contacts with a multimeter.
Conclusion
Time relay is very important in precise electrical control. By understanding its working principle, we can better use it in actual work. Choosing the right time relay can effectively improve work efficiency and safety.
