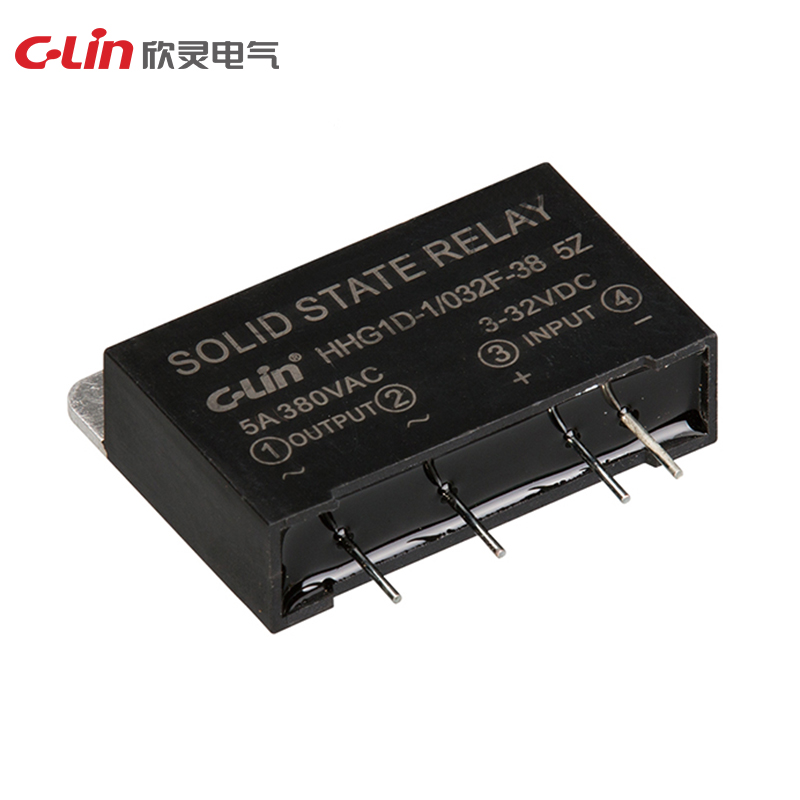

Solid state relays are essential electronic switching devices used across industries. They control circuits without moving parts, offering reliability and precision. However, like any electronic component, SSRs can encounter issues that disrupt their performance. If you have related troubles, why not take a look at this blog? Maybe the confusion in your heart can be solved.
Common Solid State Relay Problems & Their Causes
Understanding the most frequent SSR issues is the first step toward fixing them. Here are the key problems to watch for.
1. SSR Fails to Turn On (Open Circuit)
When an SSR won’t activate despite a control signal, it typically indicates an open circuit in the output. Possible causes include.
•Damage to the semiconductor switching element from electrical stress.
•Poor electrical connections in the input or output wiring.
•Mismatch between the SSR’s ratings and the application requirements.
•Insulation breakdown due to environmental factors or wear.
2. SSR Fails to Turn Off (Stuck On/Short Circuit)
If the SSR remains on even after the control signal is removed, a short circuit or “stuck on” issue is likely. Common triggers include.
•Residual voltage lingering in the load circuit.
•Leakage current in the input or output paths.
•Noise interference from nearby inductive devices such as motors, transformers.
•Degradation of internal components from overvoltage or overcurrent events.
3. SSR Turns On and Off Randomly
Erratic switching, flickering or unexpected on/off cycles often stems from unstable input signals or external interference. Causes may include.
•Fluctuations in the control signal such as weak or inconsistent voltage.
•Electromagnetic interference from nearby power lines or machinery.
•Loose connections in the wiring that create intermittent contact.
•Sensitivity to temperature changes in the operating environment.
4. Overheating
Excessive heat is a common and critical issue for SSRs, as it can accelerate component wear and lead to failure. Potential reasons include.
•Inadequate heat dissipation such as missing or poorly installed heat sinks.
•Poor electrical connections creating resistance, which generates heat.
•Operating the SSR beyond its recommended load limits.
•High ambient temperatures in the installation area.
5. Reduced Lifespan
While SSRs are designed for long life, premature failure can occur due to.
•Repeated exposure to voltage spikes or surges.
•Inconsistent or unstable power supply to the control circuit.
•Poor installation practices such as incorrect mounting, tight wiring bends.
•Exposure to dust, moisture or corrosive substances over time.
Step-by-Step Troubleshooting Guide
Follow these steps to diagnose and resolve SSR issues systematically.
Step 1: Visual Inspection
Start with a physical check of the SSR and its surroundings.
•Look for signs of damage such as discoloration, burn marks or cracked casings, which are indicators of electrical stress or overheating.
•Inspect wiring connections to ensure they’re secure and free from corrosion or looseness.
•Check for environmental factors. Is the SSR exposed to dust, moisture or extreme temperatures?
Step 2: Check the Control Signal
A weak or missing control signal is a frequent culprit. Verify.
•The input voltage source such as DC or AC is functioning correctly and matches the SSR’s requirements.
•The control circuit such as switches, sensors is sending a consistent signal to the SSR’s input terminals.
•There’s no interference in the control line. Try disconnecting nearby devices temporarily to rule out EMI.
Step 3: Test the Load Circuit
A faulty load can mimic SSR issues. To isolate the problem.
•Disconnect the SSR from the load and test the load separately such as a motor or heater to ensure it operates correctly on its own.
•Check for short circuits in the load wiring that might be causing the SSR to trip or fail.
•Ensure the load type such as resistive, inductive is compatible with the SSR’s design. Some SSRs are optimized for specific load types.
Step 4: Test the SSR’s Output
If the control signal and load are working, test the SSR itself.
•With the control signal applied, check if the SSR’s output terminals are conducting, which indicates it’s “on”.
•When the control signal is removed, confirm the output terminals stop conducting, which indicates it’s “off”.
•If the SSR fails these tests, it may have internal damage such as a burnt semiconductor that requires replacement.
Step 5: Verify Thermal Management
Overheating often relates to heat dissipation. Check.
•The heat sink if used is properly attached to the SSR with thermal compound, ensuring good heat transfer.
•The installation area has adequate ventilation. Cluttered or enclosed spaces can trap heat.
•The SSR isn’t sharing a heat sink with other heat-generating components, which could overload its cooling capacity.
When to Replace Your Solid State Relay
If troubleshooting reveals.
•Visible damage such as burns, cracks to the SSR.
•Consistent failure to switch correctly even after fixing wiring or control signals.
•Overheating that persists despite improved thermal management.
It’s likely time to replace the SSR. Always choose a replacement that matches the original’s specifications including input/output type, load compatibility and environmental ratings.
Tips to Avoid Future SSR Problems
Preventing issues is easier than fixing them. Follow these practices.
•Ensure the SSR is properly rated for your application including load type, voltage and environmental conditions.
•Use protective components such as surge suppressors, fuses to shield the SSR from voltage spikes or overcurrent.
•Maintain clean, secure wiring to minimize resistance and interference.
•Regularly inspect heat sinks and ventilation to ensure effective cooling.
•Avoid exposing the SSR to dust, moisture or extreme temperatures by installing it in a protected enclosure when needed.
Conclusion
Solid state relays are reliable, but they’re not immune to issues. By identifying common problems like failure to switch, overheating or erratic behavior and following a systematic troubleshooting process, you can quickly pinpoint the cause. I hope you can gain something and resolve your troubles after reading this article.
