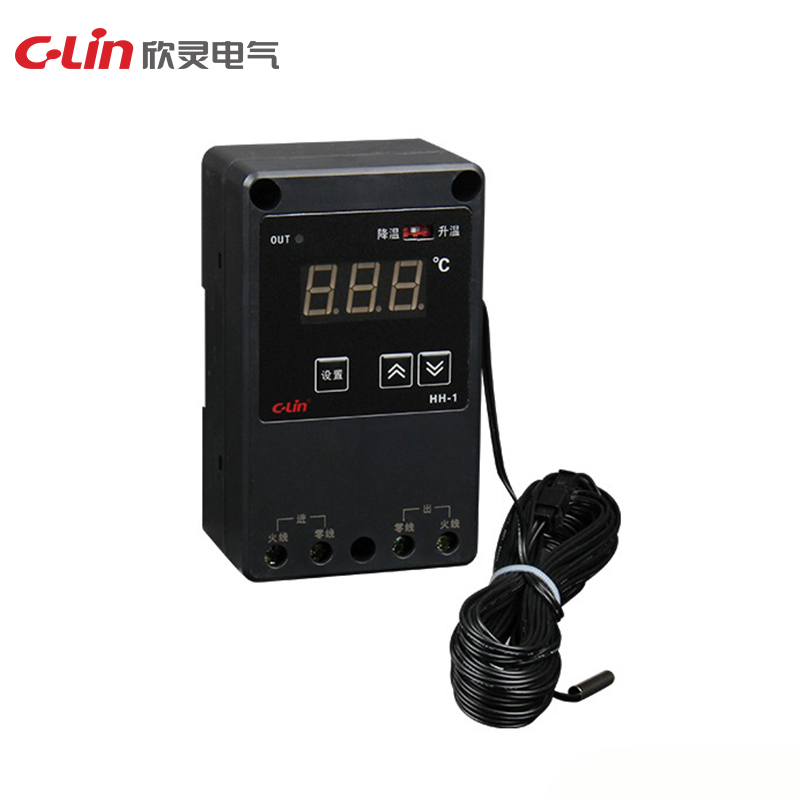

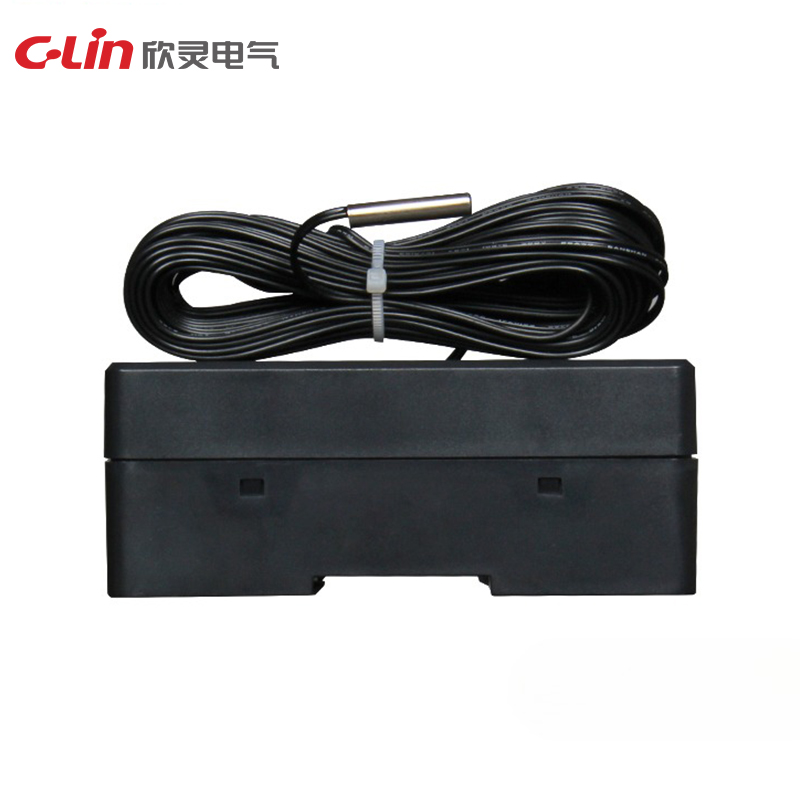

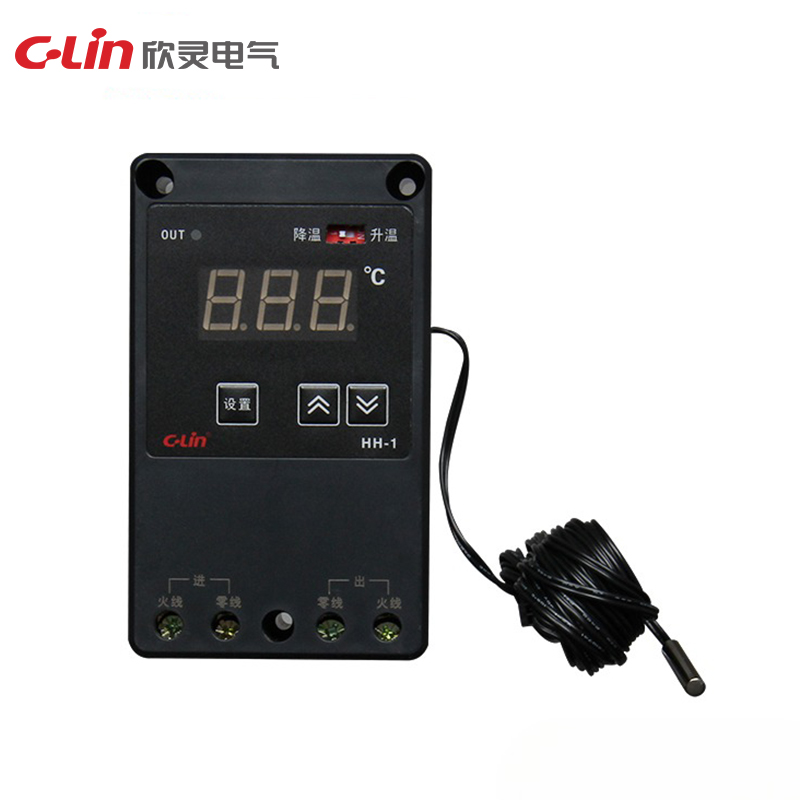

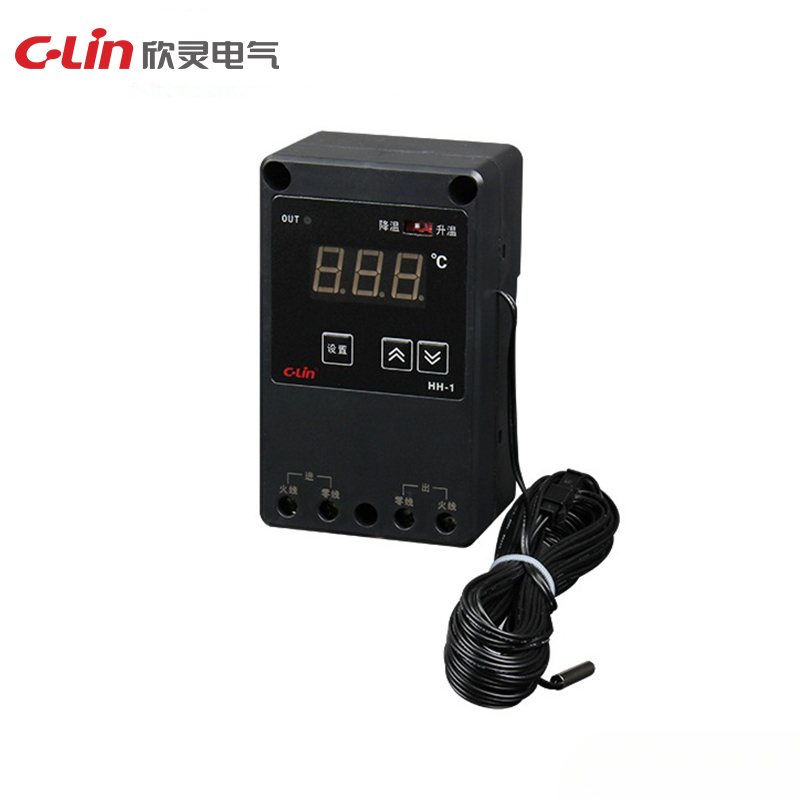

Input signal: thermistor (special sensor, wiring)
Resolution: ±0.1℃
Control mode: P1: single limit, P2: double limit
Range: -40~99.9℃
Power supply: AC220V/50Hz
Dimensions: 72×120×46mm

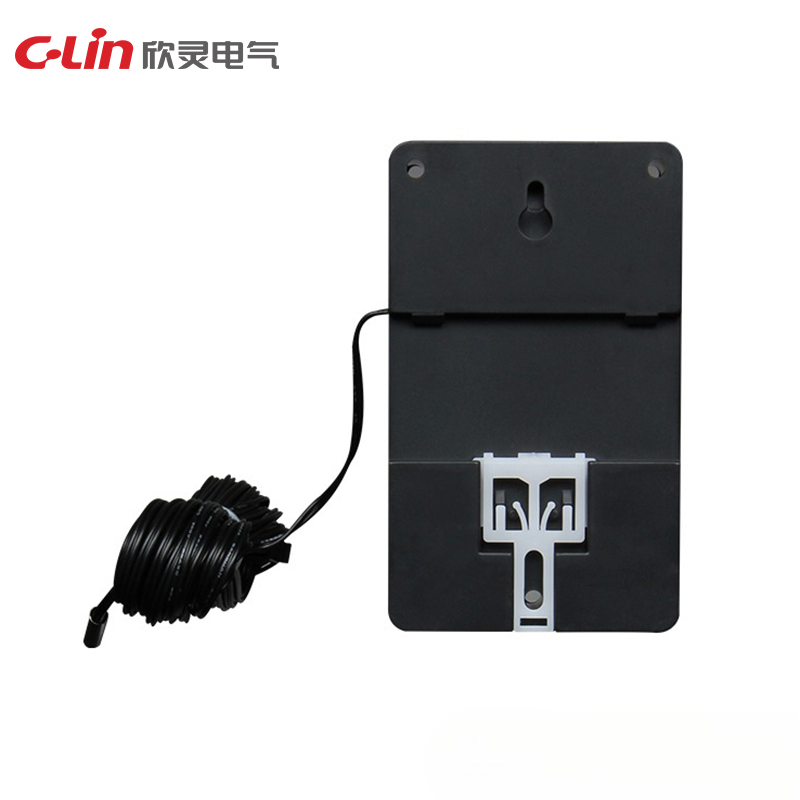

Installation: guide rail, wall suction, hanging
Typical applications: farms, hatchery, water temperature control, complete cabinets
Working power supply: AC220V Power consumption ≤2W
Control mode: heating dehumidification, cooling dehumidification
Control range: start dehumidification when ambient humidity ≥93%RH
Stop dehumidification when ambient humidity ≤75%RH
Temperature can be set by potentiometer (hysteresis 5℃)
Contact capacity: 5A AC220V (resistive)
Dimensions: 48×48×114mm
Opening size: 45×45mm
Installation method: panel type, guide rail type
Typical application: used for temperature and humidity control in distribution cabinets, transformer boxes, complete sets of equipment, etc.

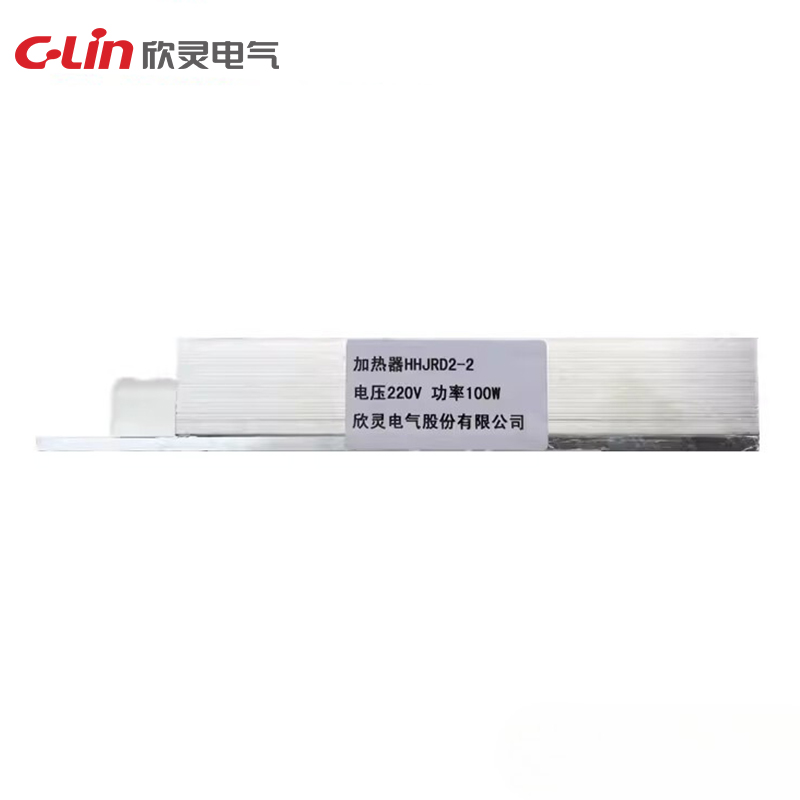

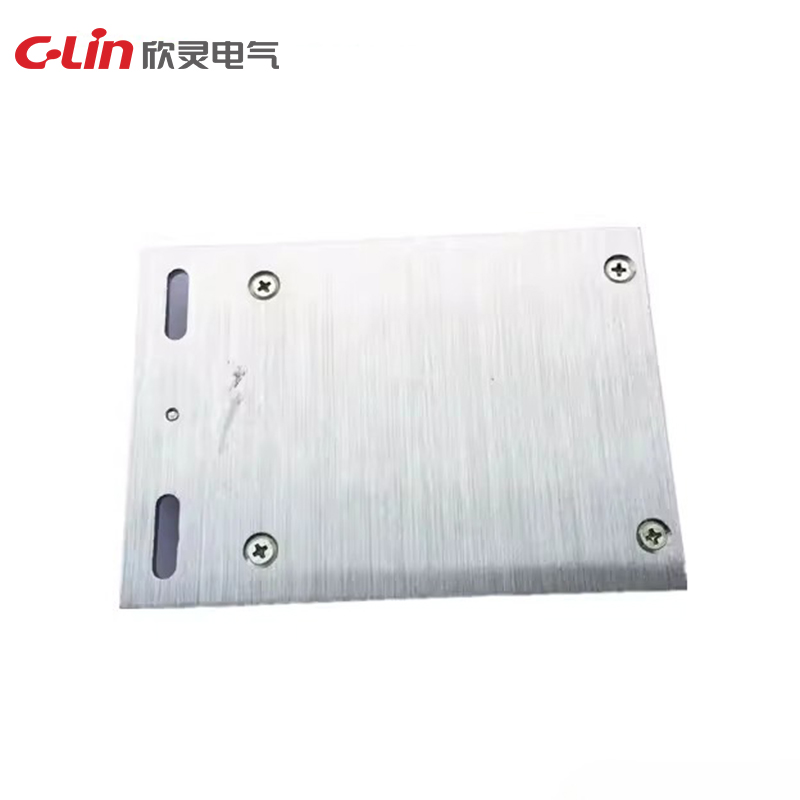

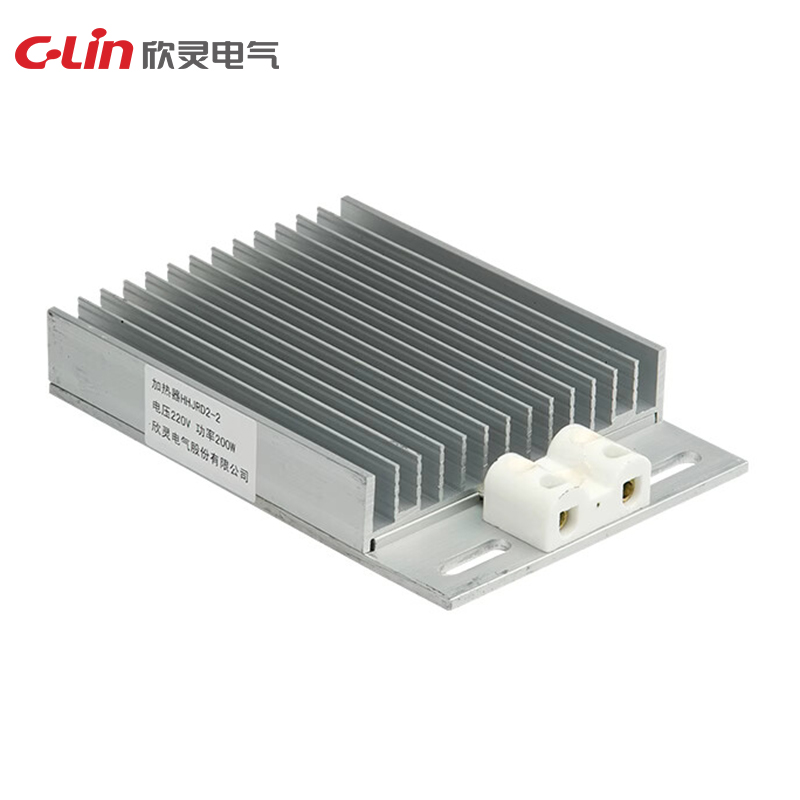

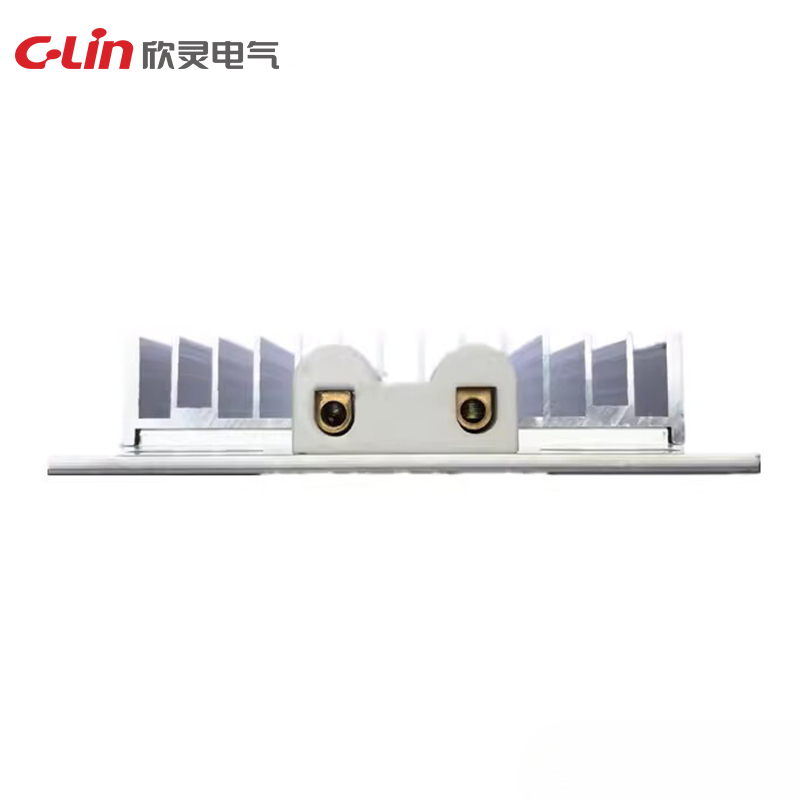

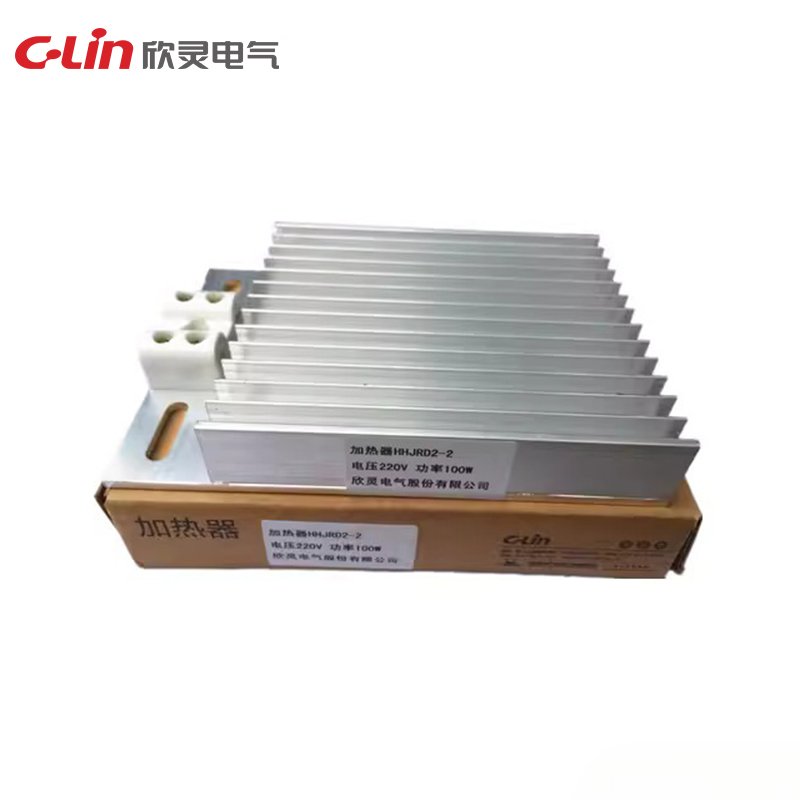

Power: 100W, 150W
Material: Aluminum alloy profile
Dimensions: 158×100×22mm
Positioning hole center distance: 134×58mm
Working voltage: AC220V
Typical application: TDK0302 and HH-1DG temperature and humidity controller are used together, suitable for low-temperature heating and moisture-proof dehumidification of power equipment
Culturing farm, hatching,
water temperature control,
switchgear assembly

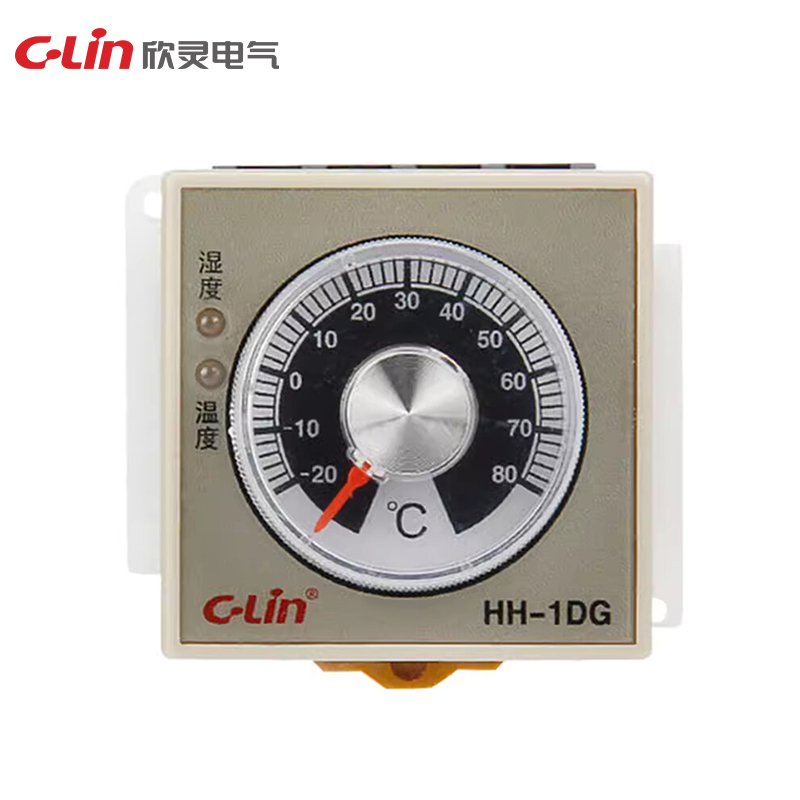

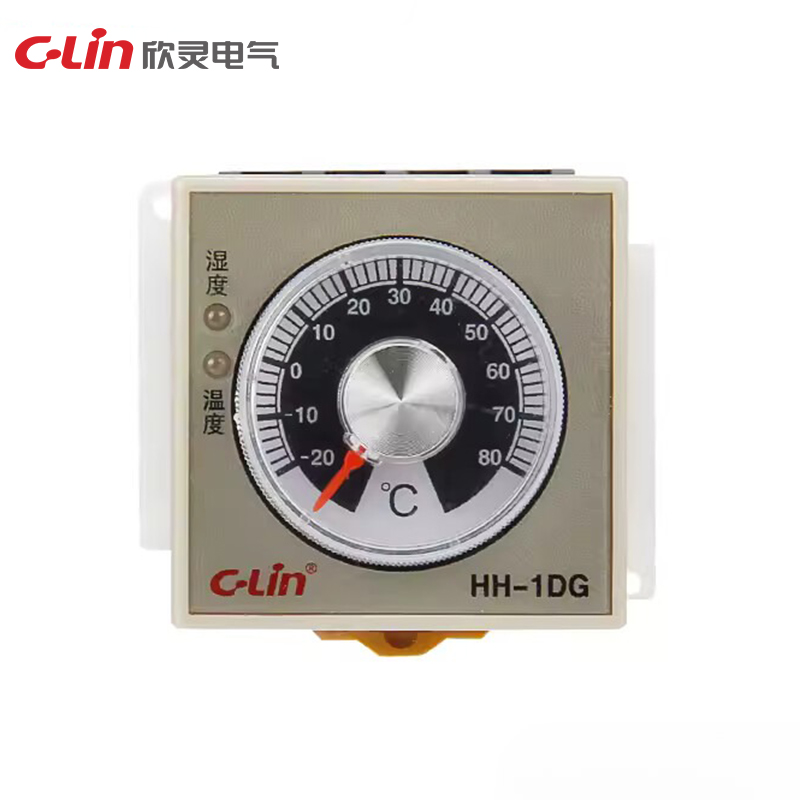

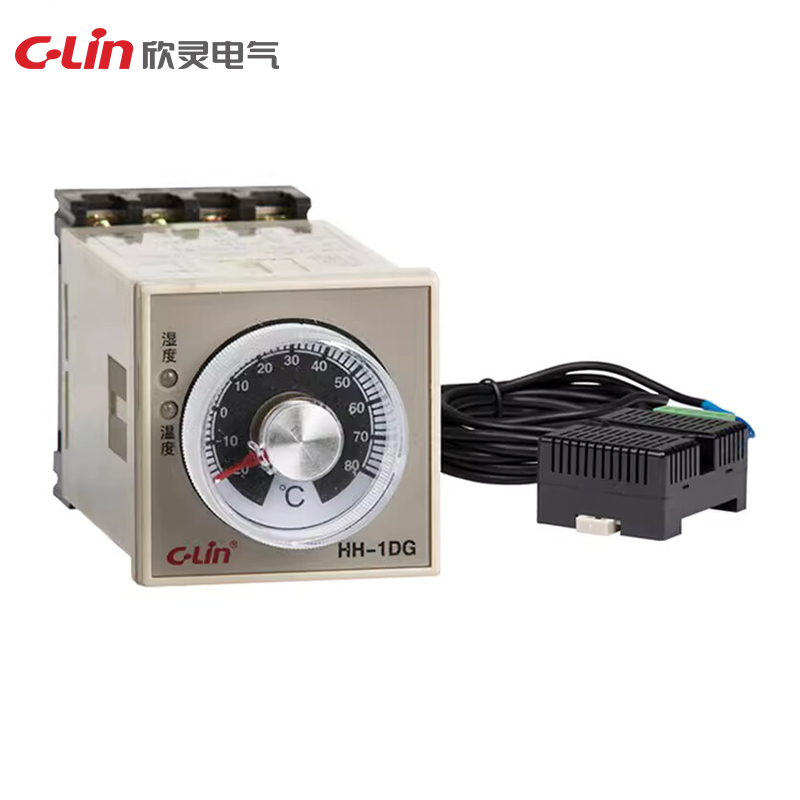

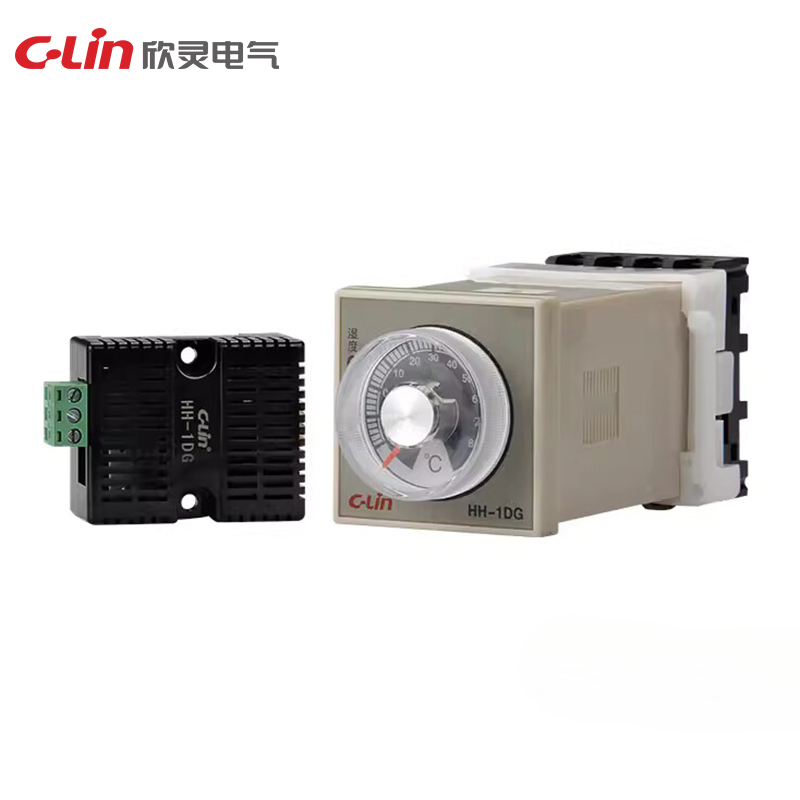

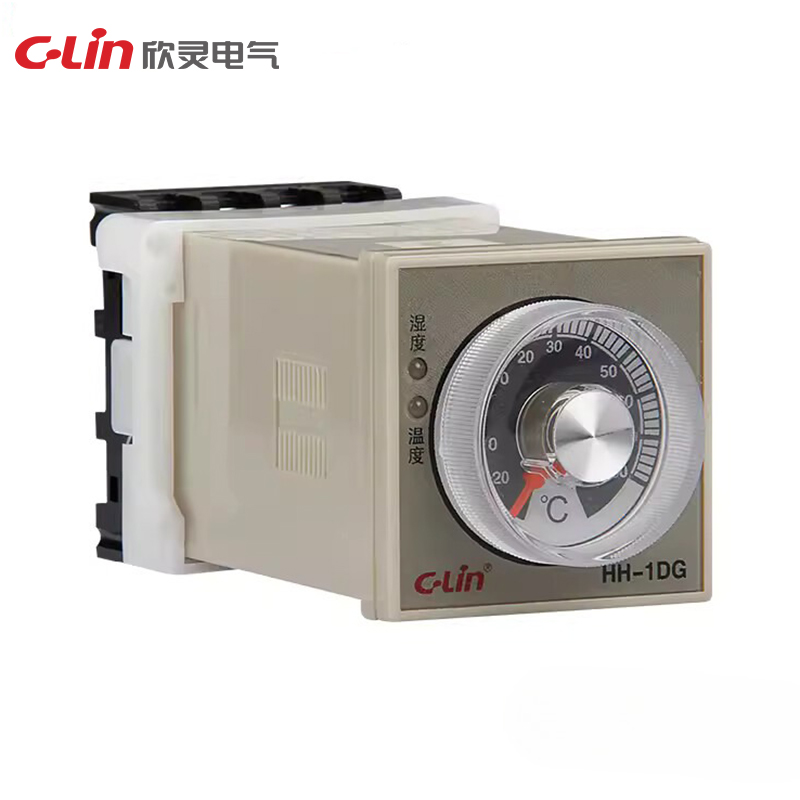

HH-1DG
Model
HH-1DG
Supply voltage
AC220V power consumption ≤ 2W
Control mode
Heating and dehumidification, cooling and dehumidification
Control range
Dehumidification start for ambient humidity ≥ 93% RH
Dehumidification stop for ambient humidity ≤ 75% RH
Temperature can be set through potentiometer (hysteresis 5°C )
Contact capacity
5A AC220V (resistive)
Dimension
48×48×114mm
Hole size
45×45mm
Installation method
Panel type, DIN rail type
Typical application
Used for temperature and humidity control of distribution cabinets,
substations and switchgear assemblies etc.
