Intelligent Dehumidifier HCS Series

Input specifications: 1-channel temperature and humidity input module (built-in)
Measurement range: Temperature: -19℃～ 99℃ Humidity: 0%～ 99% RH
Basic error: Temperature: +1.5℃ (0℃～ 100℃) Humidity: +5% RH (10%～ 99%)
Resolution: Temperature 1℃, Humidity 1%RH
Working power: 220VAC, 50/60Hz, default dehumidification power is 15W, please specify if you need other power
Recommended dehumidification space: 0.5～1m3
Working power: temperature 0～50℃, humidity ≤85% RH in non-corrosive places
Pipe length: high temperature resistant silicone tube, standard length 1 meter, other sizes please specify when ordering

Working power supply: 220VAC, 50Hz, standby power consumption 5VA
Measurement range: Temperature: -19℃～ 99℃ Humidity: 0%～ 99% RH
Basic error: Temperature: ±0.5℃ (10℃～50℃) ±1.5℃ (0℃～99℃) Humidity: ±3% RH (10% RH ～ 90% RH) ±5% RH (0% RH ～ 99% RH)
Resolution: Temperature 1℃, Humidity 1%RH
Control mode: Humidity: high humidity control; low temperature or high temperature control (optional) Temperature output 1 relay output (passive), 250VAC/3A or 30VDC/3A
Fault output: one passive fault output
Communication method: RS485 communication (modbus protocol)
Working environment: temperature 0～50℃, humidity ≤ 85% RH in non-corrosive occasions Working water output Default dehumidification power 30W, please specify if you need other powers. Recommended dehumidification space 1 ~ 2 m3
Pipe length: high temperature resistant silicone tube, standard length 1 meter. Please specify other sizes when ordering

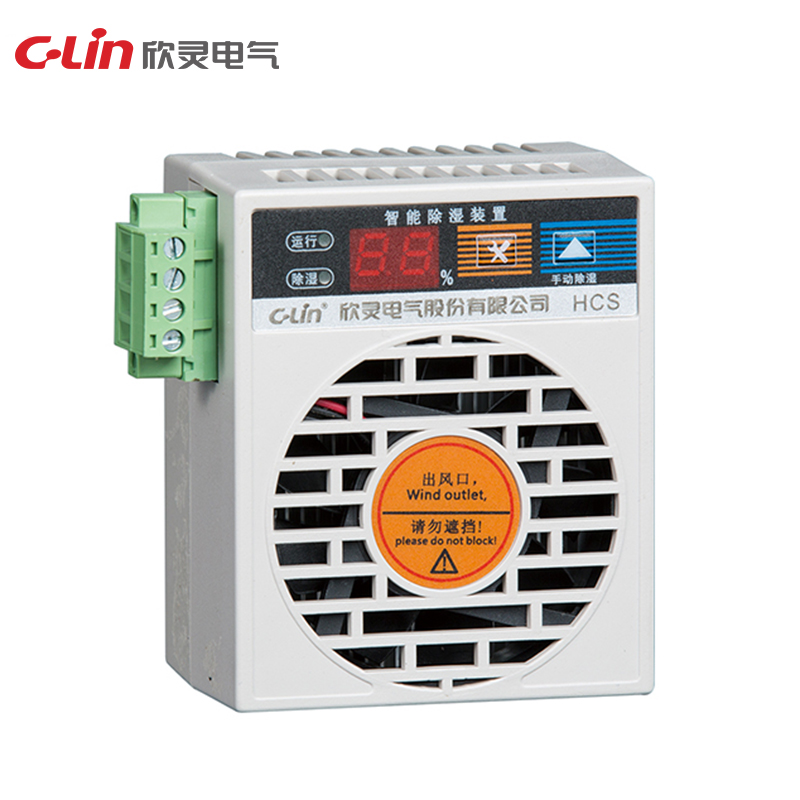

HCS-15

Model	HCS-15
Input spec.	1-circuit temperature and humidity input module (built-in)
Measuring range	Temp.: -19°C~99°C Humidity: 0%~ 99% RH
Basic error	Temp.: +1.5°C(0°C~ 100°C), Humidity: +5% RH(10%~99% )
Resolution	Temp.: 1°C Humidity: 1%RH
Supply voltage	20VAC, 50/60Hz, default dehumidification power 15W, please specify for any other power
Recommended dehumidification space	0.5~1m³
Work environment	Non-corrosive environment with temperature of 0~50°C and humidity ≤ 85% RH
Pipe length	High temperature resistant silicone hose, 1m standard length, please specify for any other size

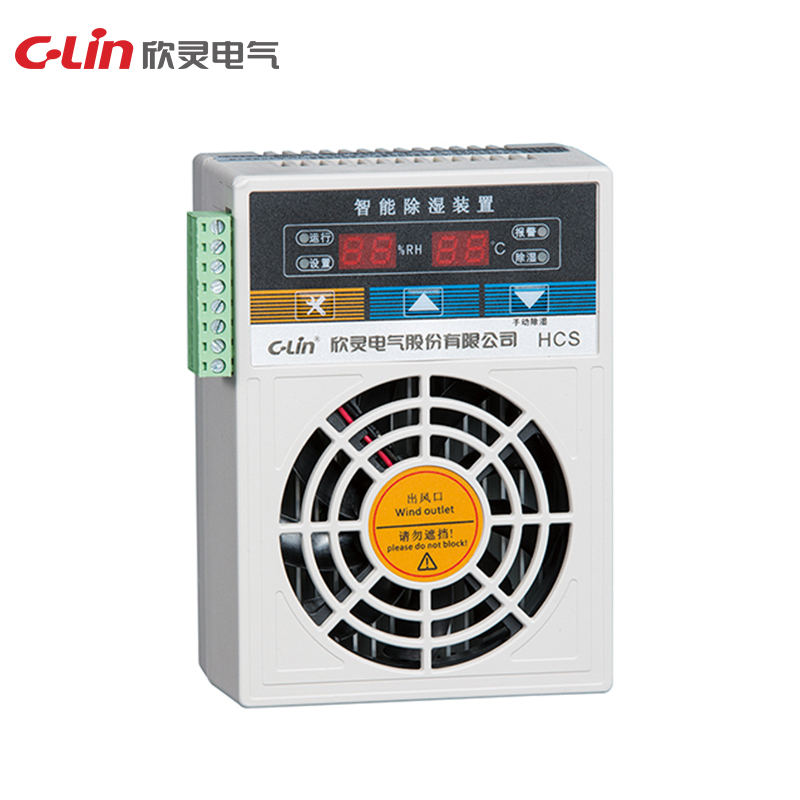

HCS-30

Model	HCS-30
Supply voltage	220VAC, 50Hz, standby power consumption 5VA
Measuring range	Temp.: -19°C~99°C; humidity: 0%~99% RH
Basic error	Temp.: ±0.5°C (10°C~50°C)±1.5°C (0°C~99°C) Humidity: ±3% RH(10% RH~90% RH) ±5% RH(0% RH~99% RH)
Resolution	Temp.: 1°C , humidity: 1% RH
Control mode	Humidity: high humidity control; temperature: low or high temperature control (optional); temperature output: 1-circuit relay output (passive), 250VAC/3A or 30VDC/3A
Fault output	One-circuit passive fault output
Comm. mode	RS485 comm. (Modbus protocol)
Work environment	Non-corrosive environment with temperature of 0~50°C and humidity ≤ 85% RH
Working condition water output	Default dehumidification power 30W, please specify for any other power
Recommended dehumidification space	1~2m³
Pipe length	High temperature resistant silicone hose, 1m standard length, please specify for any other size
