Single-Circuit Intelligent Meter HWP Series

Measuring signal: Thermocouple: S, B, K, E, T, J, etc.
Thermal resistor: Pt100, Cu50, etc.
Current signal: 0-10mA, 4-20mA
Resistance signal: 0-400Ω
Voltage signal: 0-5V, 0-10mV
Control mode: relay contact on-off control
Working power supply: AC90~265V
Transmitter output:
(optional) 0~5V (load RL ≥ 250KΩ);
0~10mA(≤750Ω); 4~20mA(≤500Ω)
Feed output: 24VDC(30mA)
Dimensions: 96×96×112mm
Opening size: 92×92mm
Installation method: panel type

Measuring signal: thermocouple, thermal resistor; standard current, voltage, resistance signal
Transmitter output: 0-5V (load RL≥250KΩ);
0-10mA (≤750Ω); 4-20mA (≤500Ω)
Output mode: ① relay output; ②4-20mA
Alarm mode: two-way relay contact control (C803);
Four-way relay contact control (C804)
Feed output: 24VDC (30mA)
Dimensions: 160×80×94mm
Opening size: 152×76mm
Working power supply: AC220V
Installation method: panel type

Measuring signal: thermocouple, thermal resistor; standard current, voltage, resistance signal
Transmitter output: 0-5V (load RL≥250KΩ);
0-10mA (≤750Ω); 4-20mA (≤500Ω)
Output mode: ① relay output; ② 4-20mA
Alarm mode: two-way relay contact control (C703);
Four-way relay contact control (C704)
Feed output: 24VDC (30mA)
Dimensions: 72×72×112mm
Opening size: 68×68mm
Working power supply: AC220V
Installation method: panel type

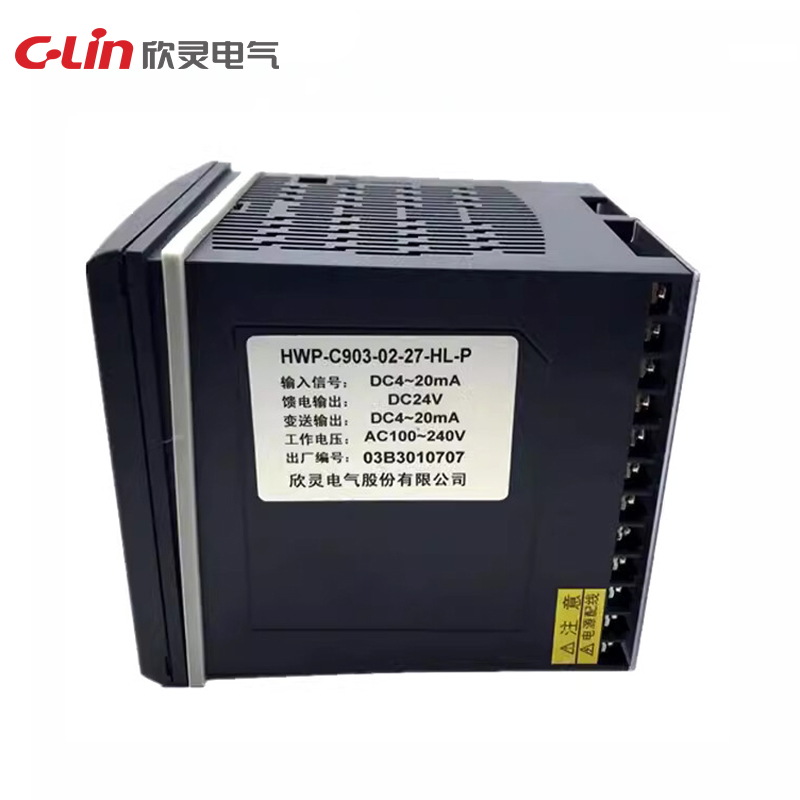

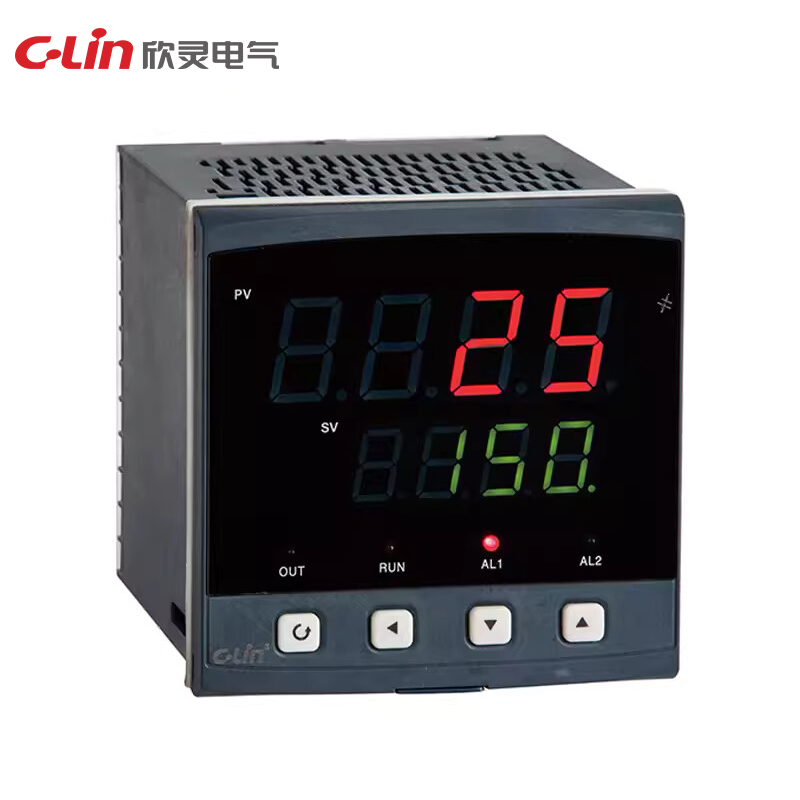

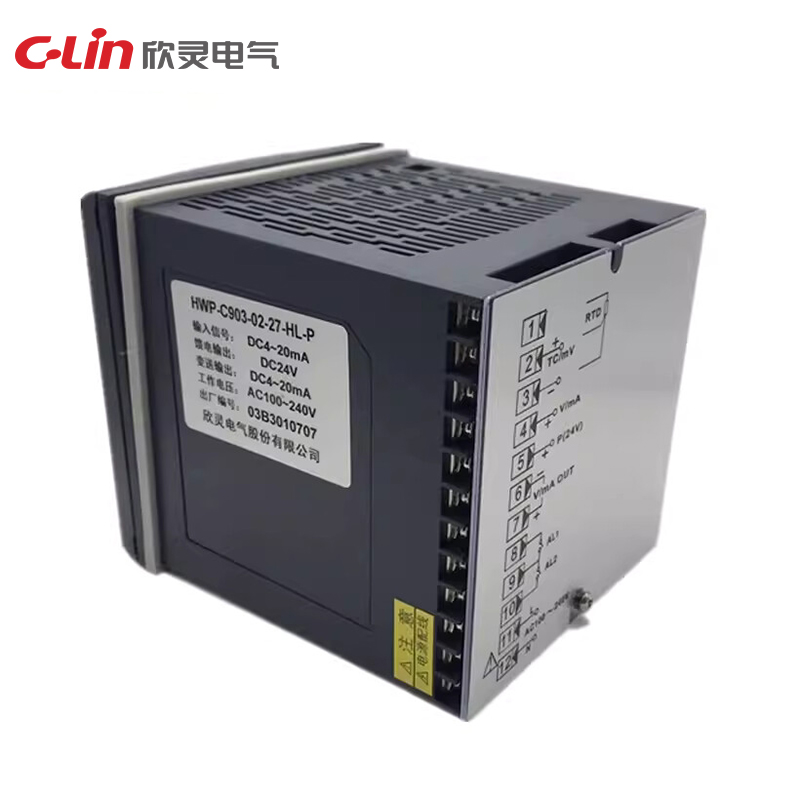

HWP-C903

HWP series
Model	HWP-C703-01-23-HL-P	HWP-C703-02-23-HL-P	HWP-C704-01-2H2L-P	HWP-C803-01-23-HL-P	HWP-C803-02-23-HL-P	HWP-C903-01-23-HL-P	HWP-C903-02-23-HL-P	HWP-C904-01-2H2L-P
Measurement signal	Thermocouples, thermal resistances, standard current, voltage, and resistance signal					Thermocouple: S, B, K, E, T, J etc Thermal resistance: Pt100, Cu50 etc Current signal: 0~10mA, 4~20mA Resistance signal: 0~400Ω Voltage signal: 0~5V, 0~10V
Transmission output	0~5V (load RL ≥ 250KΩ); 0~10mA( ≤ 750Ω); 4~20mA( ≤ 500Ω)
Output method	① Relay output ② 4~20mA					Relay contact on-off control
Alarm mode	C703/C803: 2-circuit relay contact control; C804/C804: 4-circuit relay contact control (C704)					/
Feed output	24VDC(30mA)
Dimension	72×72×112mm			160×80×94mm		96×96×112mm
Hole size	68×68mm			152×76mm		92×92mm
Supply voltage	AC220V					AC90~265V
Installation method	Panel type

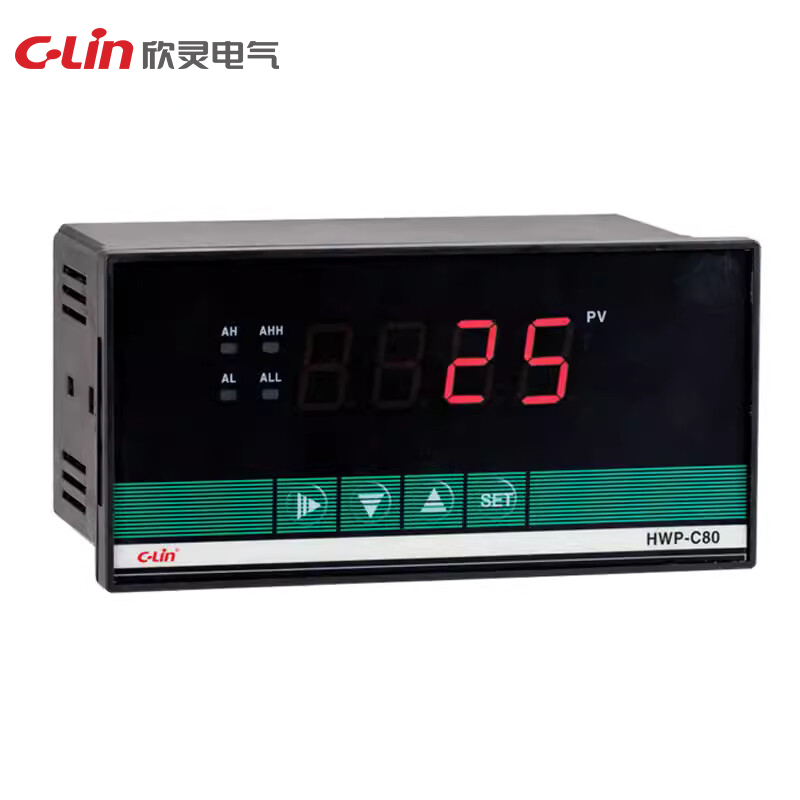

HWP-C803

HWP series
Model	HWP-C703-01-23-HL-P	HWP-C703-02-23-HL-P	HWP-C704-01-2H2L-P	HWP-C803-01-23-HL-P	HWP-C803-02-23-HL-P	HWP-C903-01-23-HL-P	HWP-C903-02-23-HL-P	HWP-C904-01-2H2L-P
Measurement signal	Thermocouples, thermal resistances, standard current, voltage, and resistance signal					Thermocouple: S, B, K, E, T, J etc Thermal resistance: Pt100, Cu50 etc Current signal: 0~10mA, 4~20mA Resistance signal: 0~400Ω Voltage signal: 0~5V, 0~10V
Transmission output	0~5V (load RL ≥ 250KΩ); 0~10mA( ≤ 750Ω); 4~20mA( ≤ 500Ω)
Output method	① Relay output ② 4~20mA					Relay contact on-off control
Alarm mode	C703/C803: 2-circuit relay contact control; C804/C804: 4-circuit relay contact control (C704)					/
Feed output	24VDC(30mA)
Dimension	72×72×112mm			160×80×94mm		96×96×112mm
Hole size	68×68mm			152×76mm		92×92mm
Supply voltage	AC220V					AC90~265V
Installation method	Panel type

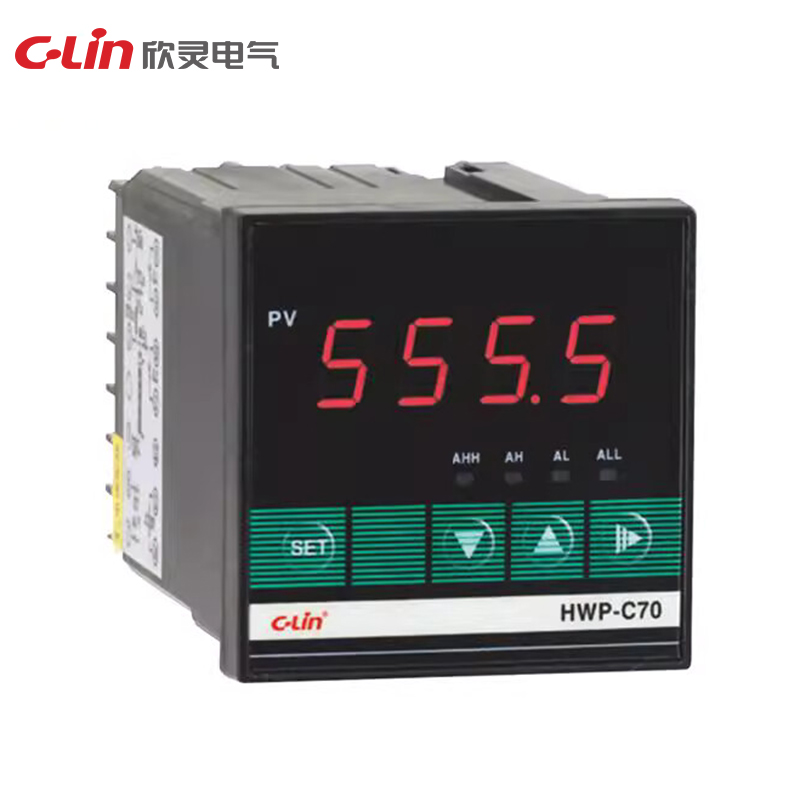

HWP-C703

HWP series
Model	HWP-C703-01-23-HL-P	HWP-C703-02-23-HL-P	HWP-C704-01-2H2L-P	HWP-C803-01-23-HL-P	HWP-C803-02-23-HL-P	HWP-C903-01-23-HL-P	HWP-C903-02-23-HL-P	HWP-C904-01-2H2L-P
Measurement signal	Thermocouples, thermal resistances, standard current, voltage, and resistance signal					Thermocouple: S, B, K, E, T, J etc Thermal resistance: Pt100, Cu50 etc Current signal: 0~10mA, 4~20mA Resistance signal: 0~400Ω Voltage signal: 0~5V, 0~10V
Transmission output	0~5V (load RL ≥ 250KΩ); 0~10mA( ≤ 750Ω); 4~20mA( ≤ 500Ω)
Output method	① Relay output ② 4~20mA					Relay contact on-off control
Alarm mode	C703/C803: 2-circuit relay contact control; C804/C804: 4-circuit relay contact control (C704)					/
Feed output	24VDC(30mA)
Dimension	72×72×112mm			160×80×94mm		96×96×112mm
Hole size	68×68mm			152×76mm		92×92mm
Supply voltage	AC220V					AC90~265V
Installation method	Panel type
