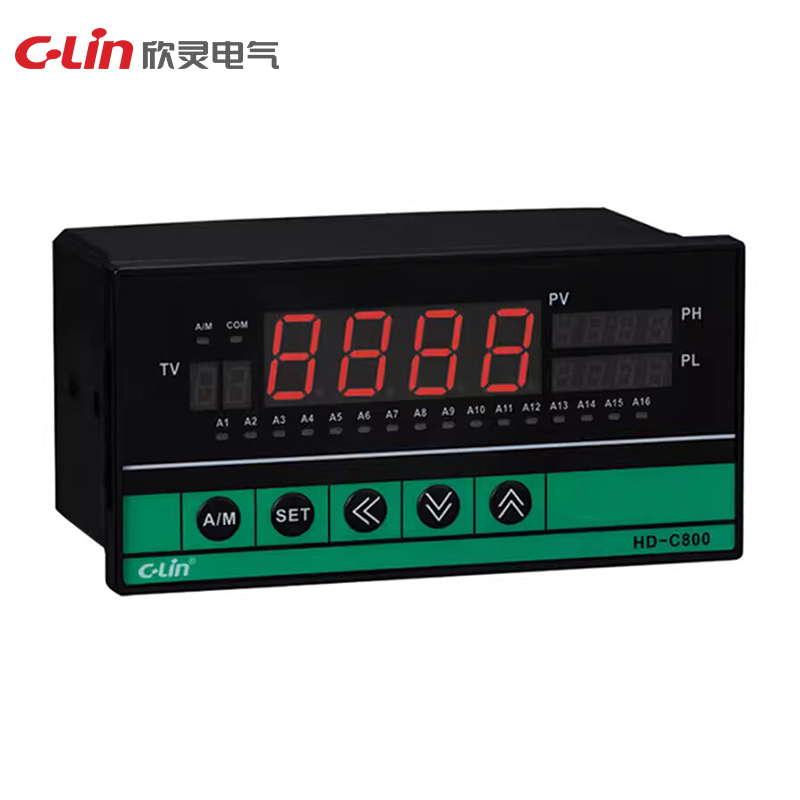

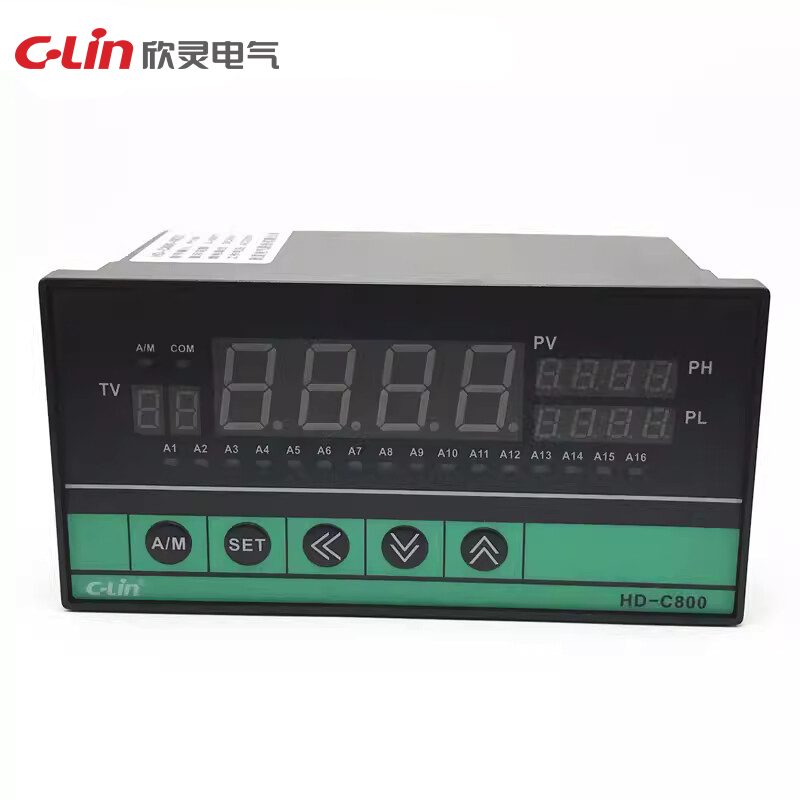

Skip to content | HD series | ||||

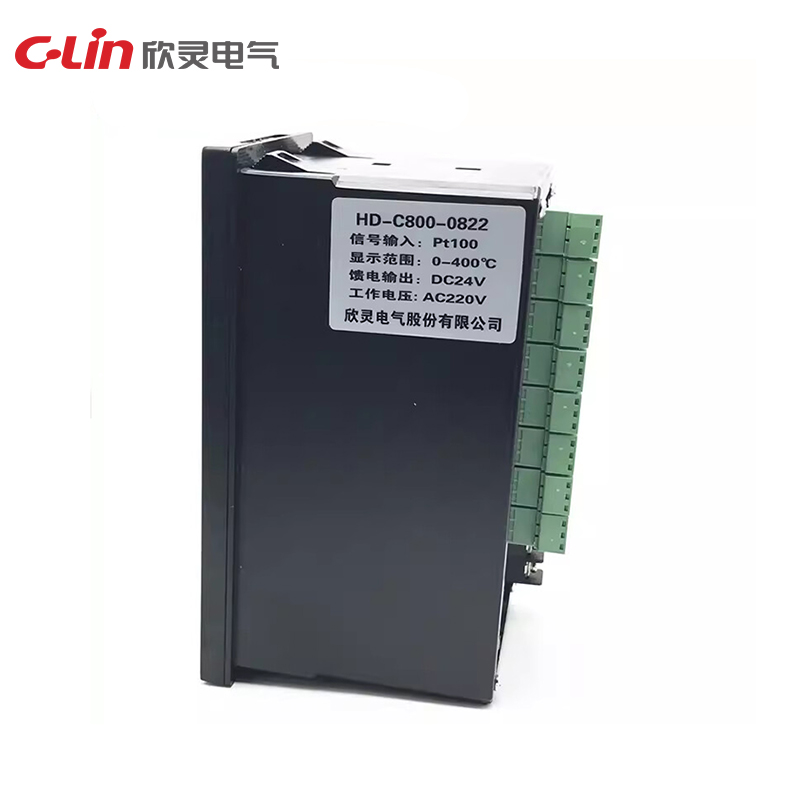

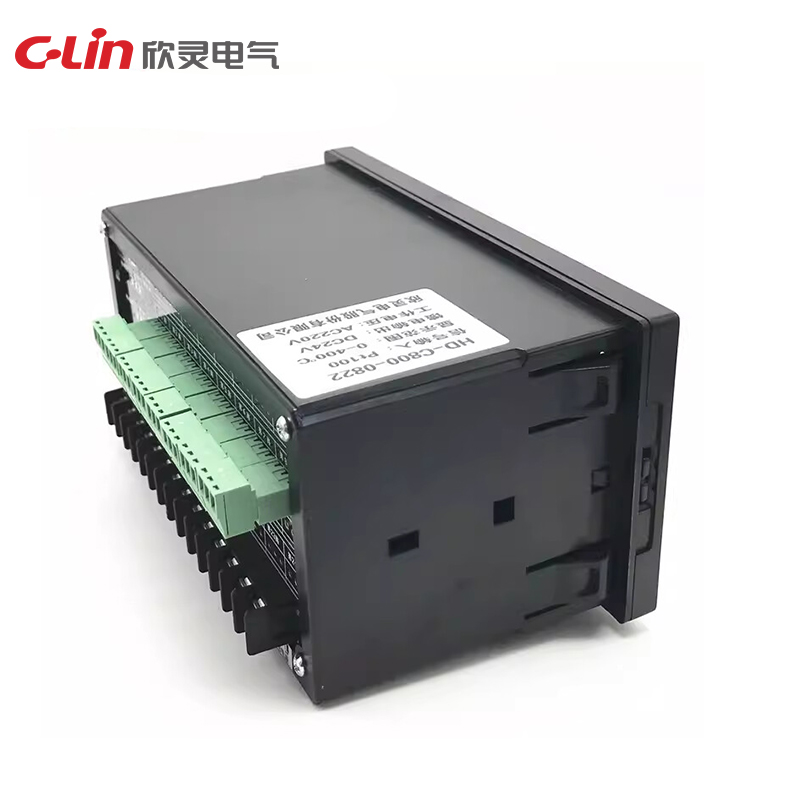

| Model | HD-C800-0821 | HD-C800-0822 | HD-C800-0821-C4 | HD-C800-0822-C4 |
| Module | (1~8 temperature display channels can be set, with two sets of alarm relays, without RS485 module) | (with RS485 module) | ||
| Measurement signal | Thermocouple: K, E | Thermal resistance: Pt100, Cu50 | Thermocouple: K, E | Thermal resistance: Pt100, Cu50 |

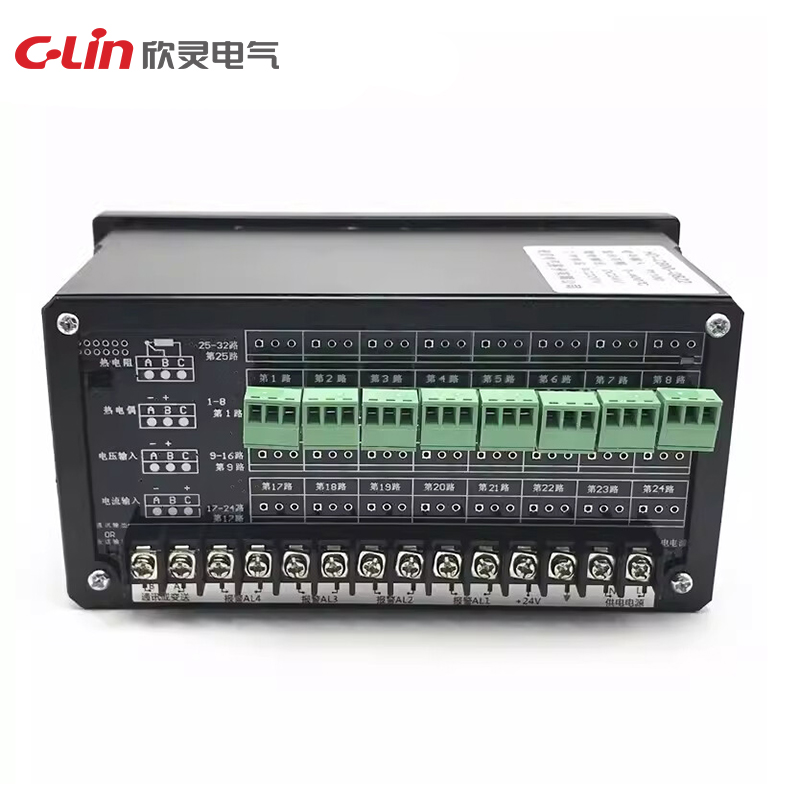

| Itinerant detecting point circuit | 1~8 circuit | |||
| Itinerant detecting method | Automatic and manual | |||
| Itinerant detecting time | Automatic itinerant detecting time 0-100s | |||
| Alarm mode | Upper limit alarm, lower limit alarm | |||
| Alarm output | Relay contact (control hysteresis adjustable) | |||
| Contact capacity | Passive AC 220V 3A (resistive load) | |||
| Comm. interface | RS485 (optional) | |||
| Supply voltage | AC 220V | |||
| Dimension | 160×80×103.5mm | |||
| Hole size | 152×76mm | |||
| Installation method | Panel type | |||
| Typical application | Multi-point temperature monitoring for grain depots, switchgear assemblies, motor protection places etc. | |||
